Major Tech 5kV High Voltage Insulation Tester | K3127

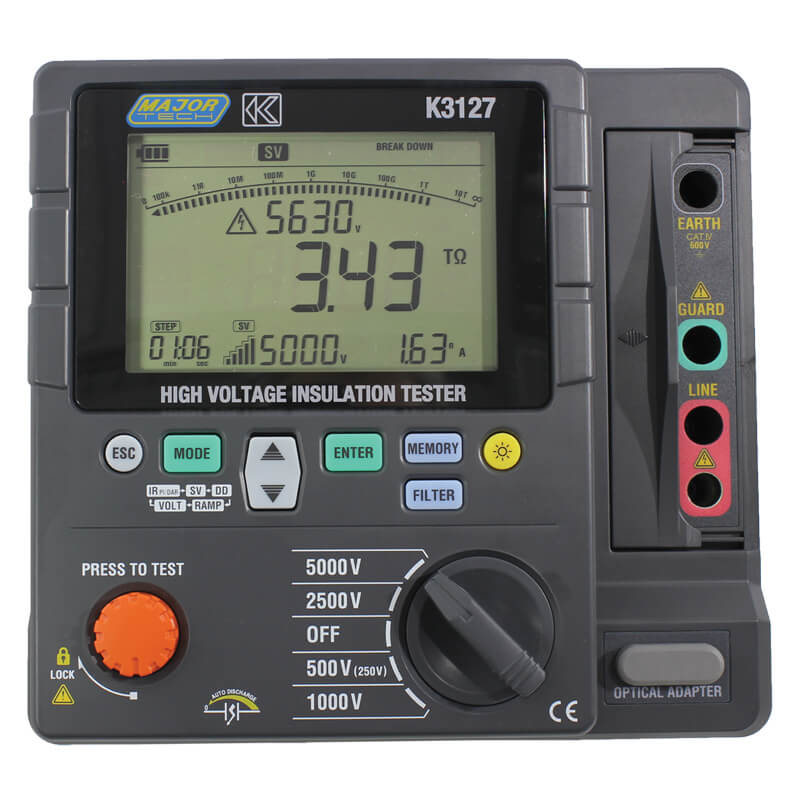

DetailsThe K3127 is microprocessor controlled and is capable of performing tests from 250V up to 5000V, and will automatically discharge the circuit after the test has been completed. The meter is a battery powered instrument and operates on a simple and clear basis. Other features include Insulation Resistance 10TΩ, Short-Circuit Current 5mA, IR, PI, DAR, DD, SV, RAMP. The K3127 has the capabilities of being a diagnostic tool and is intended for testing insulation on Rotating Machines, Transformers, Cables, High Voltage Generators, Electrical Circuits and Surge Arresters. These readings are displayed on the large LCD display with a bargraph together with the actual output voltage thus making it easy for the user to read the results. Once the meter test is completed it will automatically discharge the apparatus under test and indicate the discharge voltage on the display while the meter is still on.
Specifications
Specifications:| Function | Range | Measuring Range | Resolution | Accuracy |
| Insulation resistance 250V | 250V | 0.0 to 9.99GΩ | 0.1MΩ | ±(5.0% +3 Digits) |
| Insulation resistance 500V | 500V | 0.0 to 99.9GΩ | 0.1MΩ | ± (5.0% + 3 Digits) |
| Insulation resistance 1000V | 1000V | 0 to 199GΩ | 1GΩ | ± (5.0% + 3 Digits) |
| Insulation resistance 2500V | 2500V | 0 to 999GΩ | 1GΩ | ± (5.0% + 3 Digits) |
| Insulation resistance 5000V | 5000V | 0 to 9.99TΩ | 1GΩ | ± (5.0% + 3 Digits) |
| DC voltage | 30V- 600V |
| 1V | ± (2.0% + 3 Digits) |
| AC voltage | 30V - 600V |
| 1V | ± (2.0% + 3 Digits) |
| Capacitance measurement | 5.0nF - 50.0μF |
| ± (5.0% + 5 Digits) | |
| Overrange indication | Yes | |||
| Short circuit current | 1.5mA | |||
| Current measurement Range | ± (10%) | |||
| AC Bandwidth | 50.0Hz to 60.0Hz | |||
| Digital Display | Large Graphical Display | |||
| Polarization index | Yes | |||
| Dielectric absorption ratio | Yes | |||
| Auto discharge | Yes | |||
| Bargraph | Yes | |||
| Back Light | Yes | |||

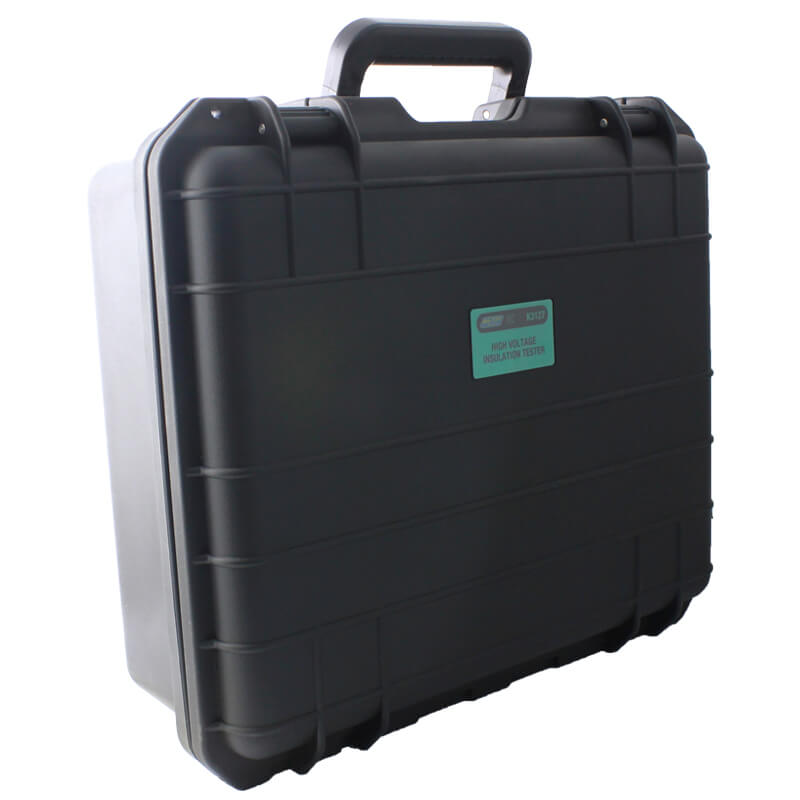

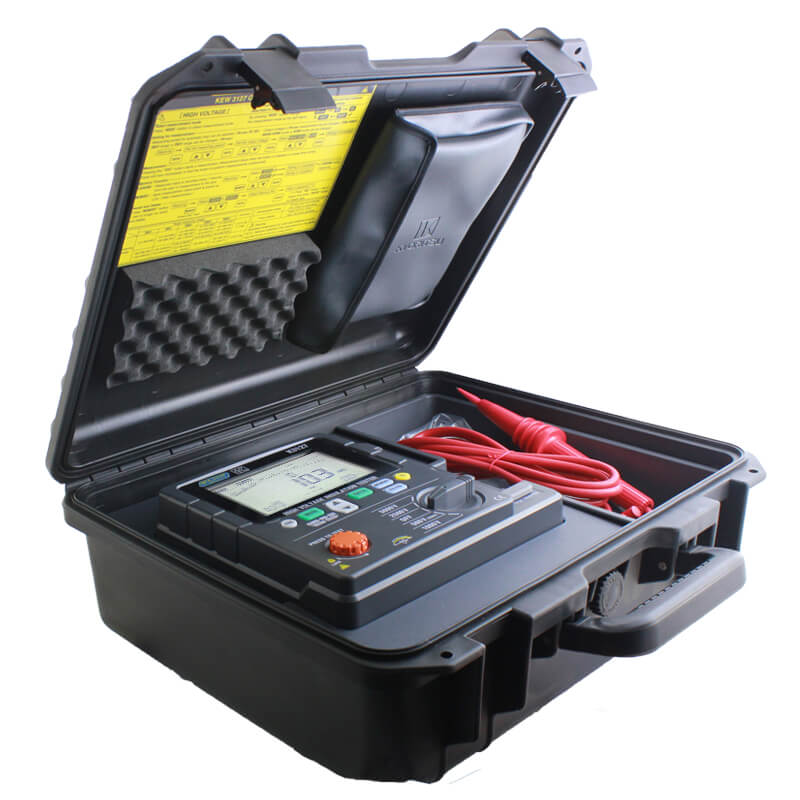

| Enclosure | Robust moulded case | |||
| Low battery indication | Yes | |||

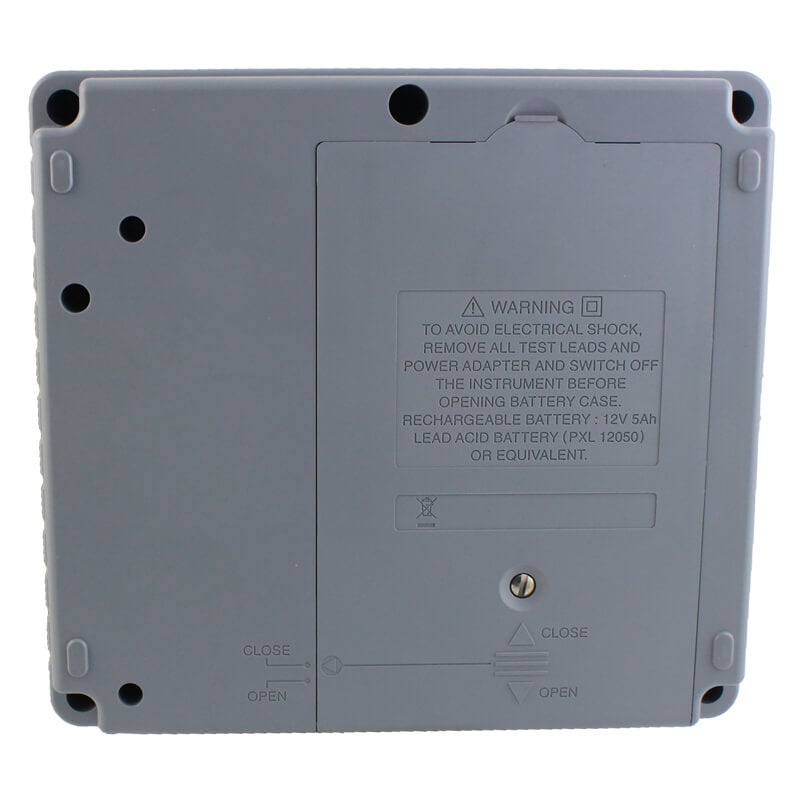

| Power source | 8 x LR14 | |||
| Weight | 1.9kG | |||
| Dimensions | 177 x 226 x 100mm | |||
| Safety Specs | IEC61010-1 CAT III 600V and CAT IV 300V |
Supplier SKU: K3127
