Major Tech BT 600A AC/DC Thermometer Clamp Meter | MT767

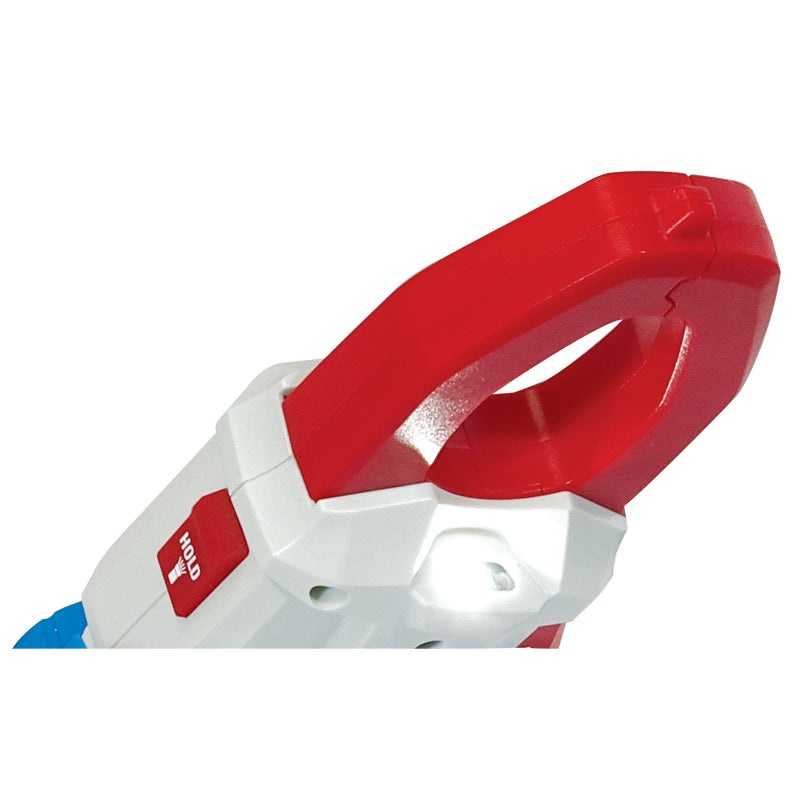

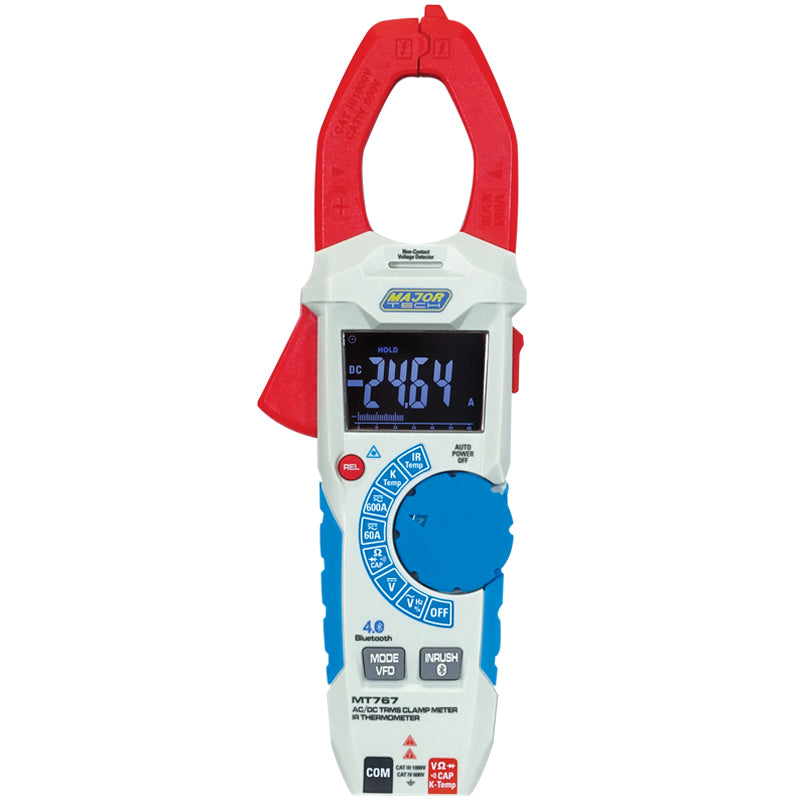

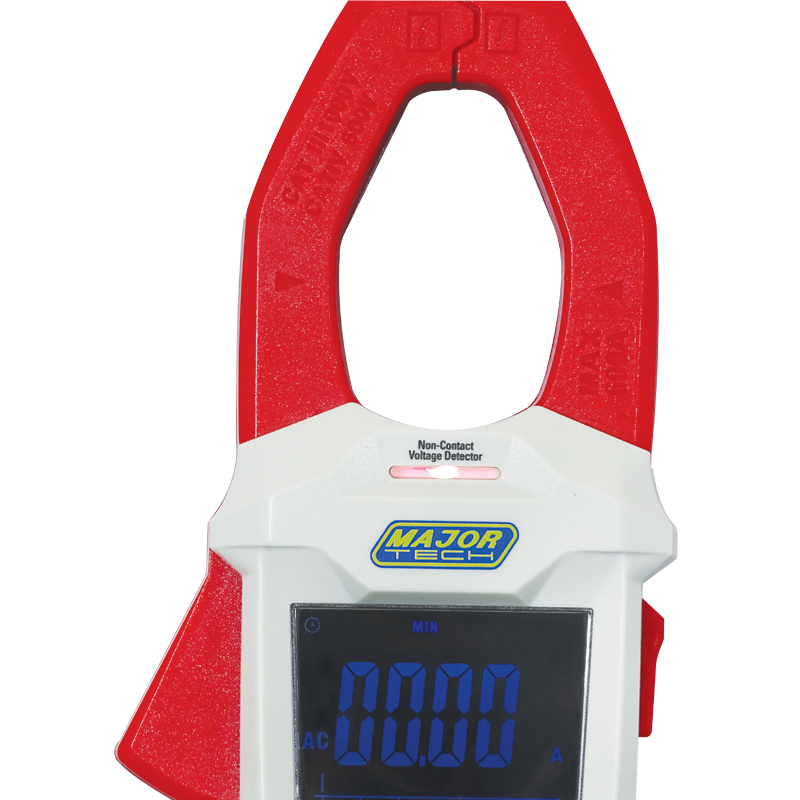

DetailsThe MT767 is a CAT IV 600V True RMS 600A AC/DC digital clamp meter incorporating an Infrared Thermometer. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organizing and sharing recordings. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30 ° C to 350 ° C, and there is a K-Type thermometer input for measurements up to 1000 ° C. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, MAX/MIN, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC Current | 0.01A – 600A | 10mA | ± (2.8% + 5 Digits) |
| AC Current | 0.001A – 600A | 10mA | ± (1.5% + 10 Digits) |
| DC Voltage | 1mV – 1000V | 1mV | ± (0.8% + 4 Digits) |
| AC Voltage | 0.001V – 1000V | 1mV | ± (1.5% + 5 Digits) |
| Resistance | 0.1Ω – 60MΩ | 0.1Ω | ± (2.0% + 5 Digits) |
| Frequency | 0.001Hz – 9.999kHz | 1mHz | ± (1.5% + 6 Digits) |
| Capacitance | 0.1nF – 99.99mF | 0.1nF | ± (4% + 6 Digits) |
| Temperature K-Type Probe | -20 to 1000°C | 0.1°C | ± (3.0% +3°C) |
| IR Temperature D:S 4:1 | -30.0 to 350°C | 0.1°C | ± (2.0% +2°C) |
| Duty Cycle | 20% to 80% | 0,1% | ± (1.2% +5) |
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 50 – 1000Hz | ||
| Digital Display | 6000 | ||
| Bargraph | Yes | ||
| Bluetooth | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Jaw size | 33mm | ||
| Input impedance | >10MΩ DCV & >10MΩ VAC | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double injection moulding | ||
| Low battery indication | Yes | ||
| Power source | 3 x LR03 | ||
| Weight | 350g | ||
| Dimensions | 239 x 66 x 44mm |
Supplier SKU: MT767
