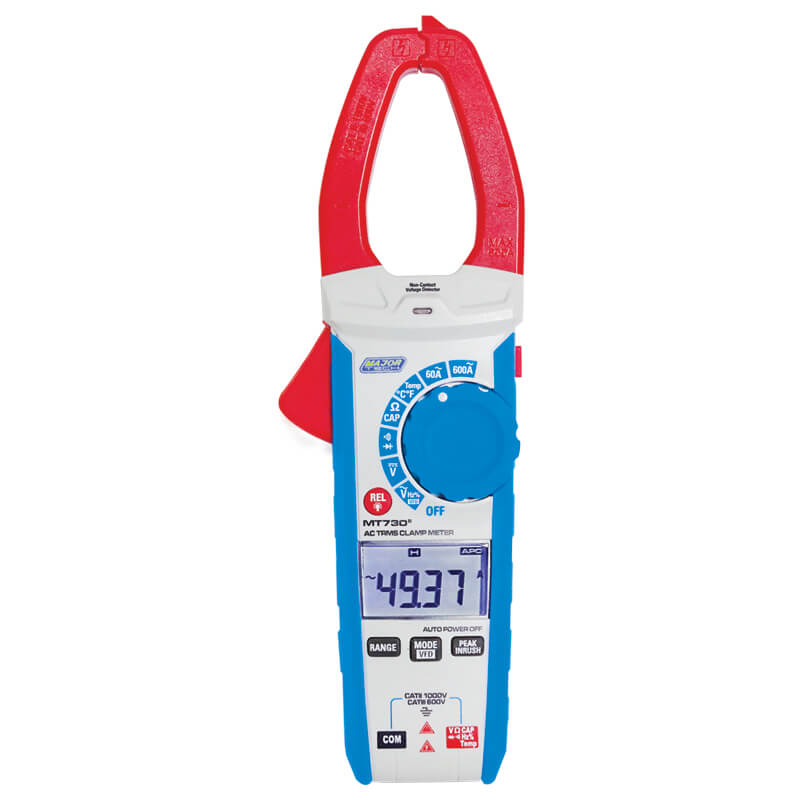

Major Tech 600A AC TRMS Clamp Meter | MT730

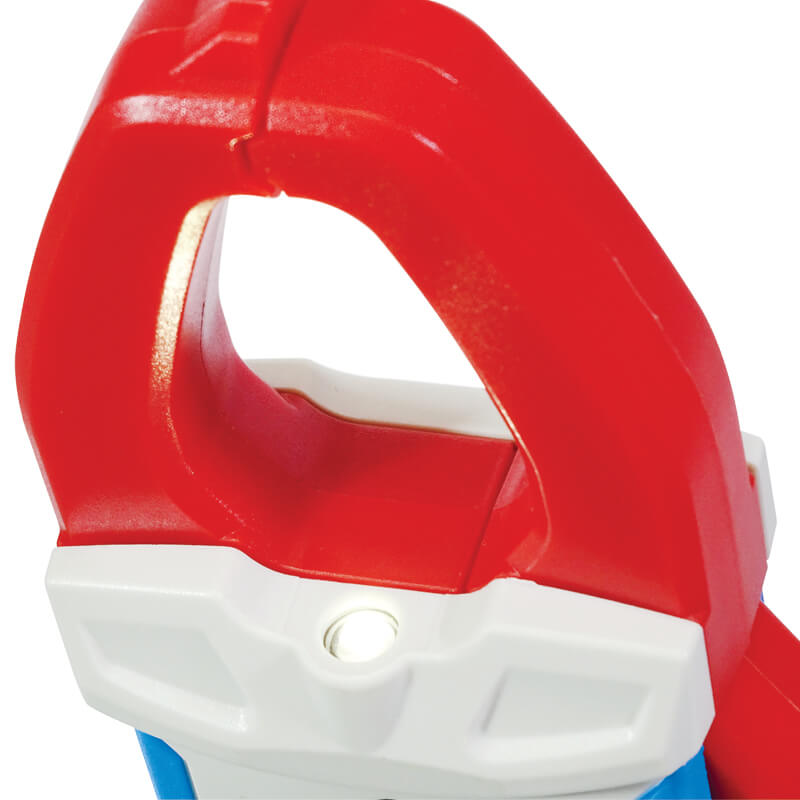

DetailsThe MT730 is a CAT III 600V, 6000 count True RMS 600A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency , capacitance and resistance measurements, 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero, DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 0.01A – 600.0A | 10mA | ±(2.0% + 8 Digits) |
| DC Voltage | 1mV – 1000V | 1mV | ±(0.9% + 3 Digits) |
| AC Voltage | 1mV – 1000V | 1mV | ±(1% + 5 Digits) |
| Resistance | 0.1Ω – 60.00MΩ | 0.1Ω | ±(1.5% + 2 Digits) |
| Frequency | 10Hz – 100kHz | 1HZ | ±(1.0% + 5 Digits) |
| Capacitance | 0.1nF – 99.99mF | 0.01nF | ±(3.0% + 5 Digits) |
| Temperature | -20 to 1000°C | 0.1°C | ±(3% + 3.0°C Digits) |
| Duty Cycle | 20.0% to 80.0% | 0.001 | ±(1.2% + 10 Digits) |
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 50 – 1000Hz | ||
| Digital Display | 6000 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Jaw Size | 33mm | ||
| Input Impedance | >10MΩ DCV & >10MΩ VAC | ||
| Min Max | Yes | ||
| Peak Hold | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double injection moulding | ||
| Low Battery Indication | Yes | ||
| Batteries | 3 x AAA | ||
| Weight | 318g | ||
| Dimensions | 239 x 72 x 40mm | ||
| Safety Specs | IEC61010-1 CAT III 600V |
