Major Tech 600V AC/DC True RMS Multimeter | MT870

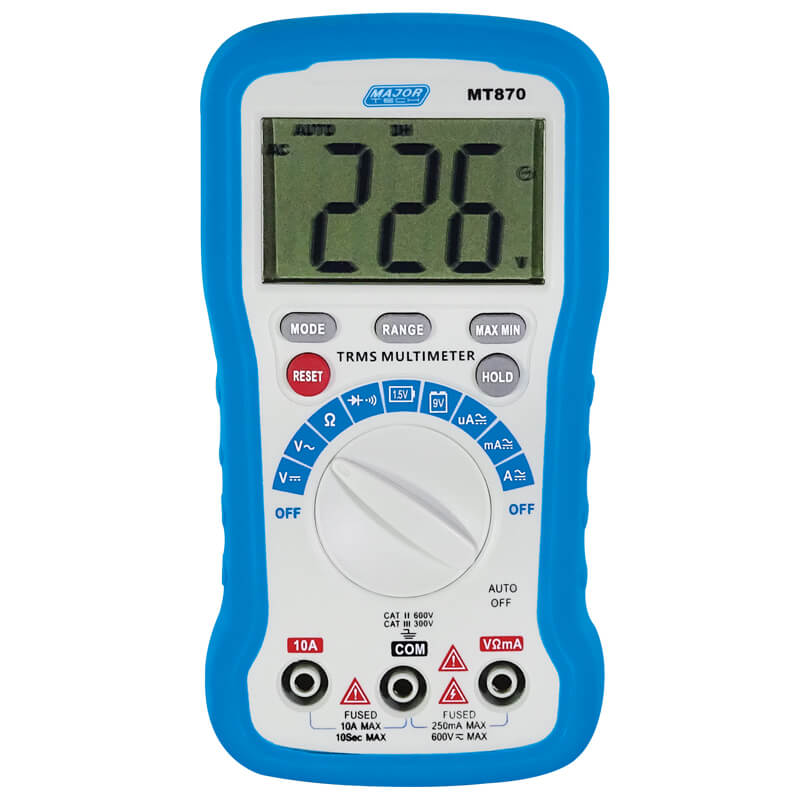

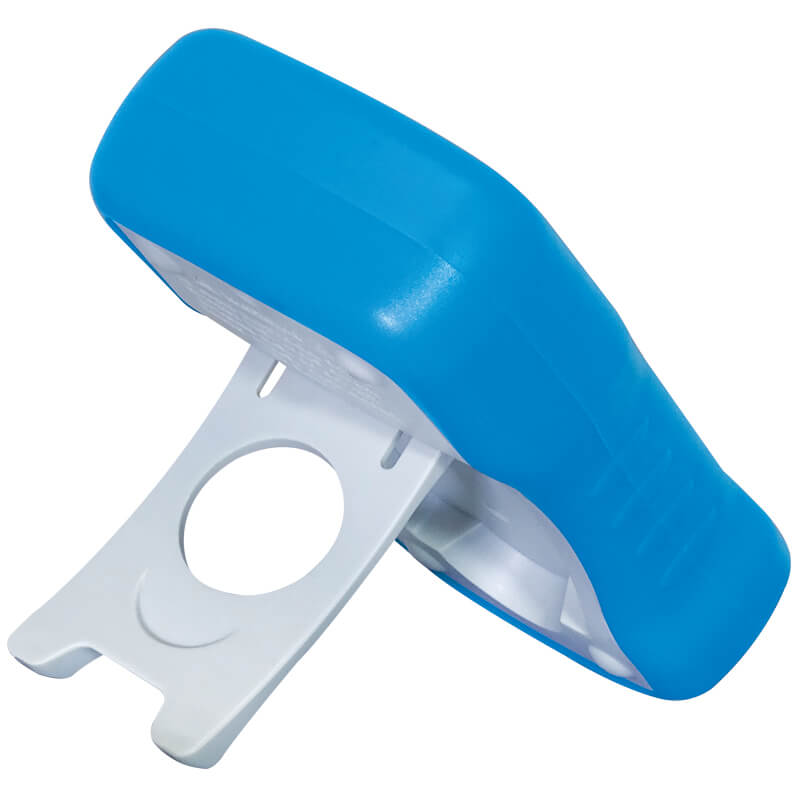

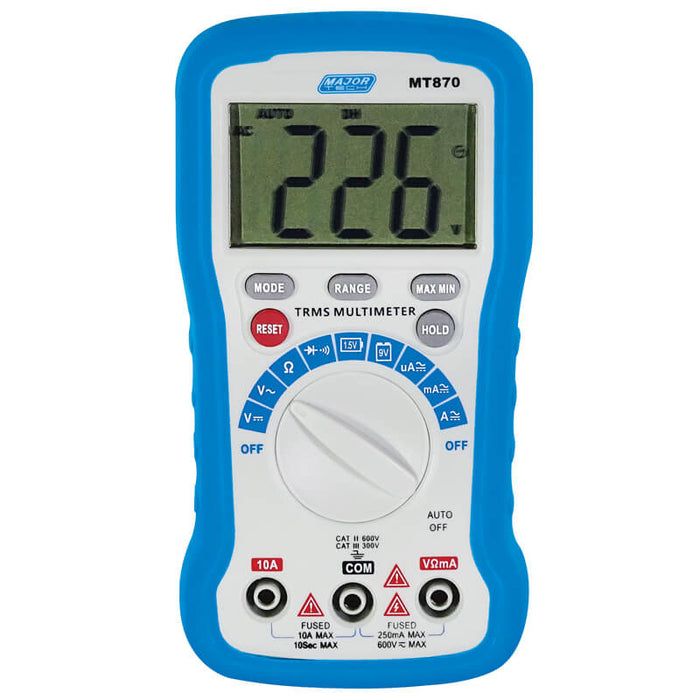

DetailsThe MT870 is a compact True RMS multimeter supplied with a rubber holster designed to be robust and drop proof. The meter has a 2000 count large easy to read display and is an auto ranging multimeter with the option of manual override. Measuring functions include AC and DC voltage, AC and DC current, resistance, continuity buzzer and diode test range. The AC and DC micro Amp ranges is suited for electronic measurements. The MT870 also offers the added convenience of 1.5V and 9V battery tests and a tilt stand. This meter meets the International Standard IEC 61010-1 CAT III 300V. The meter offers excellent performance and is ideal as a handy multimeter for electronic technicians and electricians, alarm installers and students studying electronics.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC Voltage | 0.1mV – 600V | 0.1mV | ±(0.5% + 2 Digits) |
| AC Voltage | 1mV – 600V | 1mV | ±(0.8% + 3 Digits) |
| DC Current | 0.1μA – 10A | 0.1μA | ±(1.2% + 2 Digits) |
| AC Current | 0.1μA – 10A | 0.1μA | ±(1.5% + 3 Digits) |
| Resistance | 0.1Ω – 20MΩ | 0.1Ω | ±(1.0% + 2 Digits) |
| True RMS Measurements | Yes | ||
| AC Bandwidth | 40Hz to 2KHz | ||
| Digital Display | 2000 | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Overrange Indication | Yes | ||
| Battery Test | 1.5V & 9V | ||
| Input Impedance | 10MΩ VDC & 10MΩ VAC | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Enclosure | Rubber holster | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AA | ||
| Dimensions | 150 x 100 x 36mm | ||
| Safety Specs | IEC61010-1 CAT II 600V |
Supplier SKU: MT870
Brand
Major Tech
Title
Major Tech 600V AC/DC True RMS Multimeter | MT870
