Major Tech 600V AC/DC TRMS Manual Ranging Multimeter | MT874

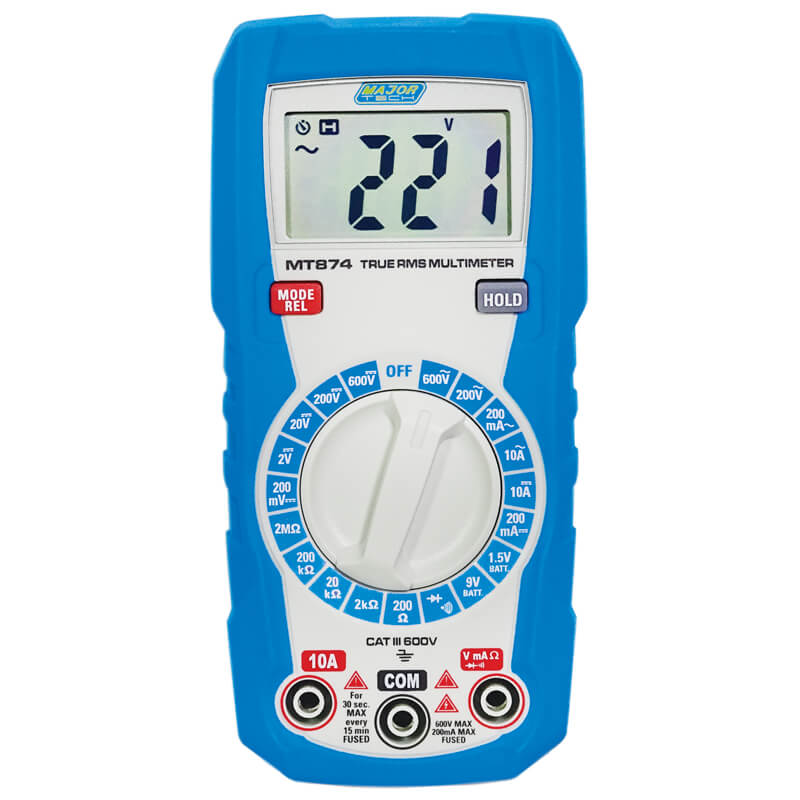

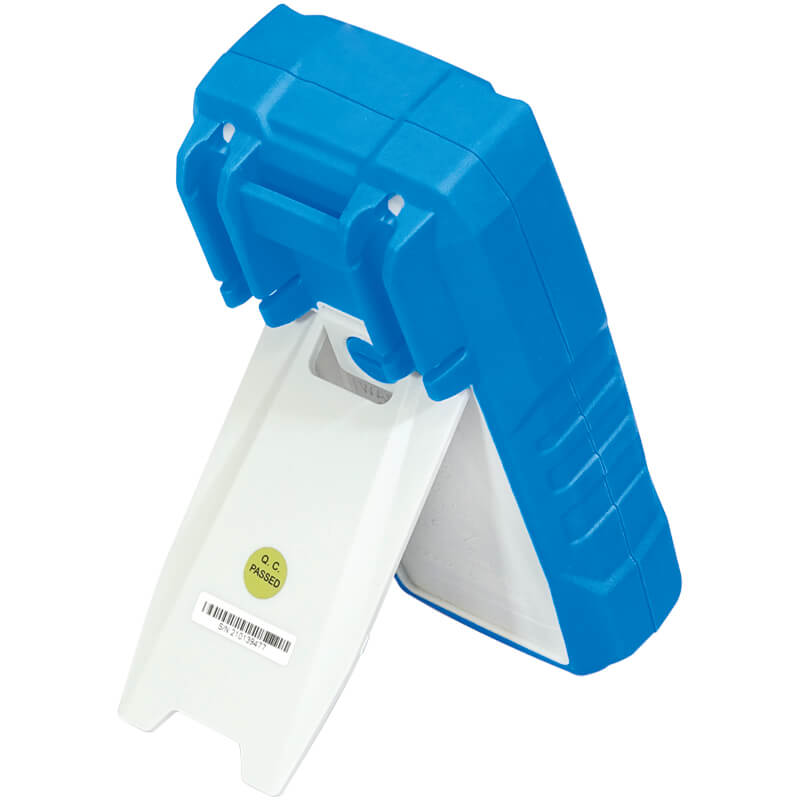

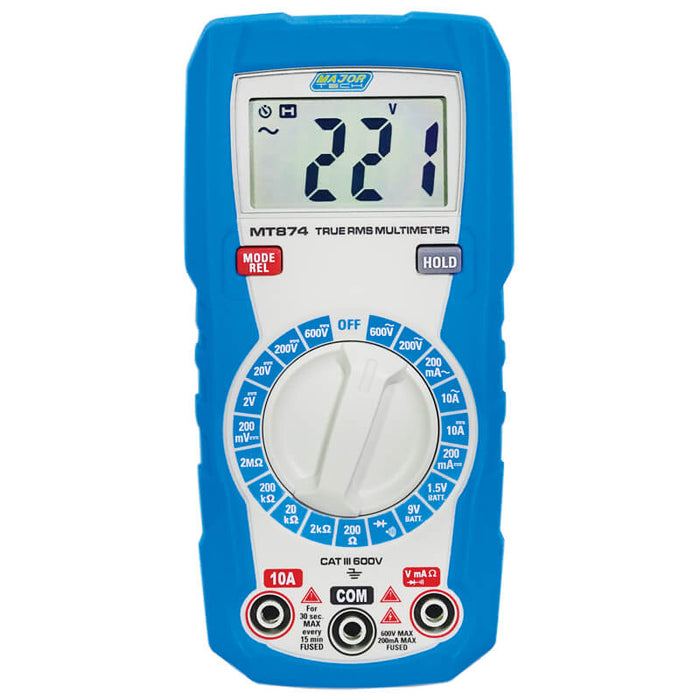

DetailsThe MT874 is a durable and attractive compact True RMS multimeter with a high contrast LCD display with detailed display icons. Equipped with 7 measuring functions and 20 ranges, each test position is quickly and easily selected with a simple turn of the selector switch. The meter has a double moulded rubber housing and has IEC 61010-1 CAT III 600V safety rating. The sturdy structure is designed to withstand the rugged environment of a work site and has been drop tested up to 2 meters. The meter has a built-in tilt stand for hands free convenience as well as low battery indication and auto power off. This meter is ideally suited for everyday use by electricians, electronic technicians, the air conditioning industry and DIY users.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC voltage | 0.1mV – 600V | 0.1mV | ±(0.5% +5 Digits) |
| AC voltage | 0.1V – 600V | 0.1V | ± (1.2% + 10 Digits) |
| DC Current | 0.1V – 600V | 0.1mA | ± (1.2% + 5 Digits) |
| AC Current | 0.1mA – 10A | 0.1mA | ± (1.2% + 5 Digits) |
| Resistance | 0.1Ω – 2MΩ | 0.1Ω | ± (0.8% + 5 Digits) |
| True RMS Measurements | Yes | ||
| AC Bandwidth | 50Hz to 1kHz | ||
| Digital Display | 2000 | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Input impedance | >10MΩ VDC & VAC | ||
| Data Hold | Yes | ||
| Enclosure | Double moulded | ||
| Low battery indication | Yes | ||
| Power source | 3 x LR03 | ||
| Weight | 255g | ||
| Dimensions | 154 x 74 x 43mm | ||
| Safety Specs | IEC61010-D3:D831 CatIII 600V |
