690V AC/DC Voltage Tester
SKU: MT476
- CAT IV 600V and CAT III 1000V
- AC and DC Voltage 690V
- Rotary Field 400V
- RCD Test 30mA
- Continuity test to 200kΩ
- Phase Rotation
- 2000 Count LCD display
- Low Impedance test

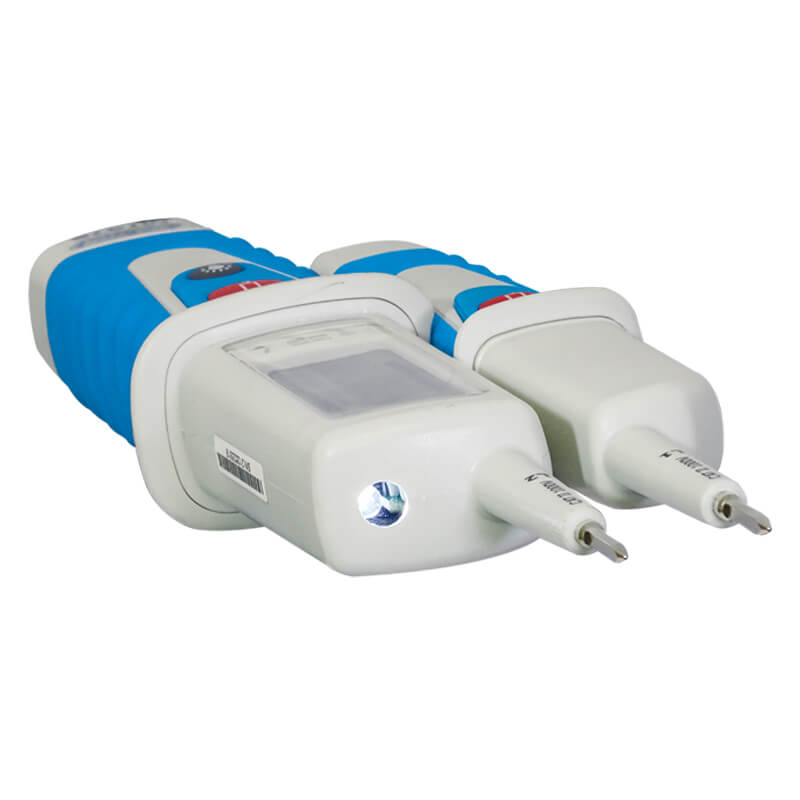

- Built-in Flashlight
- Polarity Detection
- Rotary Field indication
Details

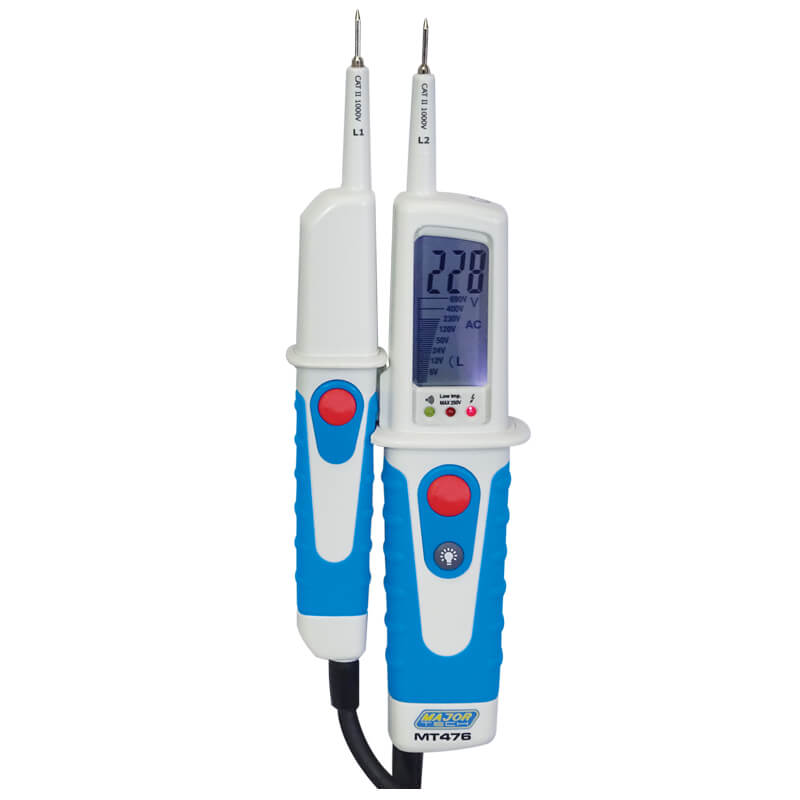

The MT476 is a useful tester designed to meet electrician’s requirements for a multitude of applications. The tester operates without a switch and by simply placing the probes onto the circuit under test, the meter automatically turns on and displays the voltage on a 2000 count display and quick indication can be viewed on the analogue bargraph. The MT476 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems. The applied voltage and the rotating field direction is shown on the LCD display, with corresponding rotating field direction L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to ≤200kΩ. The MT476 meets the CAT IV 600V and CAT III 1000V safety standards.
Brand
Major Tech
Title
Major Tech 690V AC/DC LCD Voltage Tester, CAT IV 600V MT476
