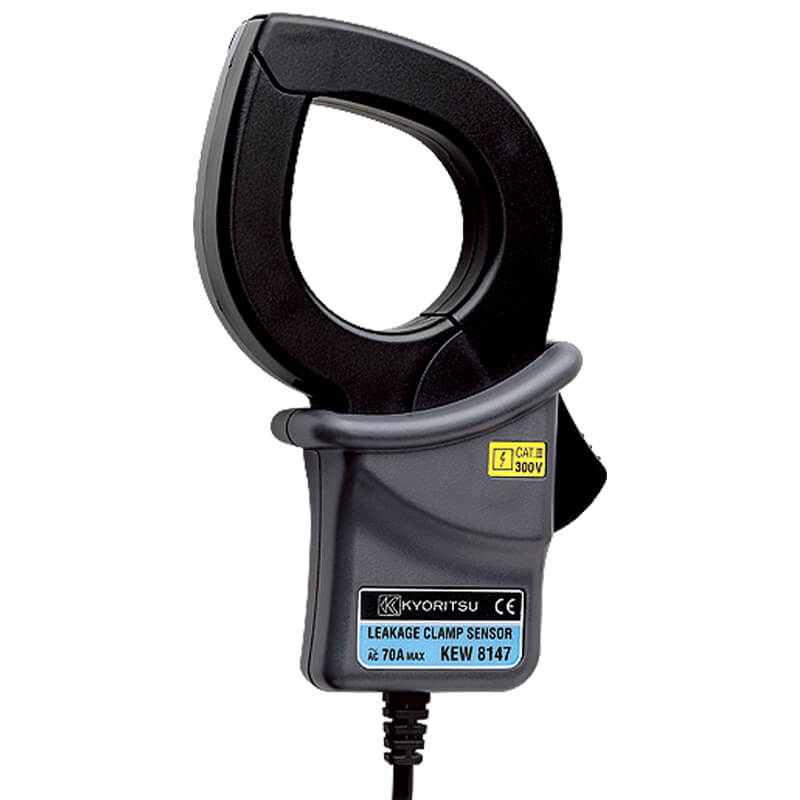

Major Tech Leakage and Load Clamp Sensor | K8147
DetailsOptional Extra for the K5010, K5020 and K6315
Specifications
Specifications:| Function | Range |
| Conductor Size | Ø40mm |
| Rated Current | 70A |
| Current accuracy | ±(1.0%±0.1mV ) |
| Frequency | 40-1KHz |
| Output Voltage | 3500mV (70A, 50mV/A) |
| Cable Length | 2 meters |
| Output Impedance | 100Ω or less |
| Applicable Models | K5010 ,K5020, K6315 |
| Weight | 240g |
| Dimensions | 128 x 81 x 36mm |
| Safety Specs | IEC 61010-1 CATIII 300V |
Supplier SKU: K8147
