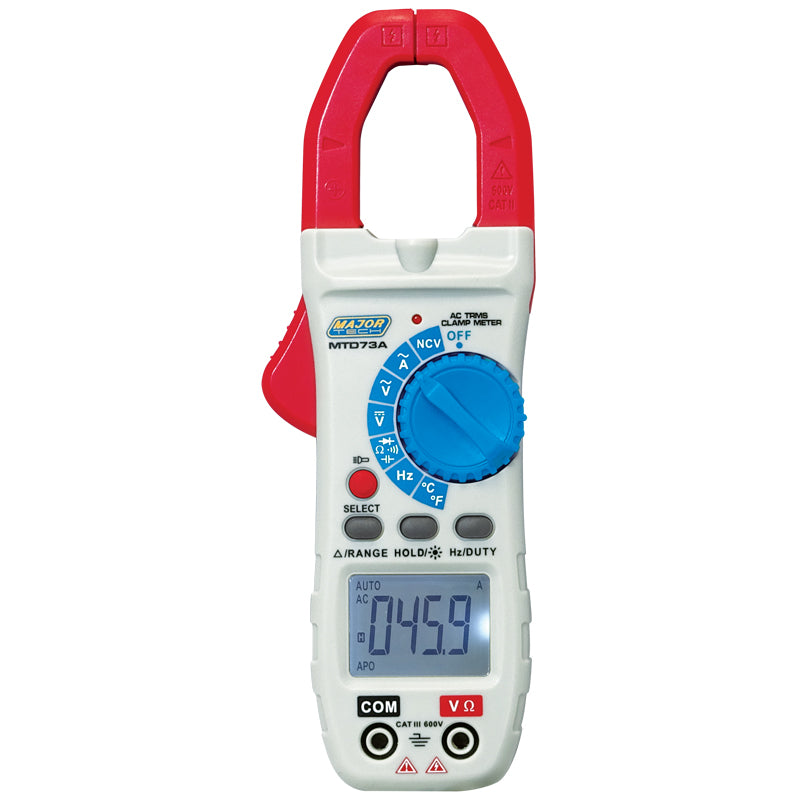

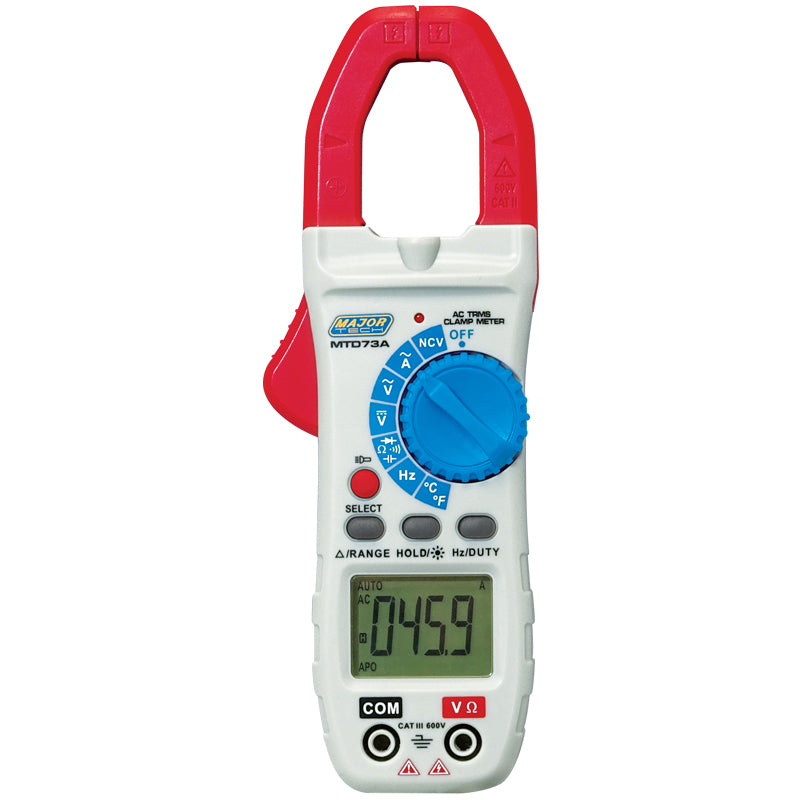

Major Tech True RMS 800A AC Clamp Meter | MTD73A
DetailsThe MTD73A TRMS 800A AC Clamp Meter is a useful tool that allows you to safely test for electrical problems, motor’s condition and current on appliances. Equipped to test any electrical circuit without disconnecting any wires. Handy function includes a backlit LCD display and Flashlight for working in dimly lit areas. The NCV Non-Contact Voltage detector is useful for a quick check to see if voltage is present on circuit under test. It comes with a 28mm Jaw opening and measures 0.001A to 800A AC, 0.1mV to 600V AC/DC, Temperature, Capacitance, Frequency, Resistance, Continuity buzzer and Diode Test
Specifications
Specifications:| Function | Range |
| DC Voltage | 400mV -600V |
| AC Voltage | 4V-600V |
| AC Current | 4A - 800A |
| Resistance | 400Ω - 40MΩ |
| Frequency | 10Hz - 10MHz |
| Capacitance | 4nF - 40mF |
| Continuity | Open circuit Voltage MAX. 2V |
| Diode test | Forward DCA is approx. 0.8mA, open circuit Voltage MAX. 2.2V |
| AC Bandwidth | 2KHZ |
| Digital Display | 4000 Count |
| Non Contact Voltage (NCV) | Yes |
| Overrange indication | Yes |
| Input impedance | 10MΩ (VDC and VAC) |
| Data Hold | Yes |
| Back Light | Yes |
| Back Light | Yes |
| Low battery indication | Yes |
| Power source | 2 x 1.5V AAA Battery |
| Battery Life | Approx. 30h (backlight ON), Approx. 100h (backlight OFF) |
| Weight | 280g |
| Dimensions | 123 x 270 x 39mm |
| Safety Specs | IEC1010-1(2001): EN61010-2-030, EN61010-2-032, EN61010-2- 033 |
Supplier SKU: MTD73A
