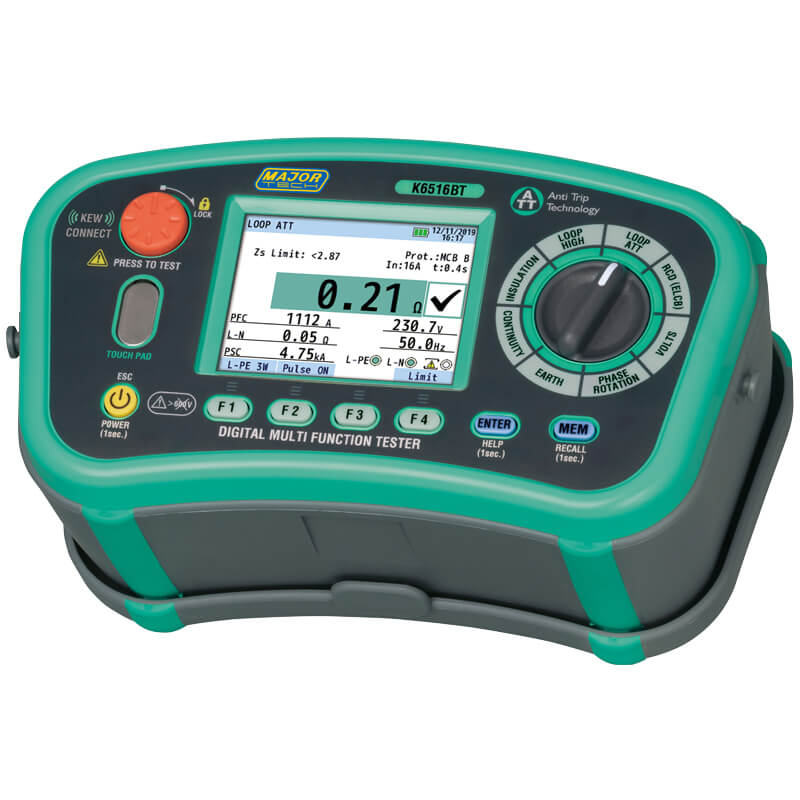

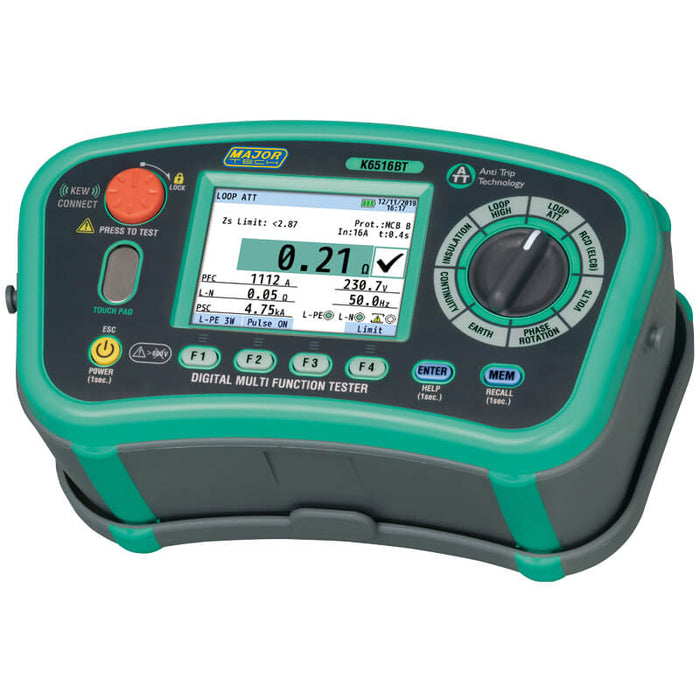

Major Tech Bluetooth Multifuntion Installation Tester | K6516BT
DetailsThe K6516BT Bluetooth Multifunction Installation Tester are advanced multifunction testers performing 12 separate test functions which are required for SANS 0142 and IEC 61557-10. The multifunction’s include Insulation with PI and DAR, continuity, earth loop impedance, RCD testing, prospective short circuit, prospective fault current, earth resistance, AC Voltage, frequency, phase rotation, SPD (varistor) and PAT (portable appliance testing). The meters can store a maximum of 1000 measured results and the K6516BT downloaded via a K8212- USB adaptor (also an optional accessory for K6516BT) and can transfer data to a tablet or smartphone via Bluetooth using Kew smart* in
google play or iOS App store. The K6516BT’s are software driven and guides the user through the colour graphic display, making the meter very user friendly. The K6516BT’s come supplied with a remote test lead for hands free testing. The ATT (anti trip technology) with 2 and 3 wire for no trip Loop L-PE on all RCD’s. With 2 wire only can test with no neutral (eg 3-phase motors).
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC voltage | 0 - 600V | 0.1V | ± (1% + 4 Digits) |
| Resistance | 0 - 400Ω | 0.01Ω | ± (2.5% + 8 dig) |
| Insulation resistance 125V | 125V | 0 - 250MΩ | ± (2% + 2 Digits) |
| Insulation resistance 250V | 250V | 0 - 500.0MΩ | ± (2% + 2 Digits) |
| Insulation resistance 500V | 500V | 0 -20GΩ | ± (2% + 2 Digits) |
| Insulation resistance 1000V | 1000V | 0 - 40GΩ | ± (2% + 2 Digits) |
| Short circuit current | 1,5 | ||
| Overrange indication | Yes | ||
| Polarization index | Yes | ||
| Dielectric absorption ratio | Yes | ||
| Auto discharge | Yes | ||
| Bargraph | Yes | ||
| Bluetooth | Yes | ||
| Data logging | Yes | ||
| Back Light | Yes | ||
| Enclosure | Moulded case IP54 | ||
| Low battery indication | Yes | ||
| Power source | 4 x R6 | ||
| Weight | 490g | ||
| Dimensions | 97 x 156 x 46mm | ||
| Safety Specs | IEC61010-1 CatIII 600V |
Supplier SKU: K6516BT
Brand
Major Tech
Title
Major Tech Bluetooth Multifuntion Installation Tester | K6516BT
