Major Tech 1000V AC/DC TRMS Bluetooth Multimeter | MT100

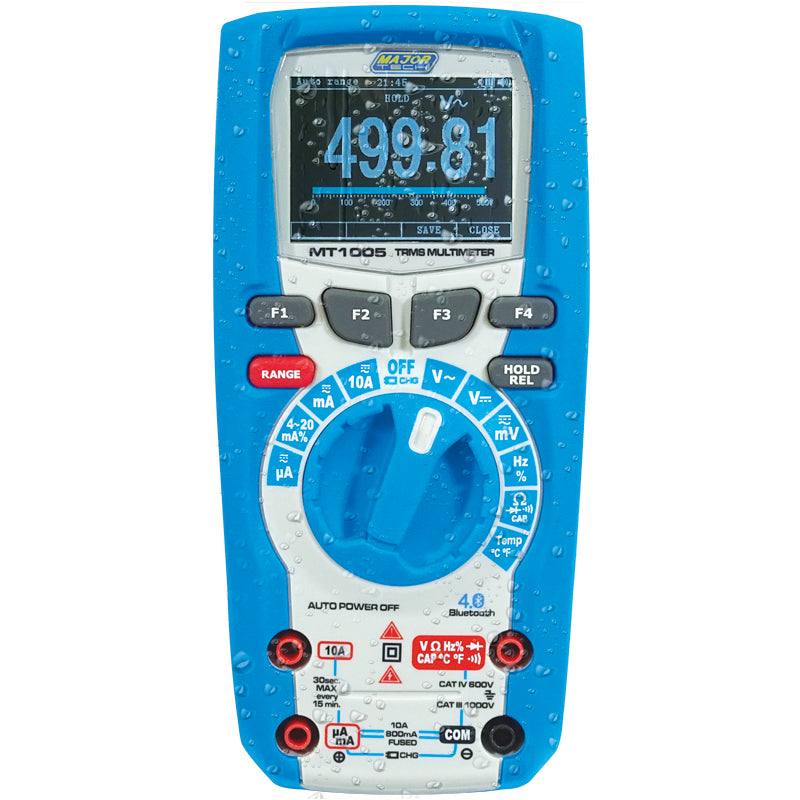

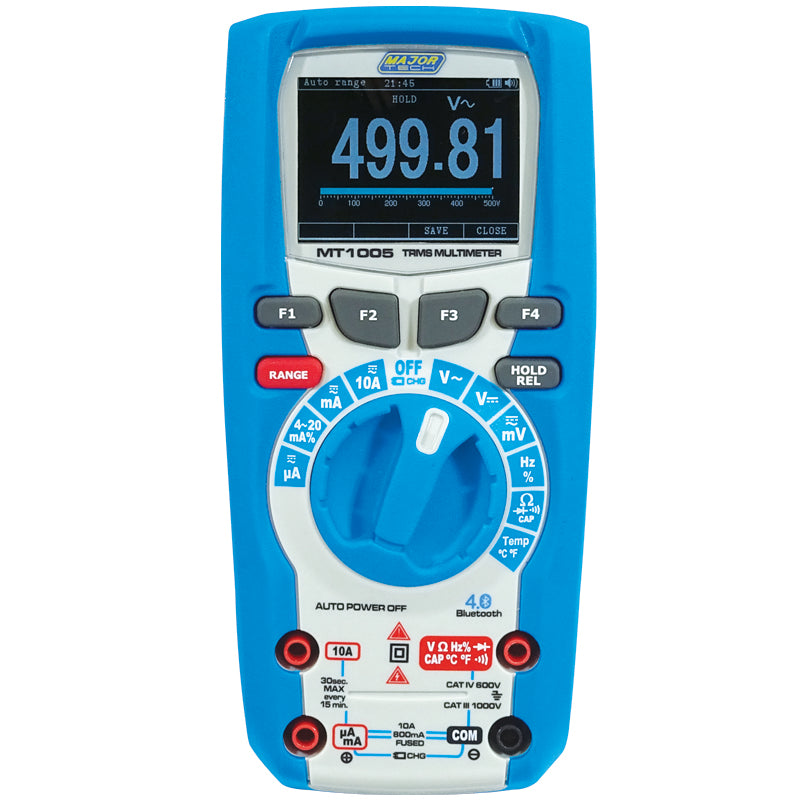

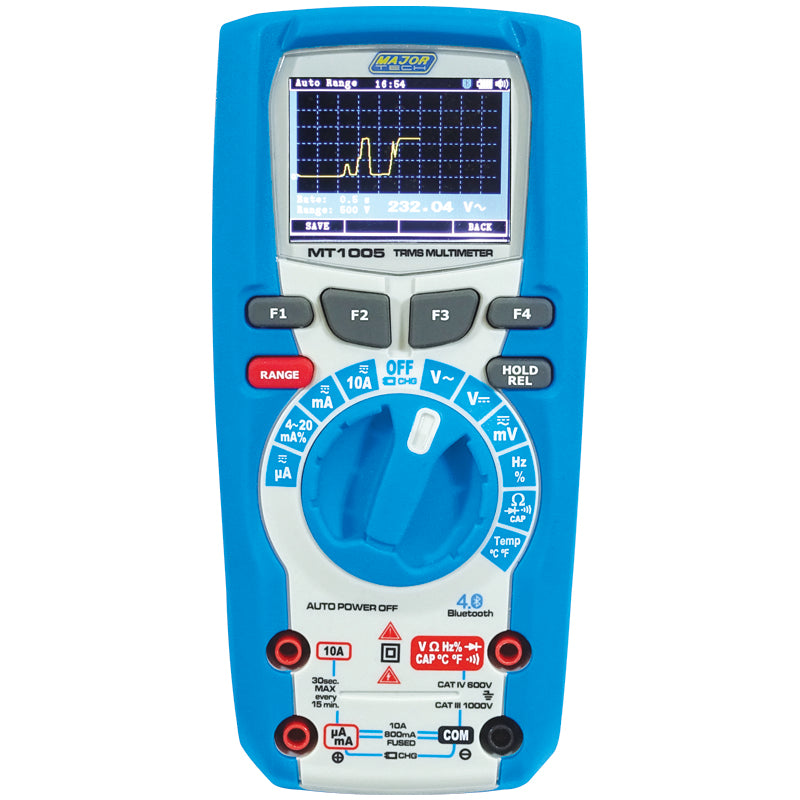

DetailsThe MT1005 Heavy duty True RMS Industrial Digital Multimeter with TFT colour LCD display, provides fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. It can trace any interruptions of the equipment and record events automatically unattended. It is easy to find and solve the problems with the Bluetooth technology and memories datasheets whilst providing safer measurements with the double moulded plastic housing design.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC voltage | 0.01mV – 1000V | 0.01mV | ± (0.05% + 5 Digits) |
| AC voltage | 0.01mV – 1000V | 0.01mV | ± (0.5% + 5 Digits) |
| AC + DC TRMS voltage | 0.1mV – 1000V | 0.1mV | ± (1.2% + 20 Digits) |
| DC Current | 0.01μA – 10A | 0.01μA | ± (0.2% + 5 Digits) |
| AC Current | 0.01μA – 10A | 0.01μA | ± (0.8% + 5 Digits) |
| Duty Cycle | 0.1 to 99.90% | 0,01% | ± (1.2% + 2 Digits) |
| Resistance | 0.01Ω – 50MΩ | 0.01Ω | ± (0.2% + 5 Digits) |
| Frequency | 0.001Hz – 10MHz | 0.001Hz | ± (0.01% + 5 Digits) |
| Capacitance | 0.001nF – 10mF | 0.001nF | ± (1.0% + 8 Digits) |
| Temperature | -200 to 1350°C | 0.1°C | ± (1.0%+ 3 Digits) |
| True RMS Measurements | AC | ||
| 4-20mA% | Yes | ||
| AC Bandwidth | 50Hz to 20KHz | ||
| Digital Display | 50 000 TFT | ||
| Bargraph | Yes | ||
| Bluetooth | Yes | ||
| Records events and Trends | Yes | ||
| Data logging | Yes | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Overrange indication | Yes | ||
| Input impedance | >10MΩ VDC & >9MΩ VAC | ||
| Min Max | Yes | ||
| Peak hold | 1ms | ||
| Enclosure | Double moulded | ||
| Low battery indication | Yes | ||
| Power source | 7.4V rechargeable | ||
| Dimensions | 170 x 79 x 50mm | ||
| Safety Specs | IEC61010-1 CatIV 600V |
Supplier SKU: MT100
