Major Tech Dead Motor and Phase Rotation Meter | MT935

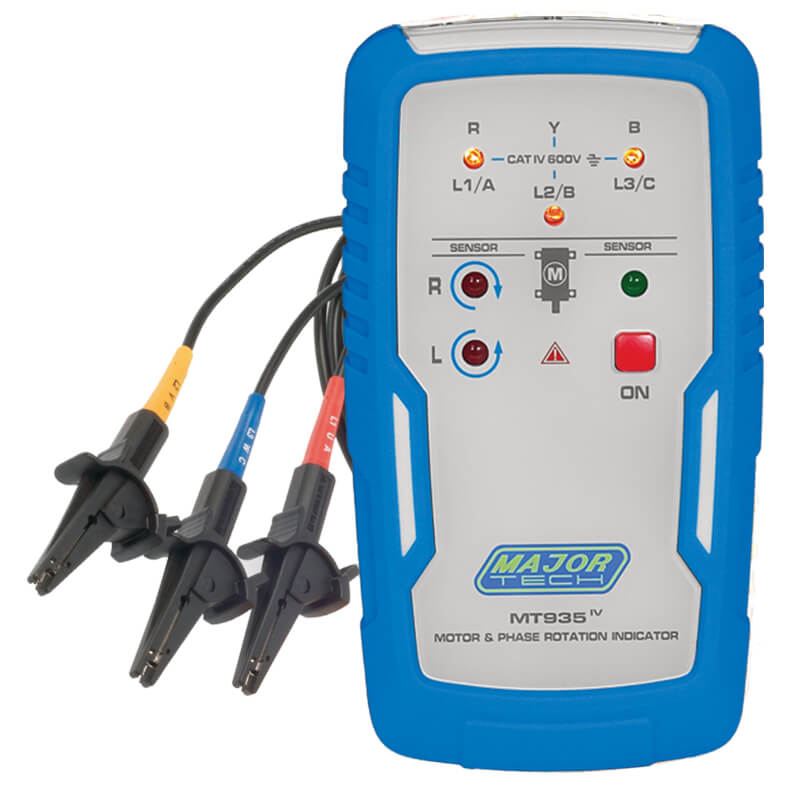

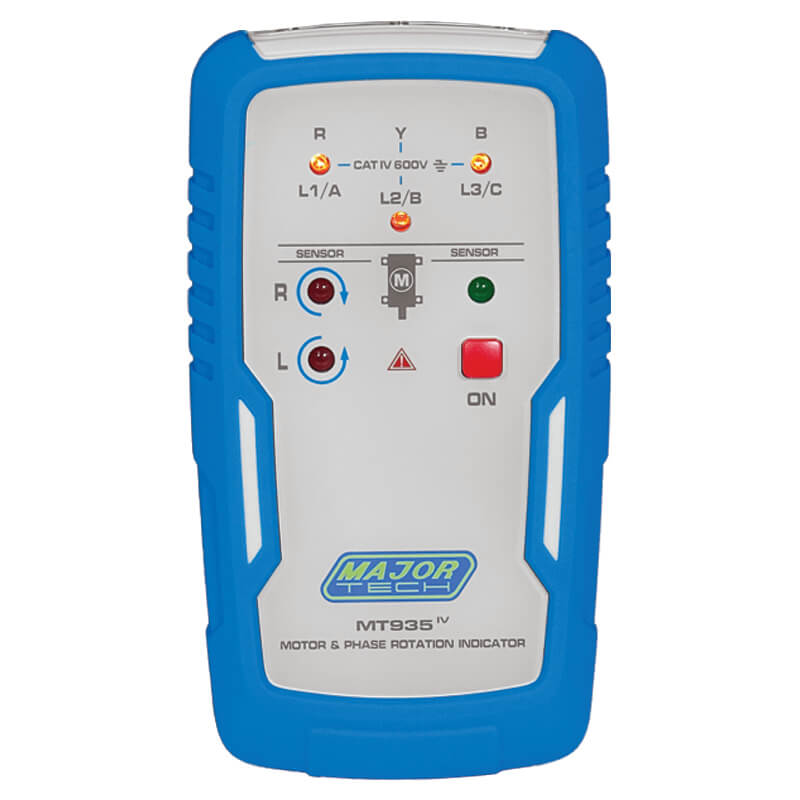

DetailsThe MT935 is a motor and phase rotation tester that operates on battery power. It can be used on both 3-phase powered systems and unpowered 3-phase motors without any concerns about damaging the tester. When used on a 3-phase powered system, this instrument serves as a field indication meter, illuminating corresponding lamps to display all three phases. Additionally, an LED indicates the rotation direction, either clockwise or anticlockwise. In the case of a 3-phase motor, the MT935 allows for the identification of motor connections R, Y and B without the presence of mains voltage, thereby preventing damage to pumps caused by reversed motor rotation. The MT935 operates efficiently on voltage ranges from 1V AC to 400V AC and is housed in a durable double-moulded rubber casing, making it ideal for heavy-duty usage.
Specifications
Specifications:| Function | Range |
| Clamp Diameter Range | 20mm |
| Detection Method | LED Indication/non-contact |
| Measuring Frequency | 2 – 400Hz |
| Nominal Voltage Rotary Detection | 1 to 400V AC |
| Nominal Voltage Phase Indirection | 120V – 400V AC |
| Phase Rotation | Clock or Anti clock |
| Visual Indication | LED Indication |
| Colours | Red, Yellow, Blue |
| Casing | Double injection rubber housing |
| Batteries | 9V |
| Weight | 174g |
| Dimensions | 135 x 75 x 31mm |
Supplier SKU: MT935
Brand
Major Tech
Title
Major Tech Dead Motor and Phase Rotation Meter | MT935
