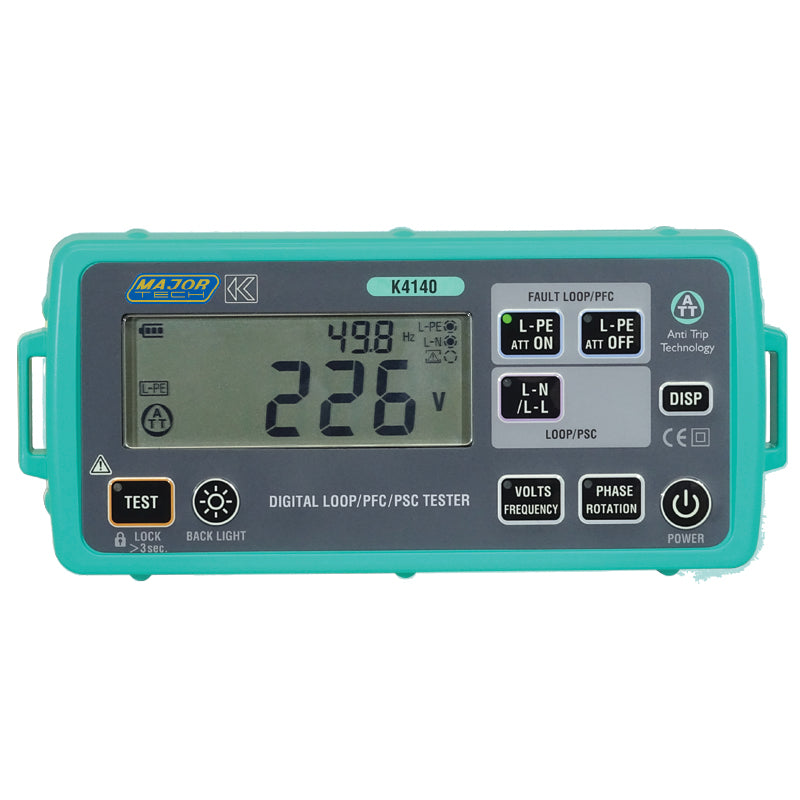

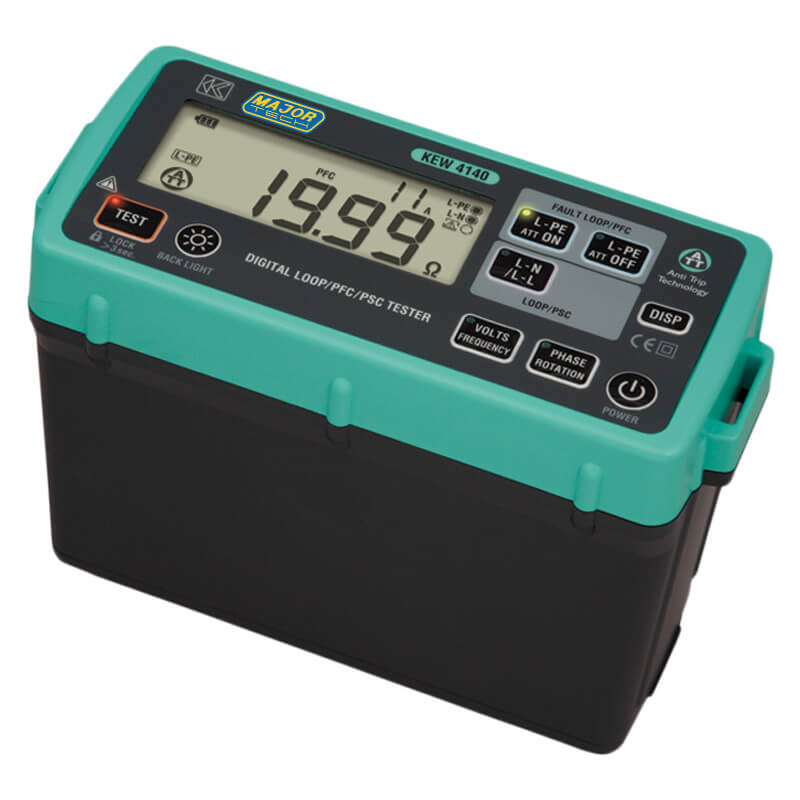

Major Tech Digital Loop Impedance, PFC and PSC Tester | K4140
DetailsThe K4140 incorporates Anti-Trip Technology (ATT) which electronically bypasses RCDs when performing loop impedance tests. This saves time and money by not having to take the RCD out of the circuit when testing and is a safer procedure to follow. With the ATT function enabled, a test current of 15mA or less is applied between Line & Earth. It enables resolution loop impedance measurements (up to 0.01 ohm), without tripping RCDs rated at 30mA and above. A full set of new safety test leads are included, they have an overmould for maximum grip and are extremely robust. The instrument also comes in a soft carry case, a quick reference guide locates on the instrument body, a soft strap belt and is supplied with a calibration certificate.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| Loop Impedance L-PE ATT OFF | 0.00 - 2000Ω | 0.01Ω | ± (3% rdg + 4 dgt) |
| Loop Impedance L-PE ATT ON | 0.00 - 2000Ω | 0.01Ω | ± (3% rdg + 6 dgt) |
| Loop Impedance L-N/L-L | 0.00 - 20Ω | 0.01Ω | L-N: ± (3% rdg + 4 dgt) L-L: ± (3% rdg + 8 dgt) |
| Nominal Test Current at 0Ω External Loop: Magnitude/Duration at 230V L-PE ATT OFF | 20Ω:6A/20ms | ||
| Nominal Test Current at 0Ω External Loop: Magnitude/Duration at 230V L-PE ATT On | L-N: 6A/60ms | ||
| Nominal Test Current at 0Ω External Loop: Magnitude/Duration at 230V L-N/L-L | 20Ω: 6A/20ms | ||
| PFC / PSC L-PE OFF | 0 – 20kA | 1kA | ± (3% rdg + 4 dgt) |
| PFC / PSC L-PE ON | 0 – 20kA | 1kA | ± (3% rdg + 4 dgt) |
| PFC / PSC L-N/L-L | 0.00 - 20Ω | 0.01Ω | L-N: ± (3% rdg + 4 dgt) L-L: ± (3% rdg + 8 dgt) |
| Nominal Test Current at 0Ω External Loop: Magnitude/Duration at 230V L-PE ATT OFF | 20Ω: 6A/40ms | ||
| Nominal Test Current at 0Ω External Loop: Magnitude/Duration at 230V L-PE ATT ON | L-N: 6A/60ms | ||
| Nominal Test Current at 0Ω External Loop: Magnitude/Duration at 230V L-N/L-L | 20Ω: 6A/20ms | ||
| Voltage | 0 – 500V | 1V | ± (2% rdg + 4 dgt) |
| Frequency | 45 – 65Hz |
| ±0.5%rdg±2dgt |
| Phase Rotation | Yes | ||
| Display | LCD Display | ||
| Power Source | AA x 6 Batteries | ||
| Dimension | 84 (L) × 184 (W) × 133 (D) mm | ||
| Weight | Approx. 860g (including batteries) | ||
| Safety Specs | IEC 61010 – CAT II 1000V and CAT III 300V |
Supplier SKU: K4140
Brand
Major Tech
