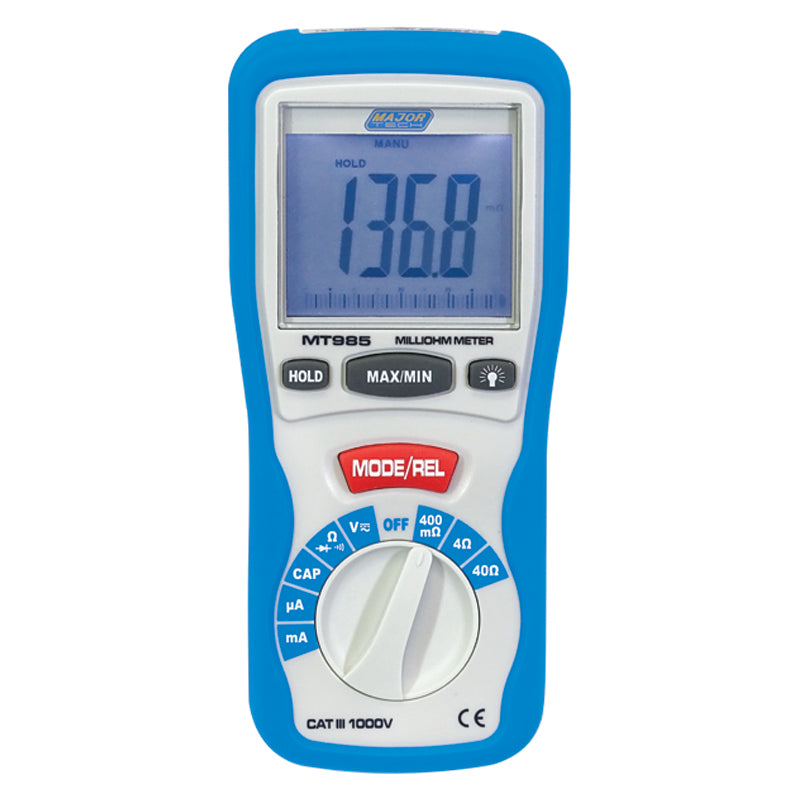

Major Tech Digital Milliohm Meter | MT985
DetailsThe MT985 Milliohm & Multimeter Tester measures low resistance from 400mΩ to 40Ω with a 0.1mΩ resolution and a test current of 200mΩ. This compact handheld unit provides fast and accurate measurements on a large high contrast 4000 count LCD Display with a bargraph and backlight. The MT985 also measures AC/ DC voltage, AC/DC current resistance, capacitance, continuity and diode test offering excellent performance and is ideal for any industry.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| Low Resistance | 0.1m? – 40? | 0.1m? | ±(1% + 10 Digits) |
| DC Voltage | 0.1mV – 1000V | 0.1mV | ±(1% + 5 Digits) |
| AC Voltage | 0.1mV – 750V | 0.1mV | ±(1.2% + 10 Digits) |
| DC Current | 0.1µA – 400mA | 0.1μA | ±(1.0% + 2 Digits) |
| AC Current | 0.1µA – 400mA | 0.1μA | ±(1.5% + 5 Digits) |
| Resistance | 0.1? – 40M? | 0.1? | ±(1.0% + 4 Digits) |
| Capacitance | 1pF – 40mF | 1pF | ±(5.0% + 20 Digits) |
| Output Current | 220mA – 2mA | ||
| Digital Display | Large LCD Display | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Bargraph | Yes | ||
| Overrange Indication | Yes | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded case | ||
| Low Battery Indication | Yes | ||
| Batteries | 6 x AA | ||
| Weight | 700g | ||
| Dimensions | 200 x 92 x 50mm | ||
| Safety Specs | IEC61010-1 CAT III 1000V |
Supplier SKU: MT985
Brand
Major Tech
Title
Major Tech Digital Milliohm Meter | MT985
