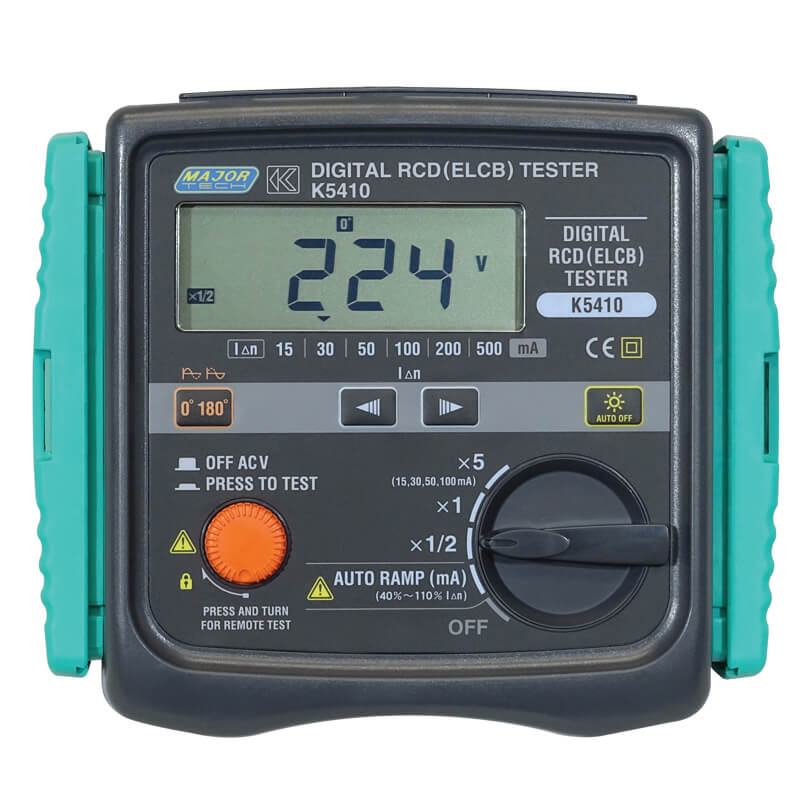

Industrial Digital RCD/ELCB Tester
SKU: K5410
- Microprocessor controlled
- Operating voltage 80V - 450V L-E
- Auto Ramp
- 0° or 180° Phase angle selection
- Rated current 10mA - 500mA
- Automatically measures trip current
- Remote testing
- IP54 - Dust & Drip Proof
K5410IS Intrinsically Safe Version
Details
The K5410 is a Microprocessor controlled Industrial Earth Leakage tester designed to operate on 550V, 380V and 220V systems, or circuits with a maximum of 450V AC (L-E). The K5410 measures trip current by varying the current automatically. A great feature is remote testing which enables the user to hold the test leads with both hands by locking the test button; measurement will automatically start when the main voltage is detected. The K5410 detects the voltage to Earth electrodes or Protective conductors during RCD test, when applying test currents, at measurement using Earth in order to prevent electrical shocks cause by the damaged earth. Measurement will cease at 50V AC or more.
Ideally suited for Mining and Industrial use.
Brand
Major Tech
Title
Major Tech Digital RCD (ELCB) Tester, CAT III 300V K5410
