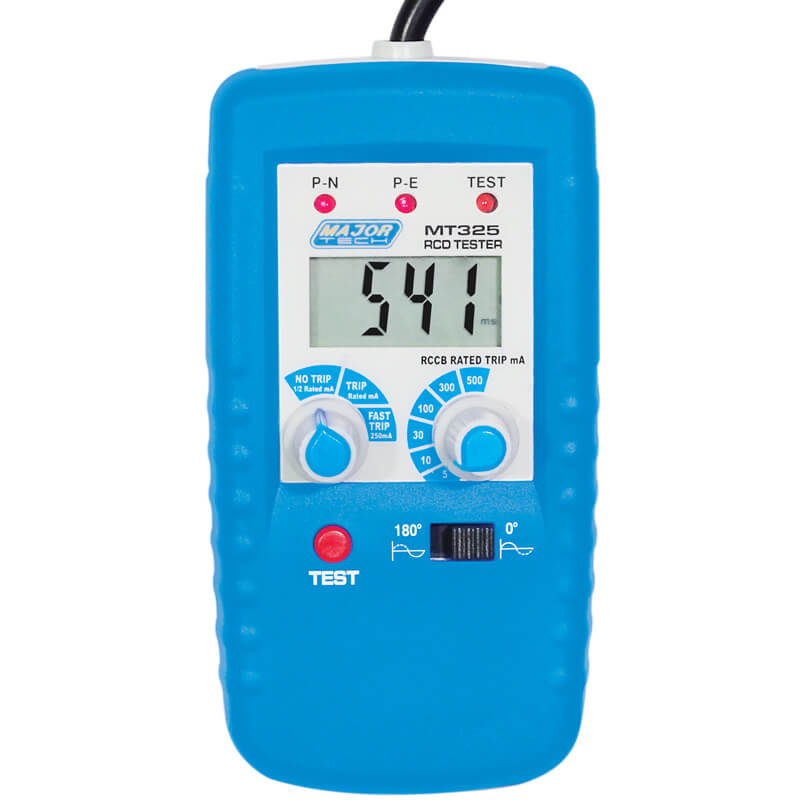

Major Tech Digital RCD/ELCB Tester | MT325
DetailsThe compact MT325 is a lightweight and easy to use ELCB Tester that operates on 216V AC – 264V AC circuits while offering high accuracy measurements. Features include pre-programmed tripping current ranges for speed of use, with direct readout of disconnection time with a resolution of 1ms, neon indication of correct wiring status. Consistent results are obtained with the 0° and 180° phase angle select switch, thus eliminating the need for repeat tests.
Specifications
Specifications:| Function | Range | Accuracy |
| Voltage Measurement | 220V AC to 240V AC | ± (3%) |
| Frequency Response | 50/60Hz | |
| Test Current | 5,10,30,100,300,500mA | |
| Measuring Range | 2000ms | ± (5%) |
| Phase Angle Selection | 0° or 180° | |
| Socket Polarity | Yes | |
| Enclosure | Double Injection moulding | |
| Display | LCD | |
| Weight | 130g | |
| Dimensions | 130 x 69 x 32mm | |
| Safety Specs | IEC61010-1 CAT III 600V |
Supplier SKU: MT325
