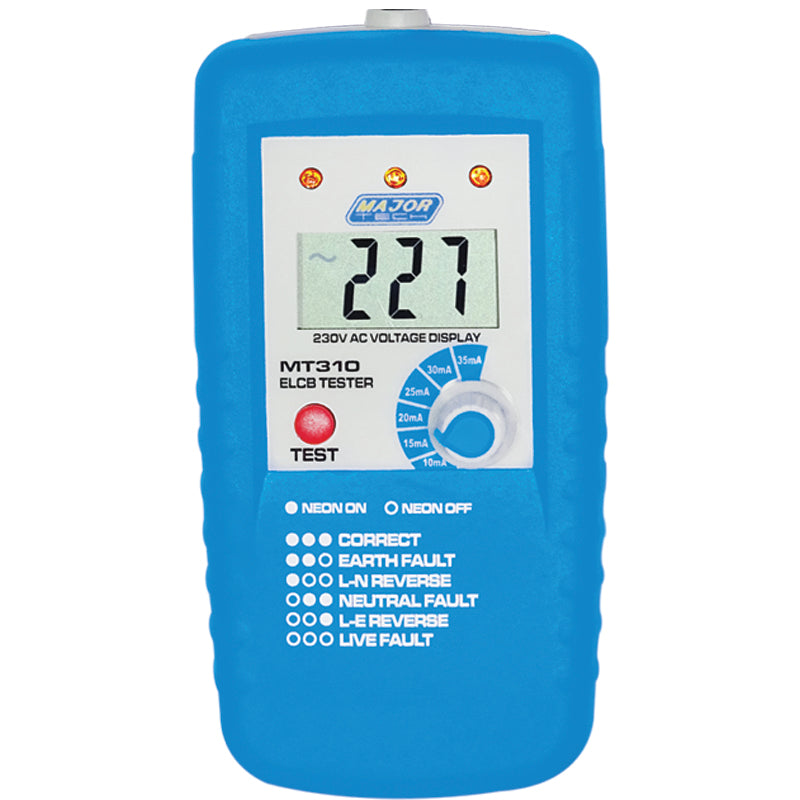

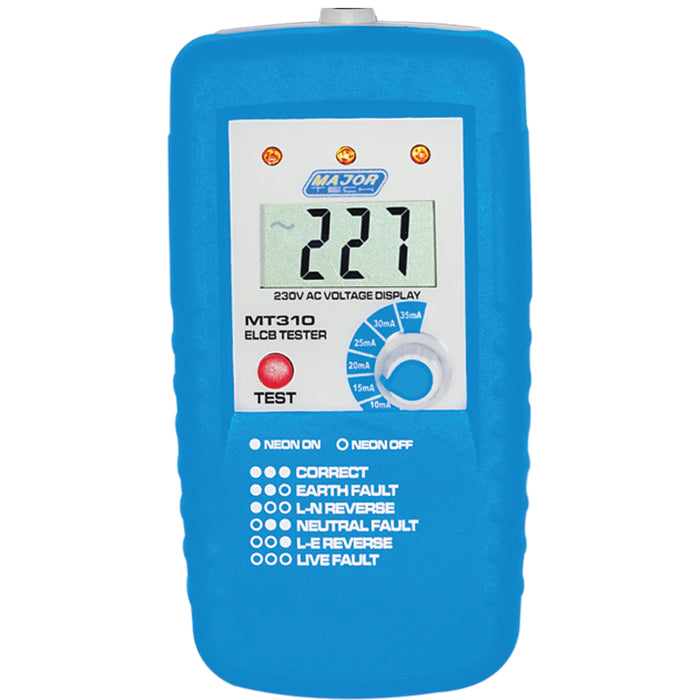

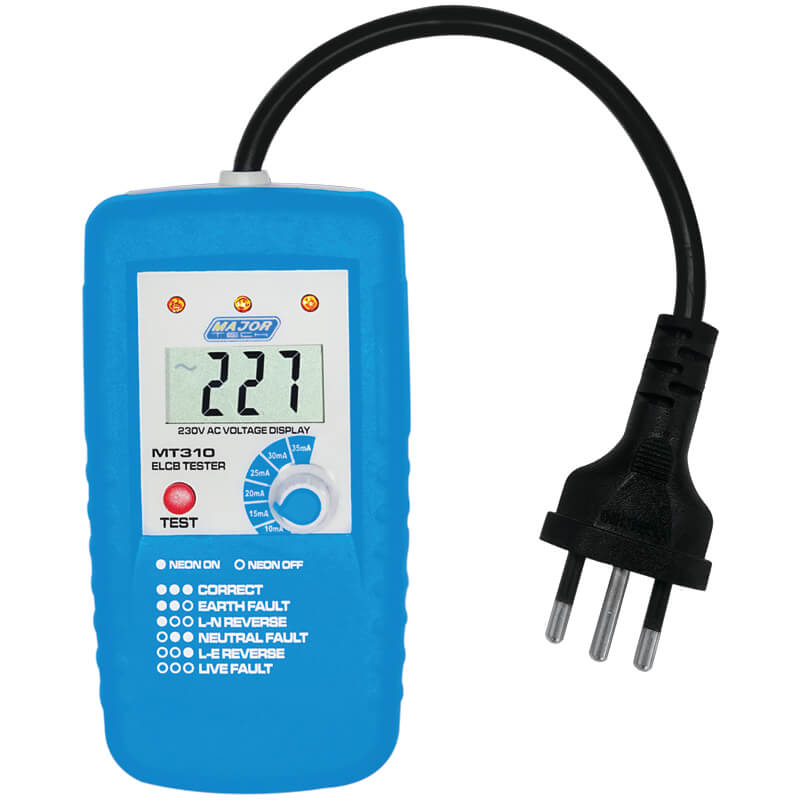

Major Tech Socket ELCB Tester | MT310
DetailsThe MT310 Earth Leakage Tester is a compact, lightweight and easy to use socket, polarity and earth leakage tester that tests 3-wire 216V AC to 264V AC circuits and Earth Leakage Circuit Breakers. A unique feature is the AC Voltage indication on the LCD display. It also features a milli-amp (mA) trip setting with a separate test button. The unit can be set from 10mA, used for testing saturation and to eliminate nuisance tripping, to 35mA. The bright neon indication assists the user in confirming the wiring status of the circuit under test. Simply plug the
MT310 into a wall socket and the results are clearly displayed. For additional safety, the MT310 is rated at CAT IV 300V and CAT III 600V.
Specifications
Specifications:| Function | Range | Accuracy |
| Voltage measurement | 150V AC to 245V AC | Ā± (10%) |
| Test current | 10, 15, 20, 25, 30, 35mA | Ā± (1.75mA @ 230VAC) |
| Frequency response | 50/60Hz | |
| Socket polarity | Yes | |
| Enclosure | Double Injection moulding | |
| Display | LCD | |
| Weight | 130g | |
| Dimensions | 130 x 69 x 32mm | |
| Safety Specs | IEC61010-1 CAT III 600V |
Supplier SKU: MT310
Brand
Major Tech
Title
Major Tech Socket ELCB Tester | MT310
