Major Tech Earth Resistivity and Resistance Tester | K4106

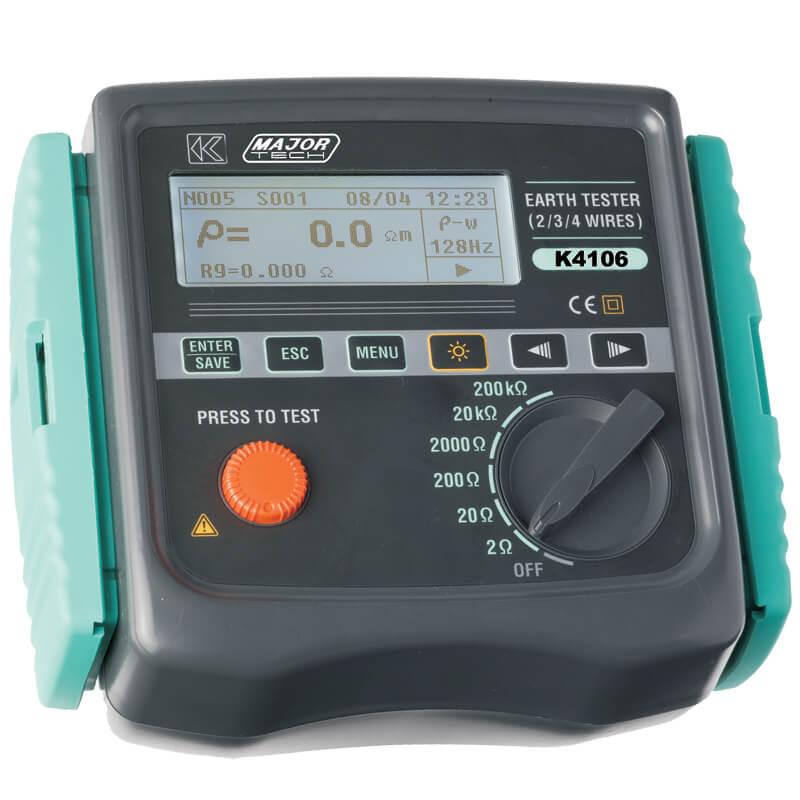

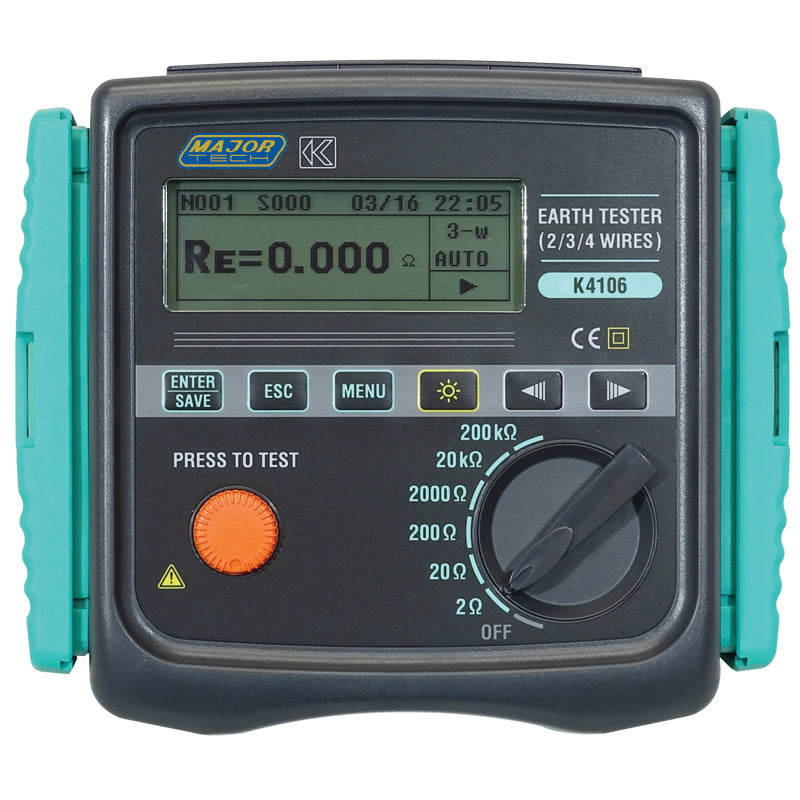

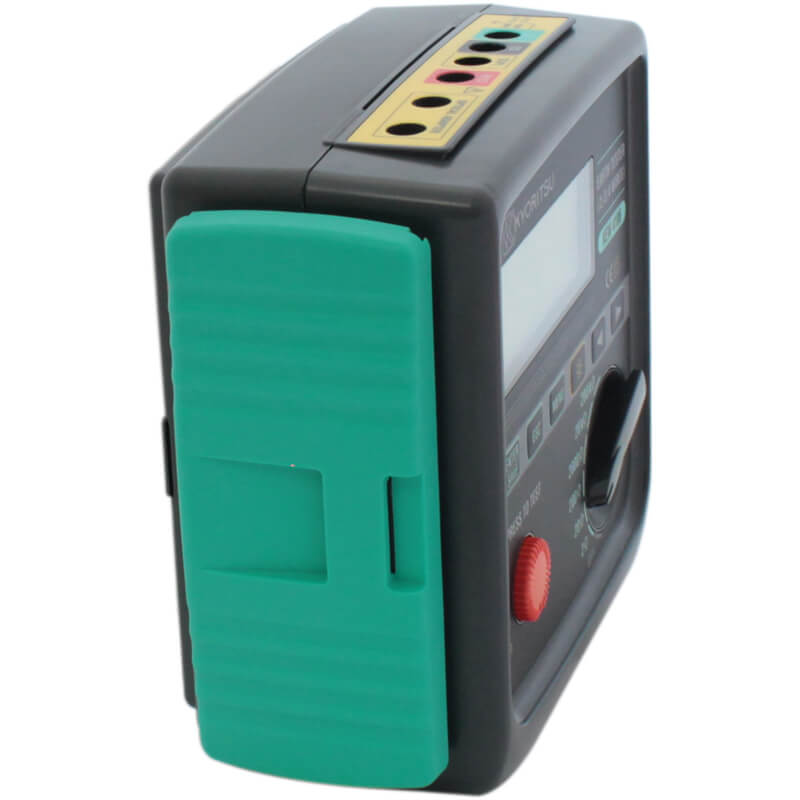

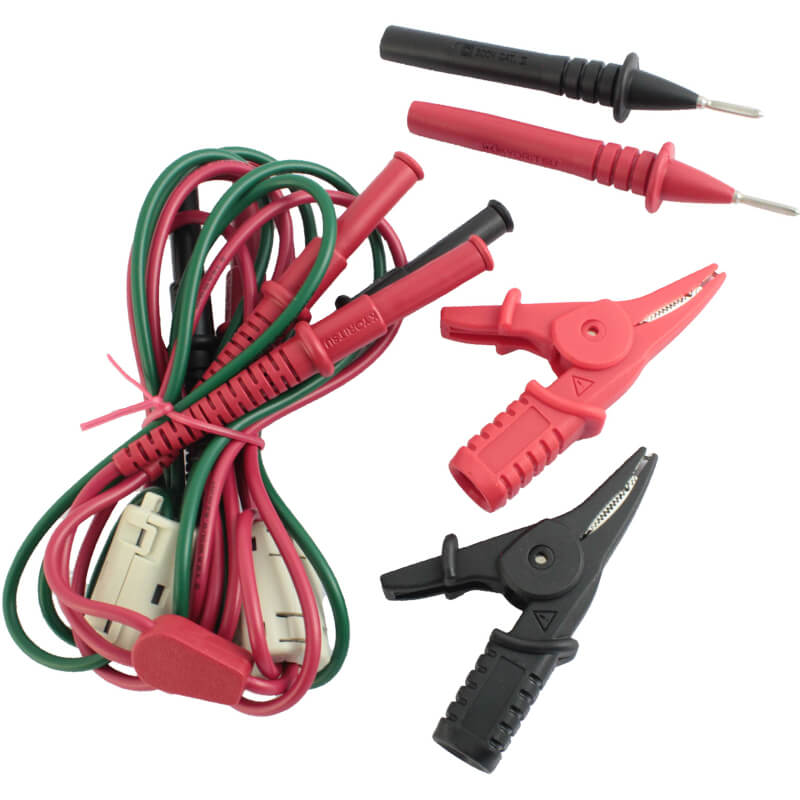

DetailsThe K4106 is a 2/3/4-wire Digital Earth resistance/Earth Resistivity Tester equipped with a microcomputer and can measure earth resistances and calculate earth resistivity’s (ρ), using the “Wenner” 4 pole method. This instrument is ideal for Earth measurements also in large Earthing systems because it uses a considerable test current of 80mA(max) yielding a high resolution of 1mΩ on 2Ω range. The Earth Resistivity measurement is useful for soil surveys to establish the optimum earth electrode system design and site, to avoid extra cost of reworking electrode installations. It can also be suitable for geological investigations.
Specifications
Specifications:| Function | Range | Resolution | Measuring range | Accuracy |
| Earth resistance Re | 2Ω | 0.001Ω | 0.03 to 2.099Ω | ±(2%rdg±0.03Ω) |
| 20Ω | 0.01Ω | 0.03 to 20.99Ω | ± (2%rdg±5dgt (*1)) | |
| 200Ω | 0.1Ω | 0.3 to 209.9Ω | ||
| 2000Ω | 1Ω | 3 to 2099Ω | ||
| 20kΩ | 10Ω | 0.03 to 20.99kΩ | ||
| 200kΩ | 100Ω | 0.3 to 209.9kΩ | ||
| Auxiliary earth resistance Rh, Rs |
|
|

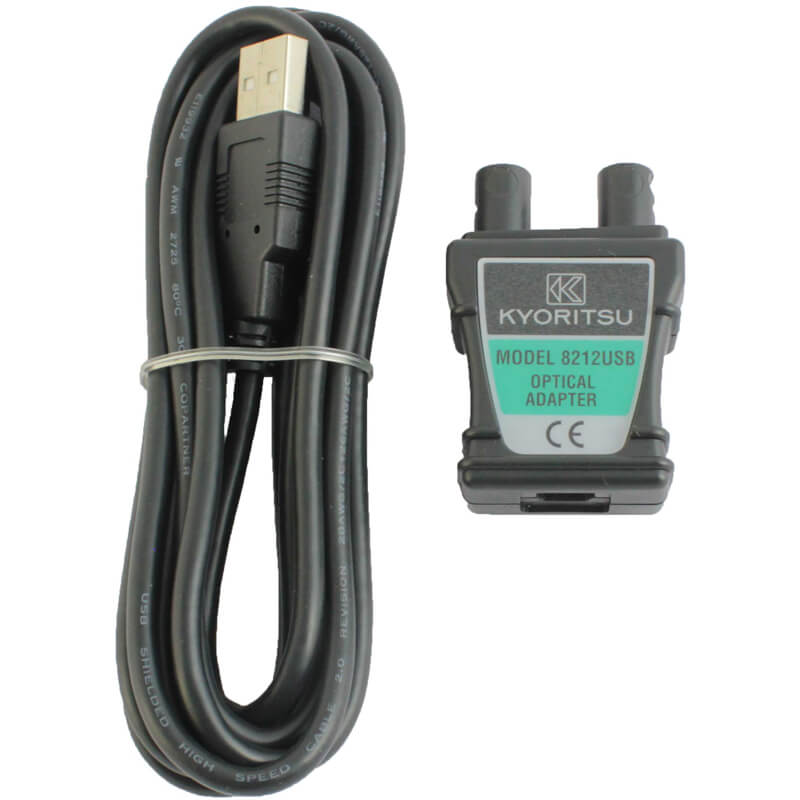

| (8% of Re+Rh+Rs) |
| Earth resistivity ρ | 2Ω | 0.1 to 1Ω·m | 0.2 to 395.6Ω·m | (ρ=2×π×a×Rg (*2)) |
| 20Ω | 0.2 to 3956Ω·m | |||
| 200Ω | 20 to 39.56kΩ·m | |||
| 2000Ω | 0.2 to 395.6kΩ·m | |||
| 20kΩ | 2.0 to 1999kΩ·m | |||
| 200kΩ | ||||
| Series interference voltage Ust (A.C only) (*3) | 50V | 0.1V | 0 to 50.9Vrms | ± (2%rdg ± 2dgt (50/60Hz)) |
| ± (3% rdg ± 2dgt (40 to 500Hz)) | ||||
| Frequency Fst | Auto-ranging | 0.1Hz | 40Hz to 499.9Hz | ± (1% rdg ± 2 dgt) |
| Measuring method | Earth resistance: Fall-of-potential method | |||
| Memory capacity | 800 data | |||
| Communication Interface | PC Intgerface | |||
| Display | LCD Display | |||
| Over-range Indication | Yes | |||
| Overload Protection | between E-S(P) and between E-H(C) terminals AC280V / 10 sec. | |||
| Power source | R6 × 8 | |||
| Dimension | 167(L) × 185(W) × 89(D) mm | |||
| Weight | Approx. 900g (including batteries) | |||
| Safety Specs | IEC 61010 – CAT II 600V and CAT III 300V |
