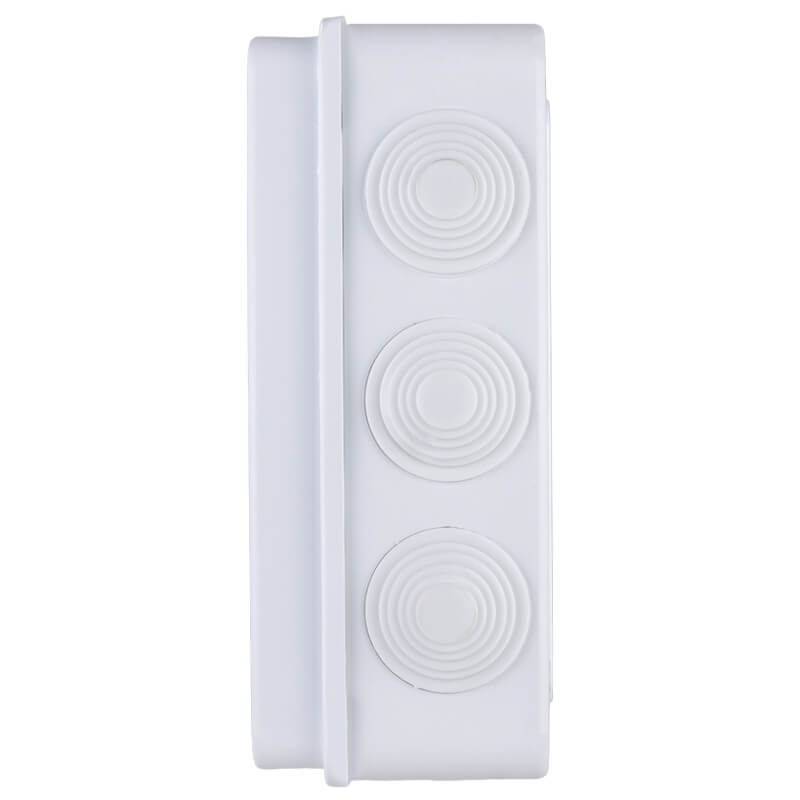

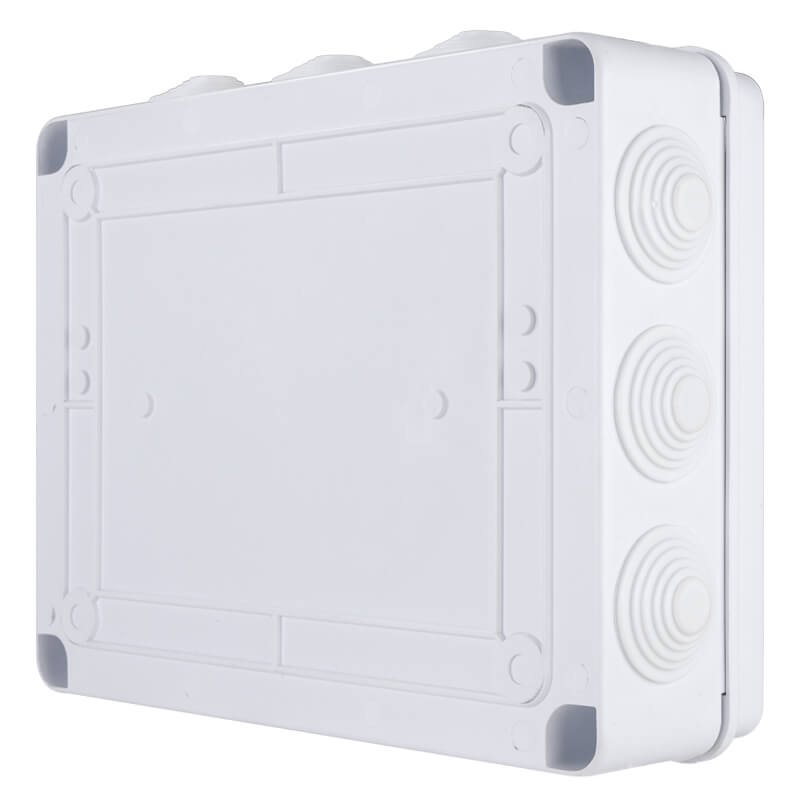

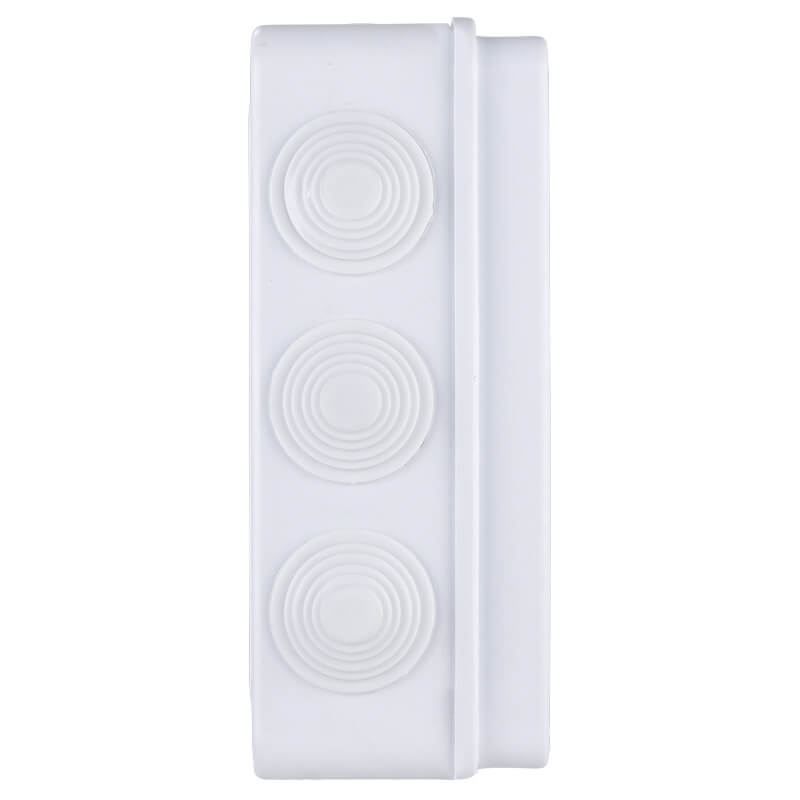

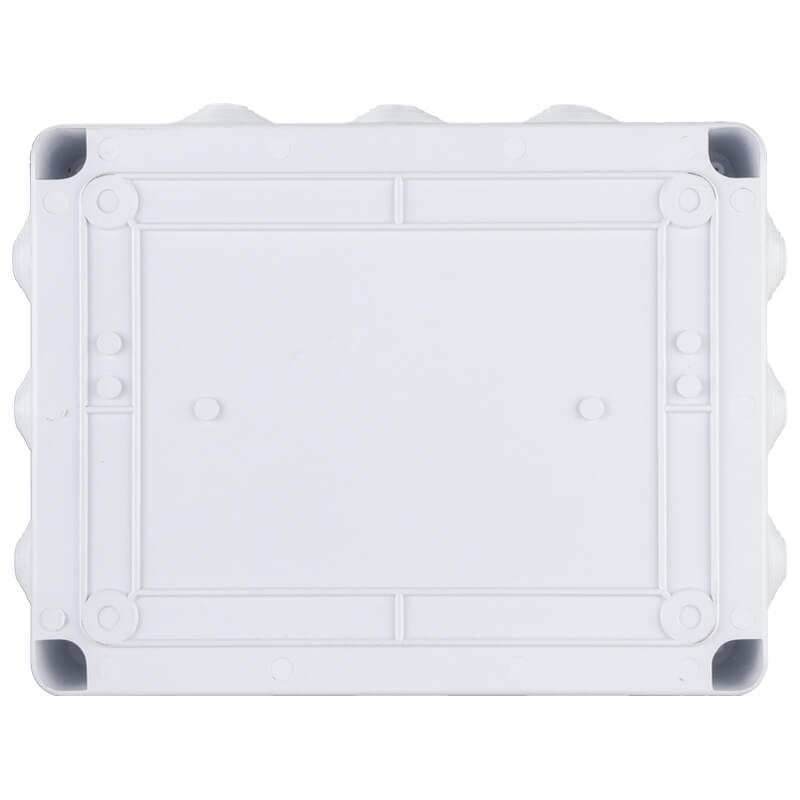

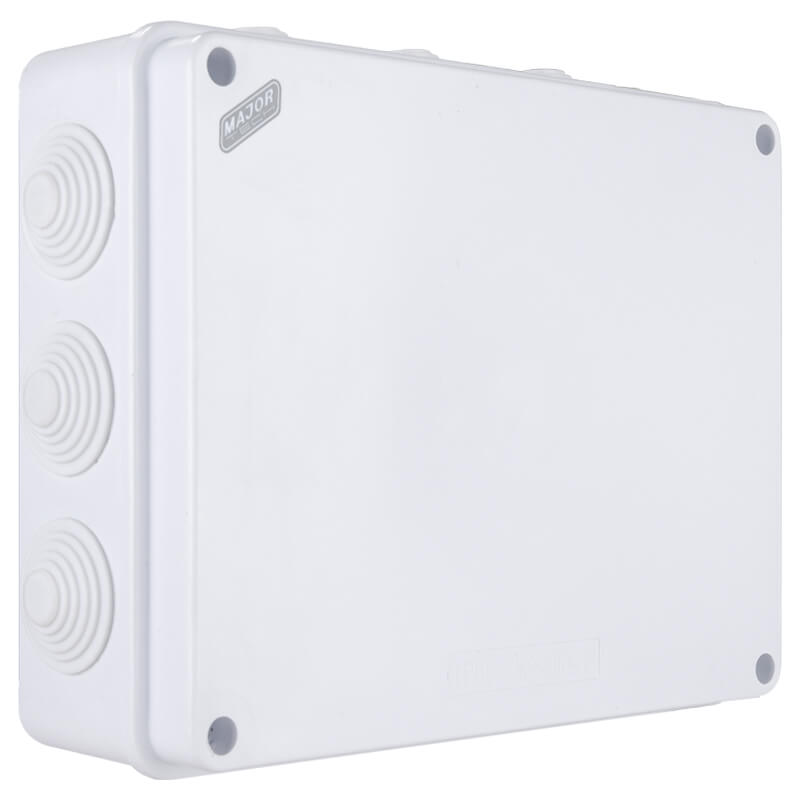

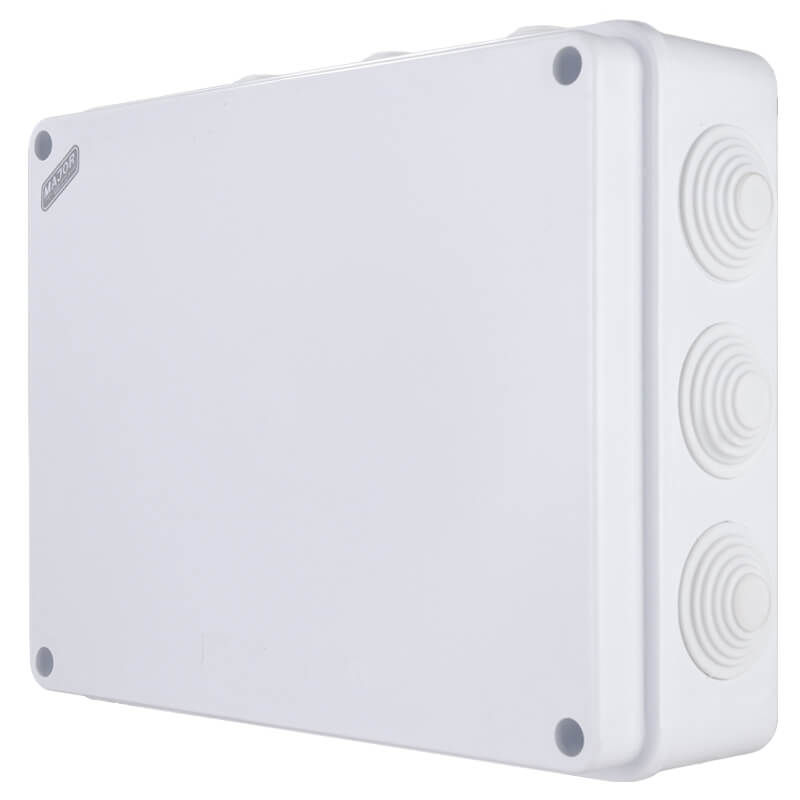

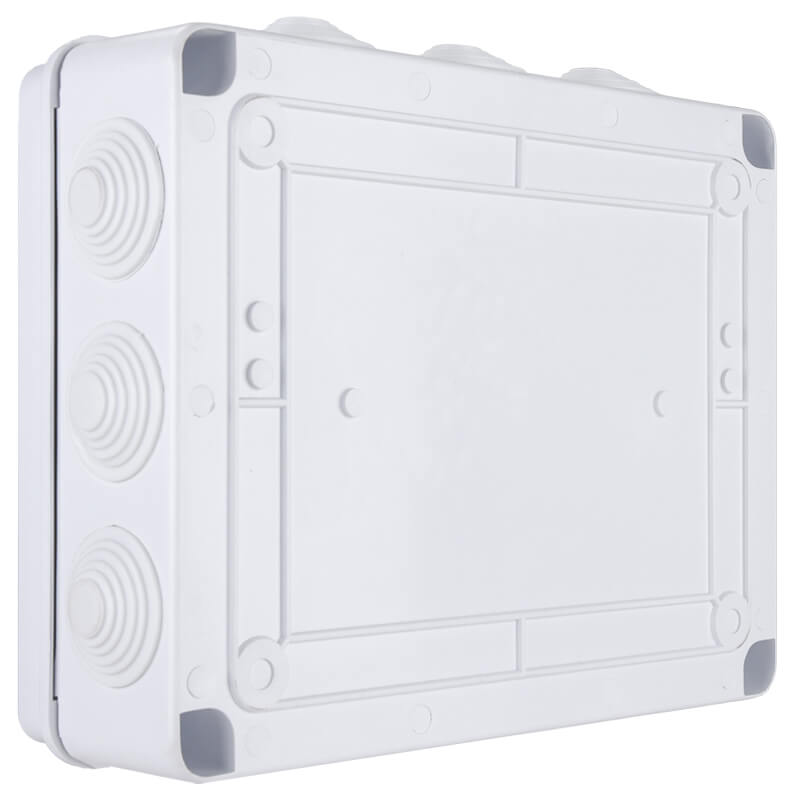

Major Tech IP65 Junction Boxes with Rubber Gland (255mm x 200mm x 80mm) | VJ25208R
DetailsThe VJ25208R is a robust rectangular junction box with an IP65 ingress protection rating, designed to safeguard electrical connections in both indoor and outdoor environments. Measuring 255 x 200 x 80mm, it features rubber stepped glands that allow for flexible and secure cable entry. Constructed from high-quality, non-flammable ABS plastic, the enclosure offers excellent durability and insulation. With an IK08 impact resistance rating, it provides strong protection against mechanical impacts, making it suitable for demanding conditions. The VJ25208R complies with IEC 60529 and IEC 60670 standards, and carries certifications including CE, RoHS, HF test, IK test, and is manufactured under the ISO 9001 quality management system. Ideal for residential, commercial, and industrial applications, this enclosure ensures reliable and safe electrical installations.
Specifications
Specifications:| Function | Range |
| IP Rating | IP65 |
| Shape | Rectangle |
| Size | 255 x 200 x 80mm |
| Holes | 12 |
| Stepped Rubber Gland Hole Size | 36mm |
| IK Rating | IK08 |
| Material | High quality ABS plastic (Non-Flammable) |
| Ambient Temperature | -5°C to 40°C |
| Storage Temperature | 40°C to 75°C max. 95% humidity |
| Standards | IEC 60529 & IEC 60670 |
| Approvals | CE, RoHS, HF test and IK test + ISO 9001 |
Supplier SKU: VJ25208R
