Major Tech 2-In-1 Cable Finder and DMM | MT91

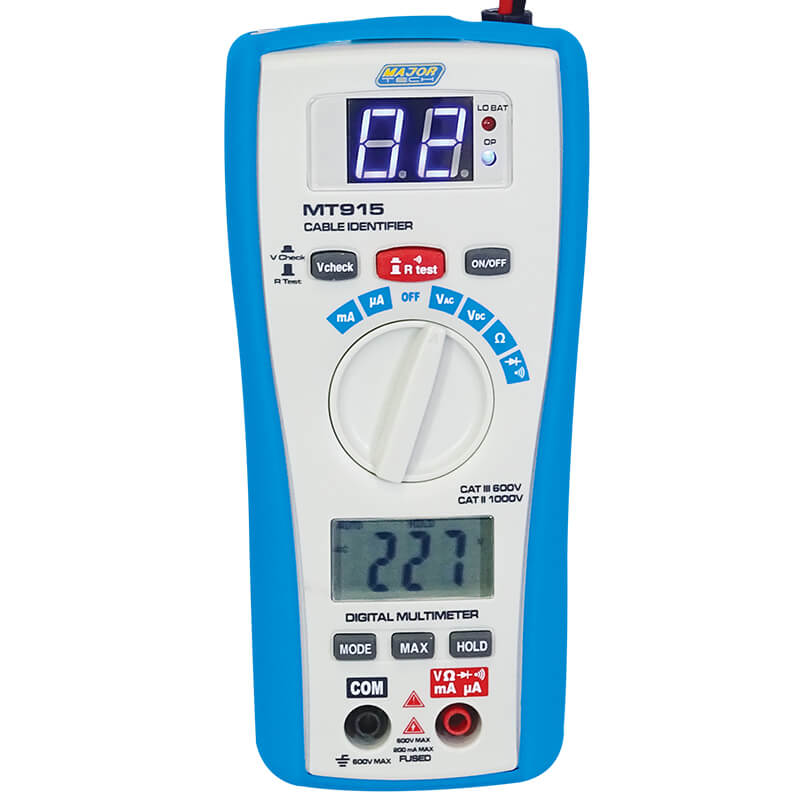

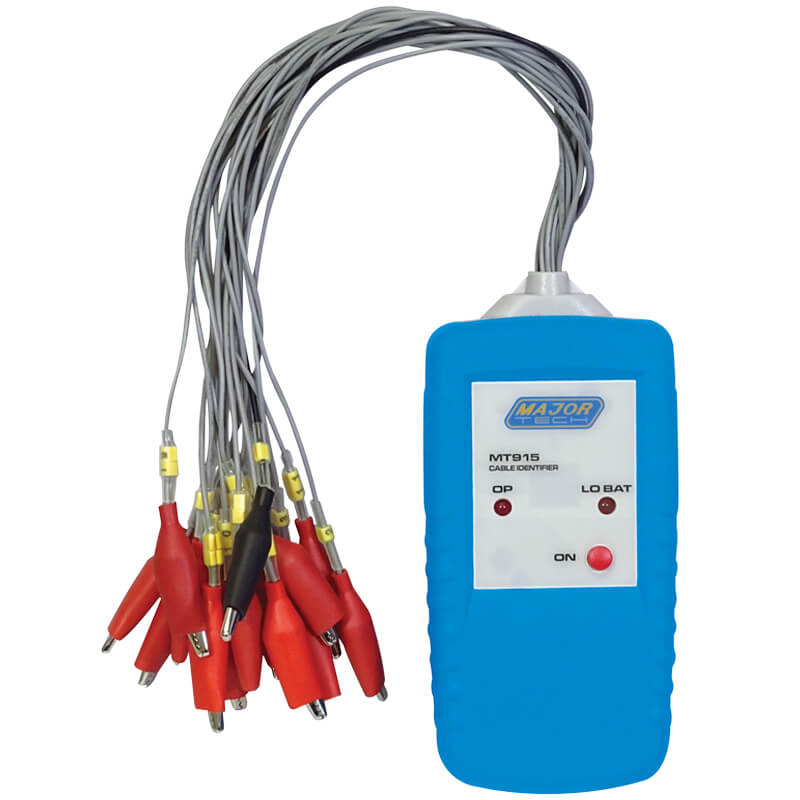

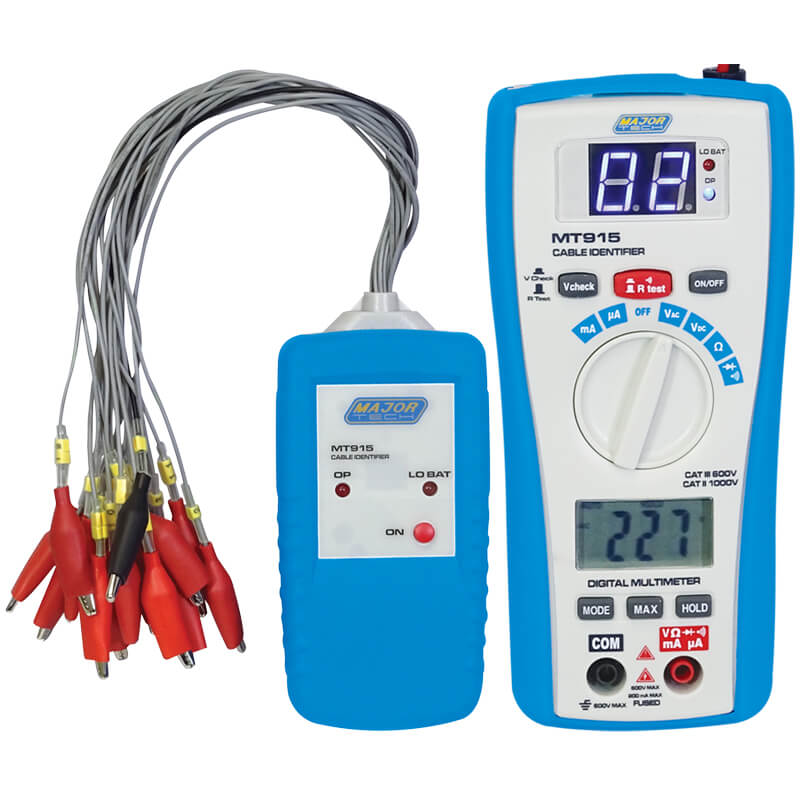

DetailsThe MT915 is a cable identifier using a tracing system, which will save hours by eliminating the “Bell-Out” of any circuit. The MT915 consists of a transmitter & receiver device which enables one person to instantly match up ends of individual cores at either end of a multi-core cable. With the remote kit the meter can test cables installed over long distances either on wall plates or patch panels. The DMM function makes it easy to measure AC Volts, DC Volts, AC and DC Current, Resistance, Continuity and Diode Test.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC Voltage | 0.001mV – 600V | 0.1mV | ±(0.5% + 3 Digits) |
| AC Voltage | 1V – 600V | 1mV | ±(1.0% + 5 Digits) |
| DC Current | 200.0μA – 200.0mA | 0.1μA | ±(1.5% + 3 Digits) |
| AC Current | 200.0μA – 200.0mA | 0.1μA | ±(1.8% + 8 Digits) |
| Resistance | 200.0Ω – 20MΩ | 0.1Ω | ±(1.2% + 3 Digits) |
| Overrange Indication | Yes | ||
| Input Impedance | >7.5MΩ VDC & >7.5MΩ VAC | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Cable Finder | 16 channels; 30KΩ 1.8mA | ||
| Ac Bandwidth | 50Hz – 60Hz | ||
| Digital Display | 2000 | ||
| Min Max | Yes | ||
| Back Light | Yes | ||
| Enclosure | Rubber Holster | ||
| Batteries | 2 x AAA and 9V | ||
| Weight | 315g | ||
| Dimensions | Multimeter: 162 x 74 x 43mm Transmitter: 130 x 69 x 32mm | ||
| Safety Specs | IEC61010-1 CAT III 600V |
Supplier SKU: MT91
