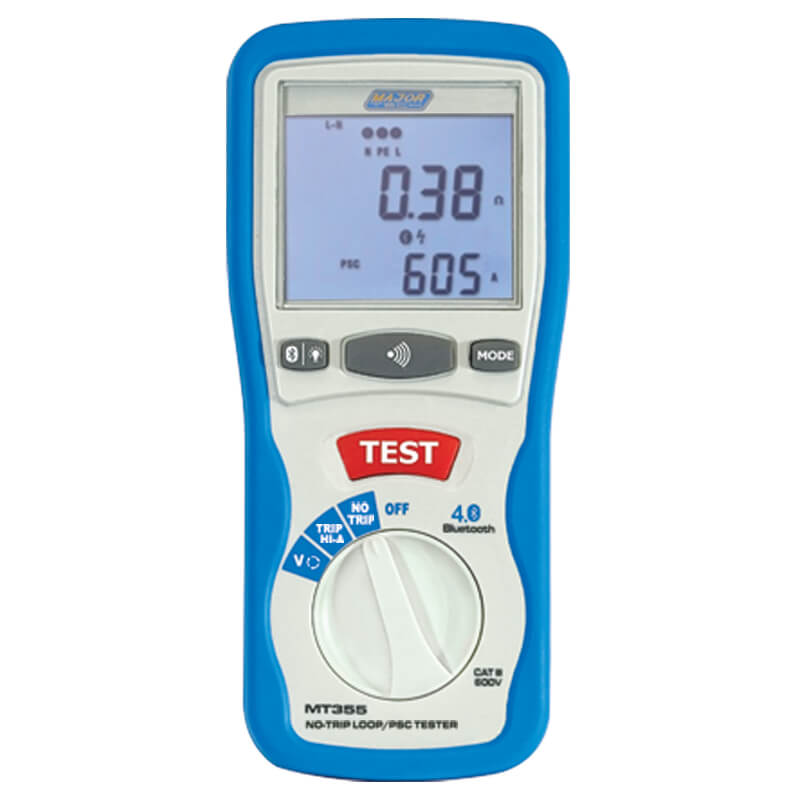

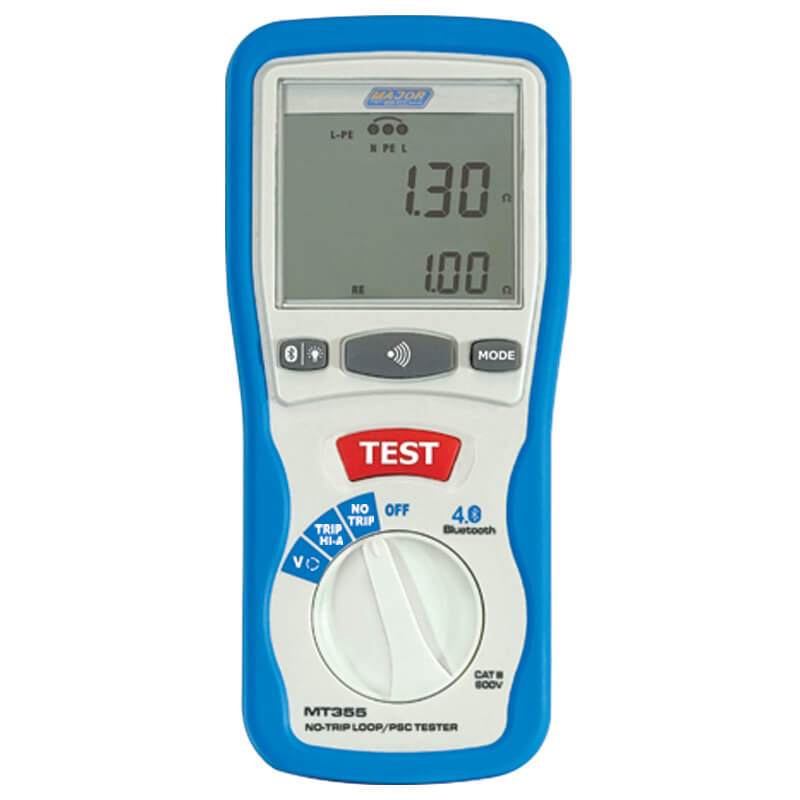

Major Tech Bluetooth No-Trip Loop Impedance & PSC/PSF Tester | MT355
DetailsThe MT355 is a simple to use Earth Loop Impedance tester designed to make the accurate measurements of Earth Loop Impedance and Neutral Loop Impedance (Phase Neutral Impedance) quick and easy. The MT355 performs two types of tests, the first being No-Trip technology to avoid tripping of RCD’s (ELCB’s) whilst performing the Loop Impedance Tests. The second test is the “TRIP” test, where high current
Specifications
Specifications:| Function | Range |
| Loop Impedance L-PE (Hi Amp & No-Trip) | 0.20Ω – 9999Ω |
| RE (Loop Method) | 0.20Ω – 9999Ω |
| L-N Resistance | 0.20Ω – 9999Ω |
| PSC/PFC Range | 0 – 2kA |
| AC Voltage | 50V – 500V |
| DC Voltage | 1V – 500V |
| Frequency | 45Hz – 65Hz |
| Bluetooth | 4.0 |
| Display | LCD Display |
| Batteries | 6 x AA |
| Dimensions | 200 x 95 x 50mm |
| Weight | 700g |
Supplier SKU: MT355
Brand
Major Tech
Title
Major Tech Bluetooth No-Trip Loop Impedance & PSC/PSF Tester | MT355
