Major Tech Phase Rotation Meter | MT930

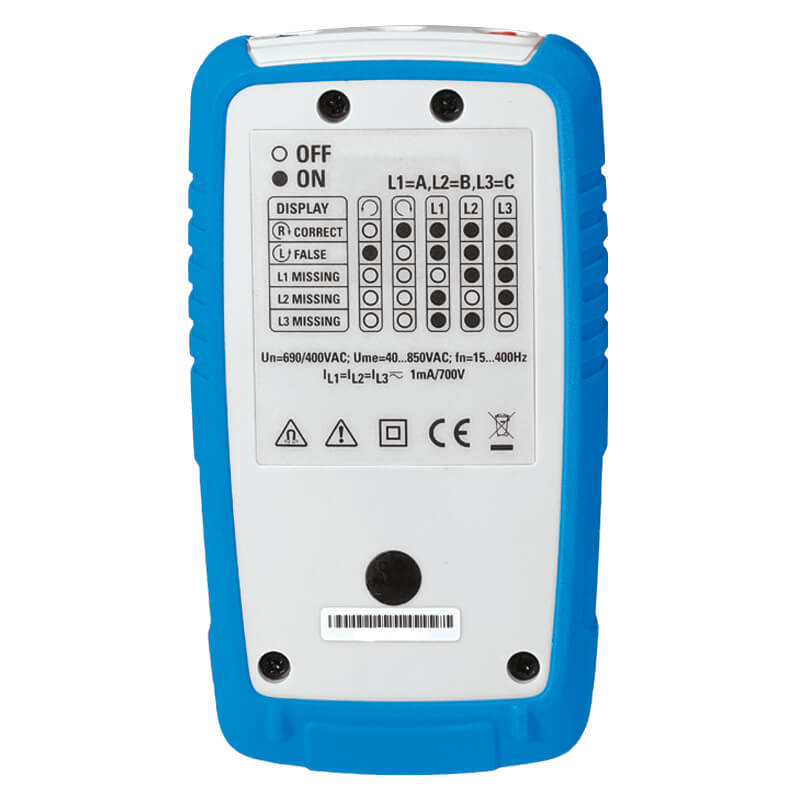

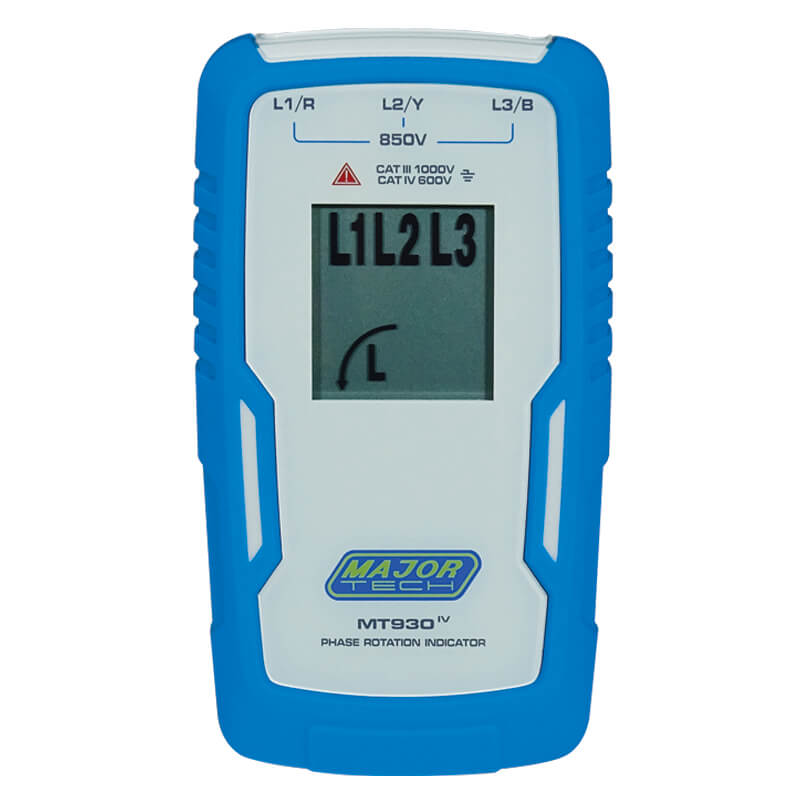

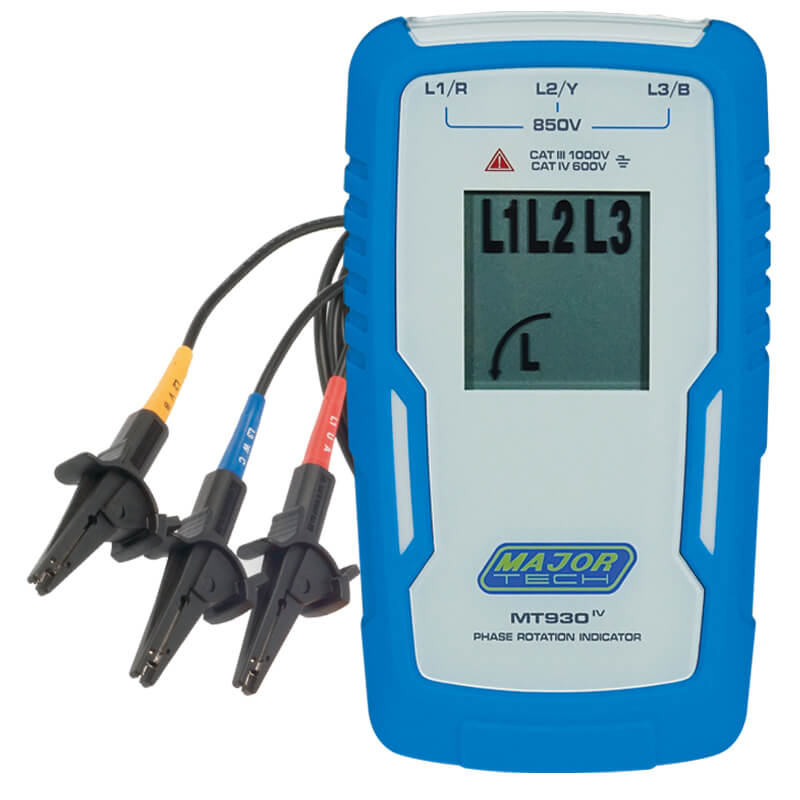

DetailsThe MT930 is a sleek and portable Phase Rotation indicator designed for convenience. Featuring a spacious LCD display, it provides clear and precise indications of phase presence and rotation. When connected to a 3-phase power system, this meter efficiently displays the phase sequence through corresponding symbols on its LCD screen, accompanied by arrows indicating clockwise or anti-clockwise direction for rotation. The MT930 operates seamlessly within a voltage range of 40V AC to 850V AC. Encased in a modern IP40 double moulded rubber housing, it boasts a sturdy and rugged design, making it ideal for heavy-duty usage.
Specifications
Specifications:| Function | Range |
| AC Voltage | 40V – 850V |
| Clamp Diameter Range | 20mm |
| Detection Method | LCD Display |
| Measuring Frequency | 15 – 400Hz |
| Phase Rotation | Clock or Anti clock |
| Visual Indication | LCD Indication |
| Colours | Red, Yellow, Blue |
| Casing | Over Moulded case |
| Weight | 135.6g |
| Dimensions | 135 x 75 x 31mm |
| Safety Specs | IEC61010-1 CAT III 1000V |
Supplier SKU: MT930
