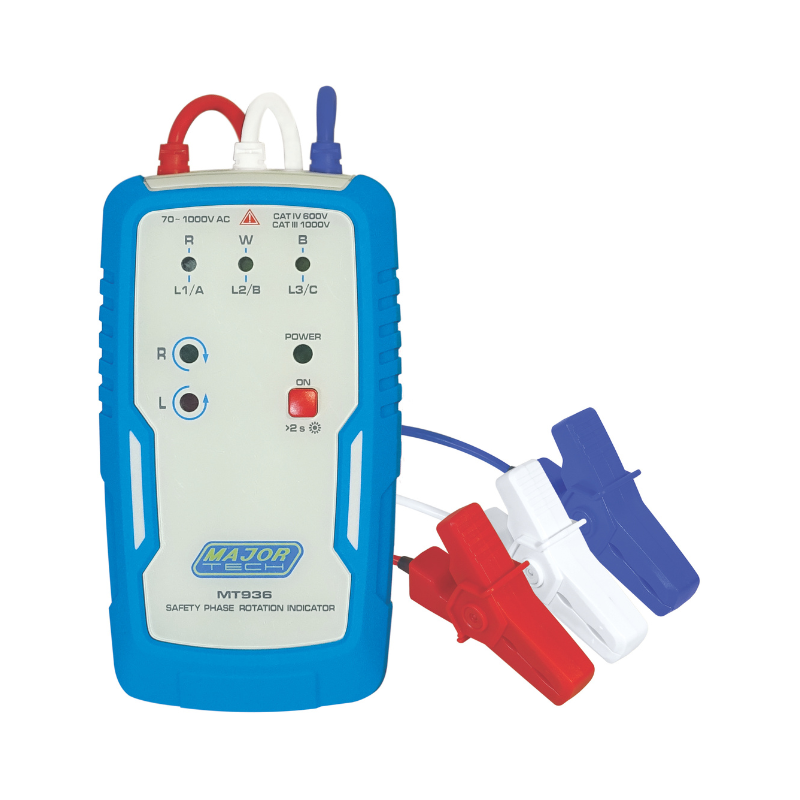

Major Tech Non-Contact Safety Phase Indicator | MT936
DetailsThe MT936 is a professional Non-Contact Phase Rotation Meter designed to safely and accurately determine phase detection. This innovative tester clamps over insulated conductors, eliminating the need for direct contact and ensuring effortless 3-phase measurements from 70V to 1000V AC within a 45Hz to 66Hz frequency range. 3 Green LED’s indicate that the insulated clamps are connected, and if the phase sequence is correct a green LED will indicate a clockwise direction. If the phases are reversed a red LED will be lit indicating anti-clockwise and an audible buzzer will sound. Designed to meet IEC 61010-1 (CAT IV 600V / CAT III 1000V) standards and features a brightness button for enhanced LED visibility even in bright sunlight. The built-in magnet allows a secure attachment to metallic surface allowing hands free operation, while its compact, lightweight design and IP40 dust-proof rating ensures durability. Perfect for electricians and engineers, the MT936 offers precise, reliable performance in any environment.
Specifications
Specifications:| Function | Range |
| AC Voltage | 70V – 1000V |
| Clamp Diameter Range | Ø2.4 – 30mm |
| Detection Method | Electrostatic Induction |
| Insulation Resistance | 10MΩ or more/1000V between the tip of the measurement clip and enclosure |
| Measuring Frequency | 45 – 66Hz |
| Phase Rotation | Clock and Anti Clock |
| Visual Indication | Super Bright LED’s, audio |
| Phase Colours | Red, White, Blue |
| Cable Length | 80cm approx |
| Size | 135 x 75 x 31mm |
| Weight | 340g |
Supplier SKU: MT936
