FEATURES
• 8× PoE+ Ports - Supports IEEE 802.3af/at standards to power devices such as IP cameras, access points and VoIP phones
• 65W PoE Power Budget - Provides up to 30W per PoE port with a total power budget of 65W for stable device deployment
• PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE powered devices
• Fast Ethernet Connectivity - 10× 10/100Mbps RJ45 ports deliver reliable wired networking for homes, offices and surveillance systems
• Extend Mode up to 250m - Extends PoE transmission distance up to 250m for flexible camera and device placement
• Durable Metal Housing - Robust metal design with desktop or wall-mount installation for long-term reliability
SPECIFICATIONS
DIMENSIONS (W × D × H)
• 171 × 98 × 27mm
POE PORTS
• 8× PoE+ Ports (Ports 1~8)
• Standard: IEEE 802.3af/at Powered Devices
• PoE Power Budget: 65W
INTERFACES
• 10× 10/100Mbps RJ45 Ports
• Auto-Negotiation, Auto MDI/MDIX
EXTERNAL POWER SUPPLY
• External Power Adapter (Output: 53.5V 1.31A)
INSTALLATION
• Desktop
• Wall Mount
STANDARDS AND PROTOCOLS
• IEEE 802.3x Flow Control
DATA RATES
• 10/100Mbps at Half-Duplex
• 20/200Mbps at Full-Duplex
JUMBO FRAME
• 2KB
MAC ADDRESS TABLE
• 2K
MAX HEAT DISSIPATION
• 10.064 BTU/h (No PD Connected)
• 263.568 BTU/h (With 65W PD Connected)
ENVIRONMENT
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH Non-Condensing
• Storage Humidity: 5~95% RH Non-Condensing
Brand
Mercusys
Title

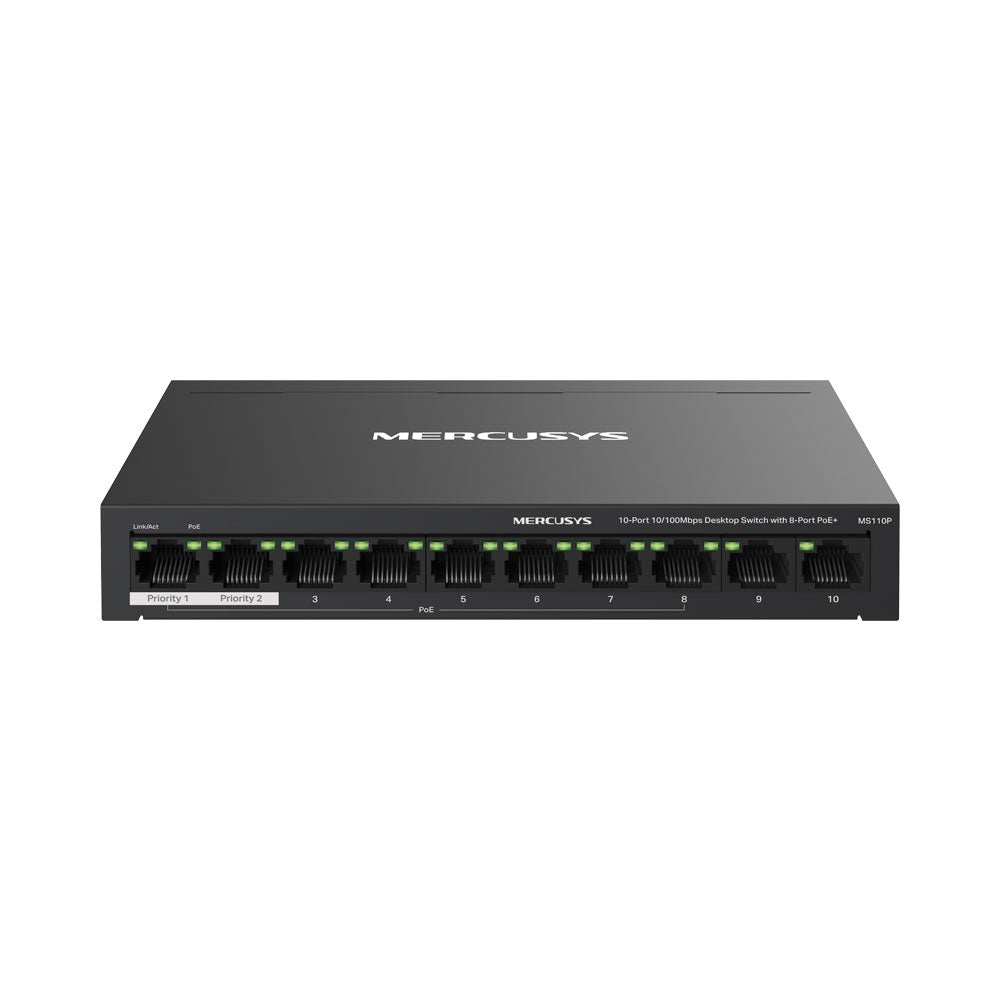

MERCUSYS 10-PORT DESKTOP SWITCH WITH 8-PORT POE+ - NET-MER-MS110P
