FEATURES
• 4× PoE+ Ports - Supports IEEE 802.3af/at standards to power devices such as IP cameras, access points and VoIP phones
• 40W PoE Power Budget - Provides up to 30W per PoE port with a total power budget of 40W for reliable device deployment
• PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE-powered devices
• Fast Ethernet Connectivity - 6× 10/100Mbps RJ45 ports deliver stable wired networking for home or small business setups
• Extend Mode up to 250m - Extend Mode allows PoE transmission and data up to 250m, ideal for surveillance deployments
• Durable Metal Housing - Compact, robust metal design with desktop or wall-mount installation options
SPECIFICATIONS
DIMENSIONS (W × D × H)
• 99.8 × 98 × 25mm
POE PORTS
• 4× PoE+ Ports (Ports 1~4)
• Standard: IEEE 802.3af/at Powered Devices
• PoE Power Budget: 40W
INTERFACES
• 6× 10/100Mbps RJ45 Ports
• Auto-Negotiation, Auto MDI/MDIX
EXTERNAL POWER SUPPLY
• External Power Adapter (Output: 53.5V 0.81A)
INSTALLATION
• Desktop
• Wall Mount
STANDARDS AND PROTOCOLS
• IEEE 802.3x Flow Control
DATA RATES
• 10/100Mbps at Half-Duplex
• 20/200Mbps at Full-Duplex
JUMBO FRAME
• 2KB
MAC ADDRESS TABLE
• 2K
MAX POWER CONSUMPTION
• 1.87W (220V 50Hz, No PD Connected)
• 44.8W (220V 50Hz, With 40W PD Connected)
MAX HEAT DISSIPATION
• 6.34 BTU/h (No PD Connected)
• 152.32 BTU/h (With 40W PD Connected)
ENVIRONMENT
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH Non-Condensing
• Storage Humidity: 5~95% RH Non-Condensing
Brand
Mercusys
Title

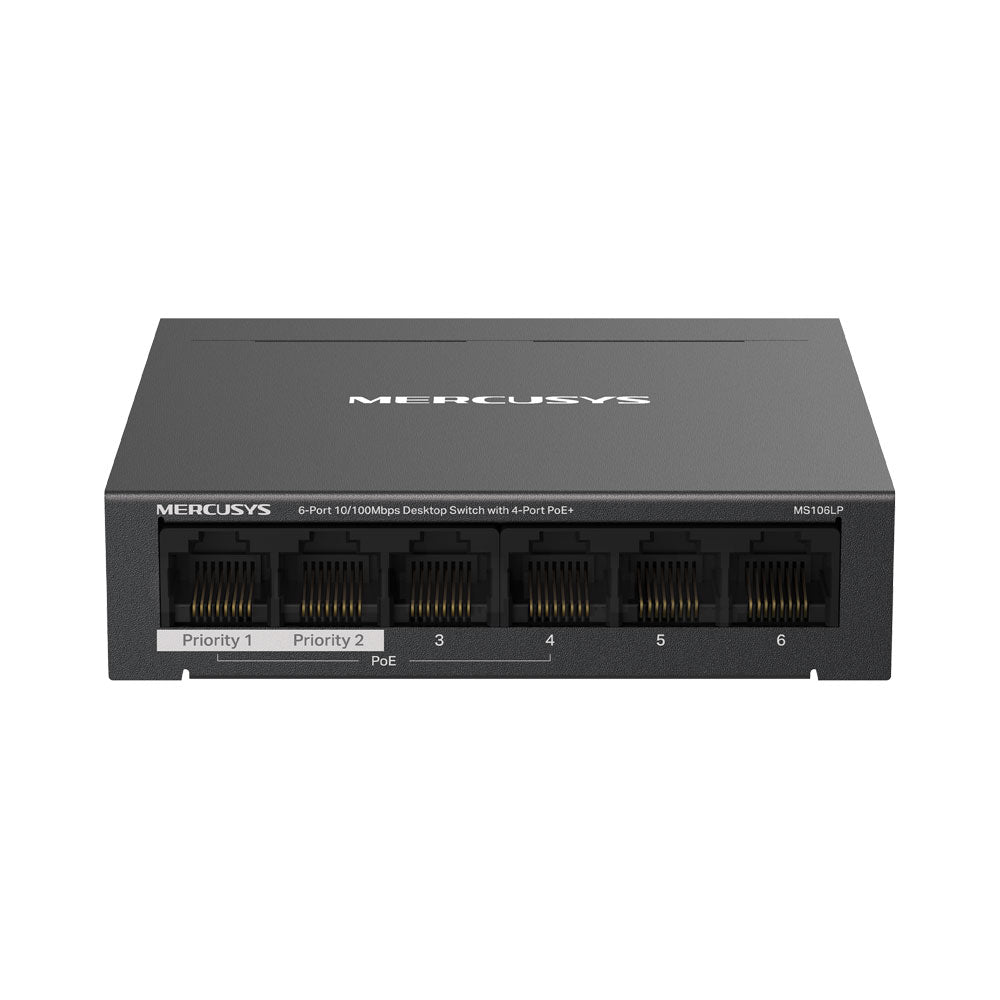

MERCUSYS 6-PORT DESKTOP SWITCH WITH 4-PORT POE+ - NET-MER-MS106LP
