FEATURES
• AX1500 Dual-Band Wi-Fi 6 - 1,201Mbps (5.0GHz) plus 300Mbps (2.4GHz) for fast and stable wireless performance
• Whole-Home Mesh Coverage - Halo units work together to create one unified Wi-Fi network with seamless roaming
• Faster and More Efficient Wi-Fi 6 - OFDMA and MU-MIMO technologies improve network capacity and reduce latency
• Seamless Roaming - Automatically connects devices to the strongest signal while moving around your home
• Gigabit Wired Connections - Multiple Gigabit ports provide high-speed wired connectivity for smart TVs, consoles and PCs
• Easy Setup and Management - Configure and manage your network easily using the Mercusys App
• Guest Network Support - Provides secure internet access for visitors without sharing your main network
* Please note that the Halo H series and S series cannot work together
SPECIFICATIONS
WIRELESS STANDARDS
• Wi-Fi 6
• IEEE 802.11ax/ac/n/a - 5.0GHz
• IEEE 802.11n/b/g - 2.4GHz
SIGNAL RATE
• 1,201Mbps on 5.0GHz
• 300Mbps on 2.4GHz
WI-FI RANGE
• 2-Pack: up to 350m² Coverage
RECEPTION SENSITIVITY
2.4GHz
• 11g 6Mbps: -96.5dBm
• 11g 54Mbps: -78dBm
5.0GHz
• 11a 6Mbps: -96dBm
• 11a 54Mbps: -78dBm
• 11ac VHT20 MCS8: -74.5dBm
• 11ac VHT40 MCS9: -70.5dBm
• 11ac VHT80 MCS9: -66.5dBm
• 11ax HE20 MCS11: -66dBm
• 11ax HE40 MCS11: -63dBm
• 11ax HE80 MCS11: -61dBm
TRANSMISSION POWER
• 2.4GHz: <20dBm (EIRP)
• 5.0GHz: <23dBm (EIRP)
WIRELESS SECURITY
• WPA-PSK
• WPA2-PSK
• WPA3
MESH PROTOCOL
• 802.11k/v/r
OPERATION MODES
• Router Mode
• Access Point Mode
QUALITY OF SERVICE
• WMM
WAN TYPE
• Dynamic IP
• Static IP
• PPPoE
• L2TP
• PPTP
MANAGEMENT
• Local Management
• Remote Management
• Multi-Managers
DHCP
• Server
• Client
FIREWALL SECURITY
• SPI Firewall
PROTOCOLS
• IPv4
• IPv6
GUEST NETWORK
• 2.4GHz Guest Network
• 5.0GHz Guest Network
DIMENSIONS (W × D × H)
• 88 × 88 × 88mm
INTERFACES
• 3× Gigabit WAN/LAN Ports
BUTTON
• Reset Button
WEB SERVER
• Device Management via HTTP/HTTPS
• Port: 80/443, Protocol TCP
DHCP Server
• Automatic IP Address Assignment
• Port: 67, Protocol UDP
DNS
• Port: 53, Protocol TCP & UDP
APP MANAGEMENT
• Manage and Configure via Mobile App
• Port: 20001, Protocol TCP
• Port: 20002, Protocol UDP
ENVIRONMENT
• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~0% Non-Condensing
Brand
Mercusys
Title

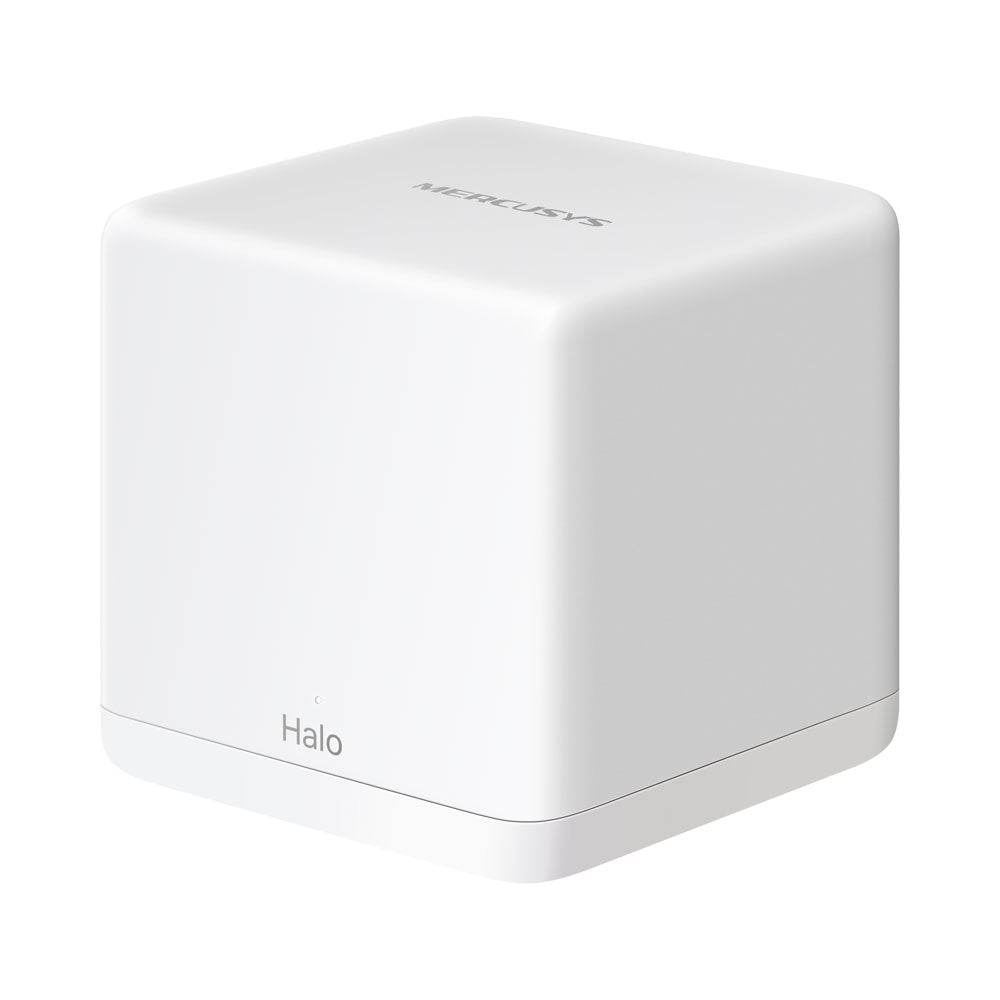

MERCUSYS AX1500 WHOLE HOME MESH WIFI SYSTEM - 2PK - NET-HALO-H60X-2PK
