FEATURES
• Optimal Wi-Fi 6 Speeds - Delivers combined wireless speeds of up to 3Gbps for faster browsing, streaming and downloads across multiple devices
• Extended Wi-Fi Coverage - Four multi-directional high-gain antennas with Beamforming provide stable connections and stronger signals throughout your home
• More Devices, More Performance - MU-MIMO and OFDMA technologies reduce congestion and improve network efficiency for multiple devices
• Gigabit Wired Connectivity - Gigabit Ethernet ports enable high-speed wired connections for PCs, smart TVs and gaming consoles
• Smart Connect Technology - Automatically selects the best available Wi-Fi band for each connected device
• Advanced Security Protection - WPA3 encryption enhances wireless security and protects your network from unauthorised access
• Reduced Wi-Fi Interference - BSS colouring minimises interference from neighbouring networks to improve wireless performance
• Energy-Efficient Networking - Target Wake Time (TWT) reduces power consumption for connected mobile and IoT devices
SPECIFICATIONS
WIRELESS
• Wireless Standards: Compatible with IEEE 802.11ax/ac/a/b/g/n Wi-Fi standards
• Signal Rate:
- 2402Mbps on 5.0GHz
- 574Mbps on 2.4GHz
RECEPTION SENSITIVITY
• 11g 6Mbps: -97dBm
• 11g 54Mbps: -79dBm
• 11n HT40 MCS7: -74dBm
• 11n HT20 MCS7: -77dBm
• 11a 6Mbps: -97dBm
• 11a 54Mbps: -79dBm
• 11ac VHT20 MCS8: -75dBm
• 11ac VHT40 MCS9: -71dBm
• 11ac VHT80 MCS9: -67dBm
• 11ax VHT20 MCS11: -67dBm
• 11ax VHT40 MCS11: -64dBm
• 11ax VHT80 MCS11: -61dBm
TRANSMISSION POWER
• 2.4GHz: <20dBm (EIRP)
• 5.0GHz: <23dBm (Band 1, Band 2)
• 5.0GHz: <30dBm (Band 3)
WIRELESS SECURITY
• WEP
• WPA
• WPA2-Personal
• WPA2 / WPA3-Personal
WIRELESS FUNCTIONS
• Enable / Disable Wireless Radio
• WMM
WAN TYPE
• Dynamic IP
• Static IP
• PPPoE
• L2TP
• PPTP
MANAGEMENT
• Access Control
• Local Management
• Remote Management
DHCP
• Server
• DHCP Client List
NAT FORWARDING
• Port Forwarding
• Port Triggering
• UPnP
• DMZ
FIREWALL SECURITY
• SPI Firewall
• IP and MAC Address Binding
GUEST NETWORK
• 2.4GHz Guest Network
• 5.0GHz Guest Network
VPN SERVER
• OpenVPN
• PPTP
HARDWARE
• Dimensions (W × D × H): 208.8 × 171.6 × 41.7mm
• Interfaces:
- 1× Gigabit WAN Port
- 3× Gigabit LAN Ports
• Button: Reset / WPS Button
• Antenna Type: 4× 5dBi Fixed Omnidirectional Antennas
ENVIRONMENT
• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)
Brand
Mercusys
Title

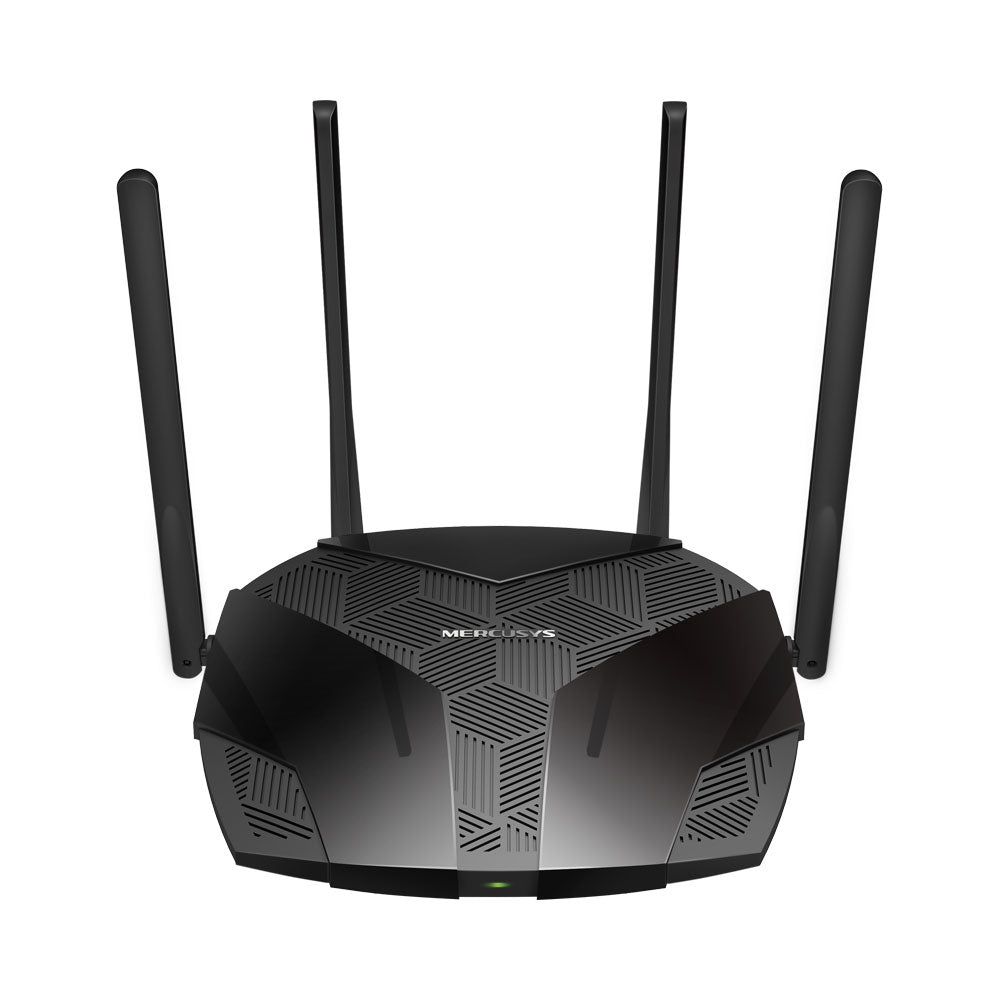

MERCUSYS AX3000 DUAL BAND WIFI 6 ROUTER - NET-MER-MR80X
