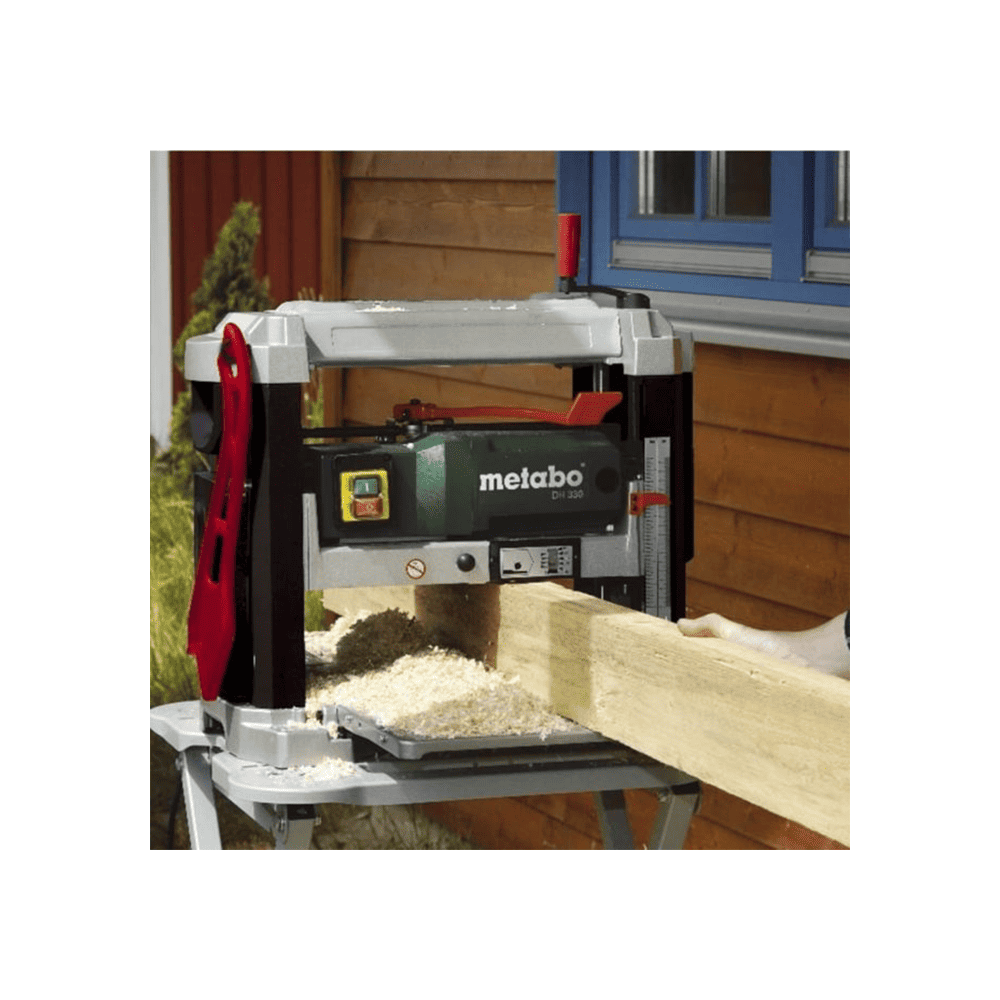

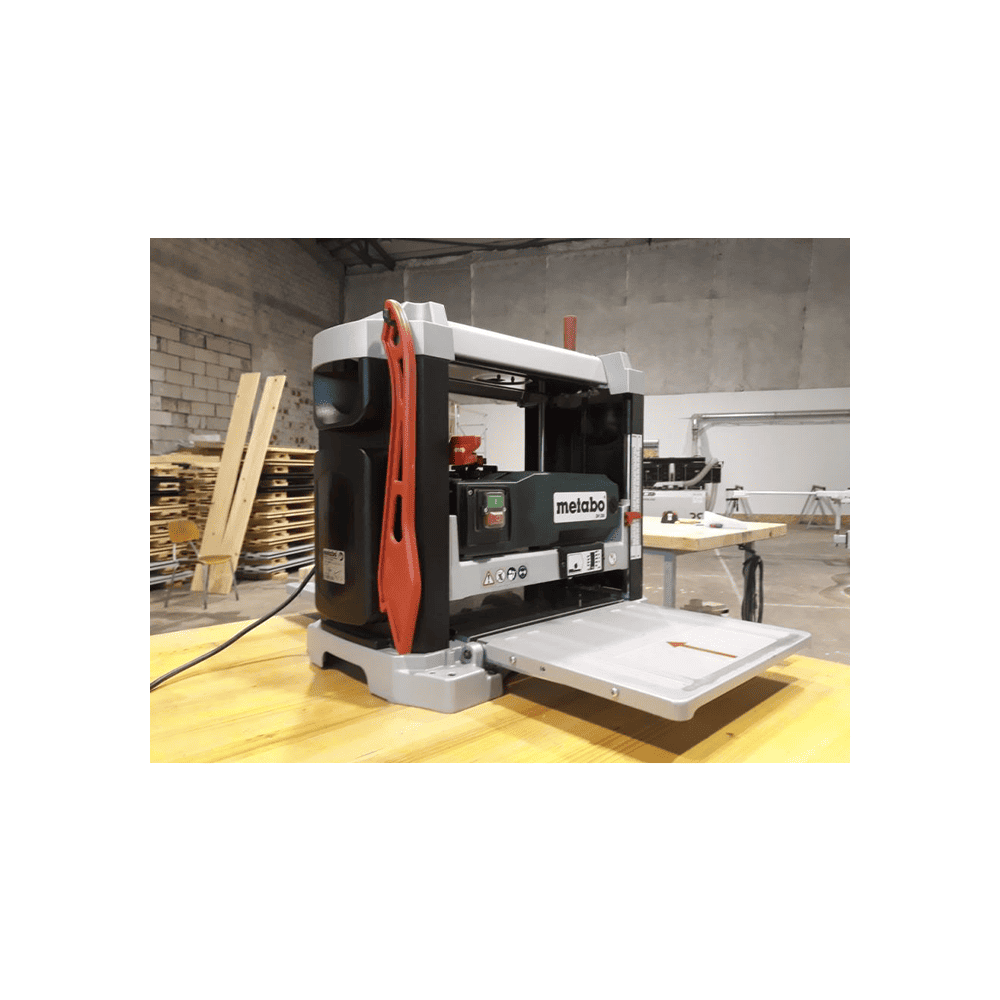

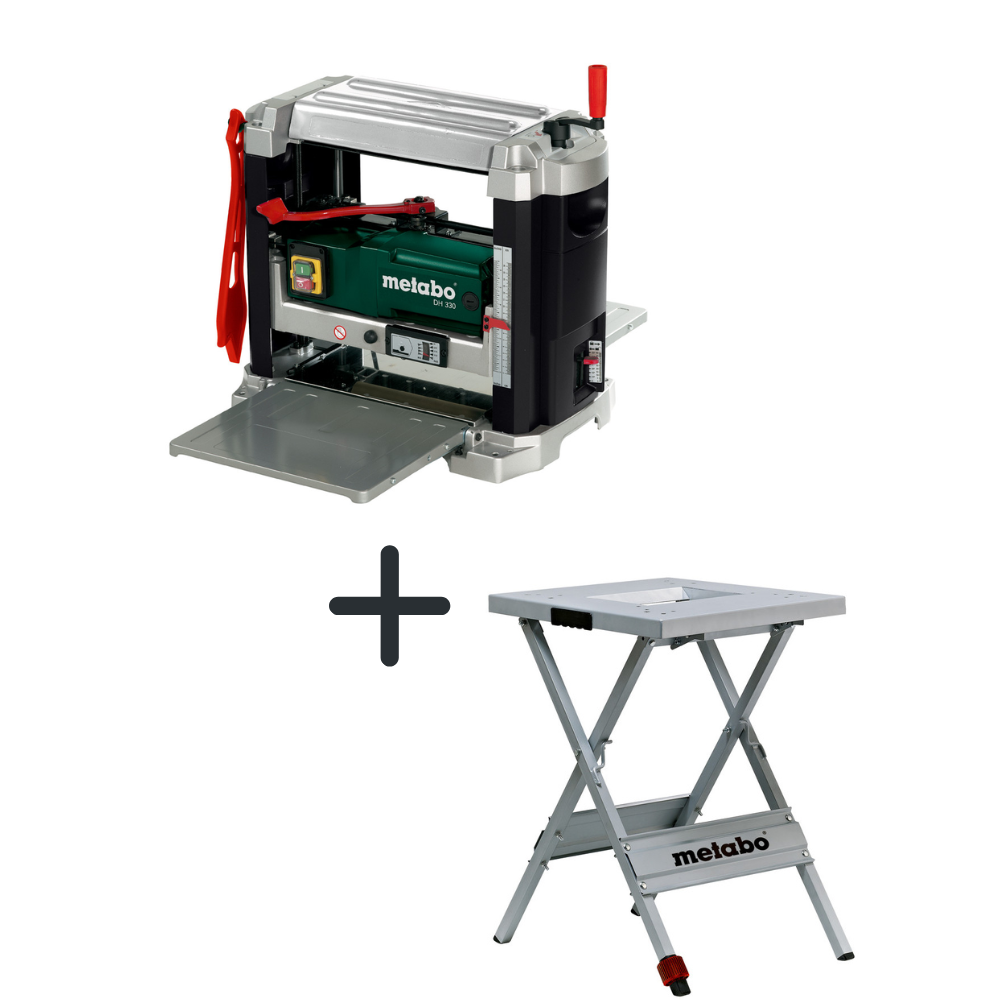

Bench Thicknesser DH 330
USER BENEFITS:
- Ideal for mobile use due to its low weight.
- Stable gear for uniform work piece feed.
- Convenient height adjustment with crank handle.
- Easy setting of standard passage heights using stop points.
- Powerful universal motor for powerful lugging drive and even planning result.
- Restart protection: prevents unintentional start-up after power supply interruption.
- Precise thickness adjustment for quick and exact planning.
- Ample feed and exit tables support the conveyance of long materials.
- Planning locking mechanism prevents unintentional adjustment of the chip removal setting.
TECHNICAL SPECIFICATION:
Dimensions |
579 x 857 x 574 mm / 1.9 x 2.9 x 1.9 ft |
Chip removal bench thicknesser |
0 – 3 mm // 0 – 1/8 " |
Material thickness table |
Cast aluminium / special steel aluminium |
Thickness table L x W |
840 x 330 mm / 33 x 13 " |
Passage height/width |
152 / 330 mm // 6 / 13 " |
Feed rate |
7 m/min / 16 ft/min |
Diameter of blade shaft |
47 mm / 1 7/8 " |
Number of blades |
2 |
Revolutions of blade shaft |
9800 rpm |
Rated input power |
1800 W |
Weight |
35 kg / 77.2 lbs |
Noise Emission | Uncertainty of measurement K |
4 dB(A) |
Product Type |
Corded, Semi-Stationary |
SCOPE OF DELIVERY:
