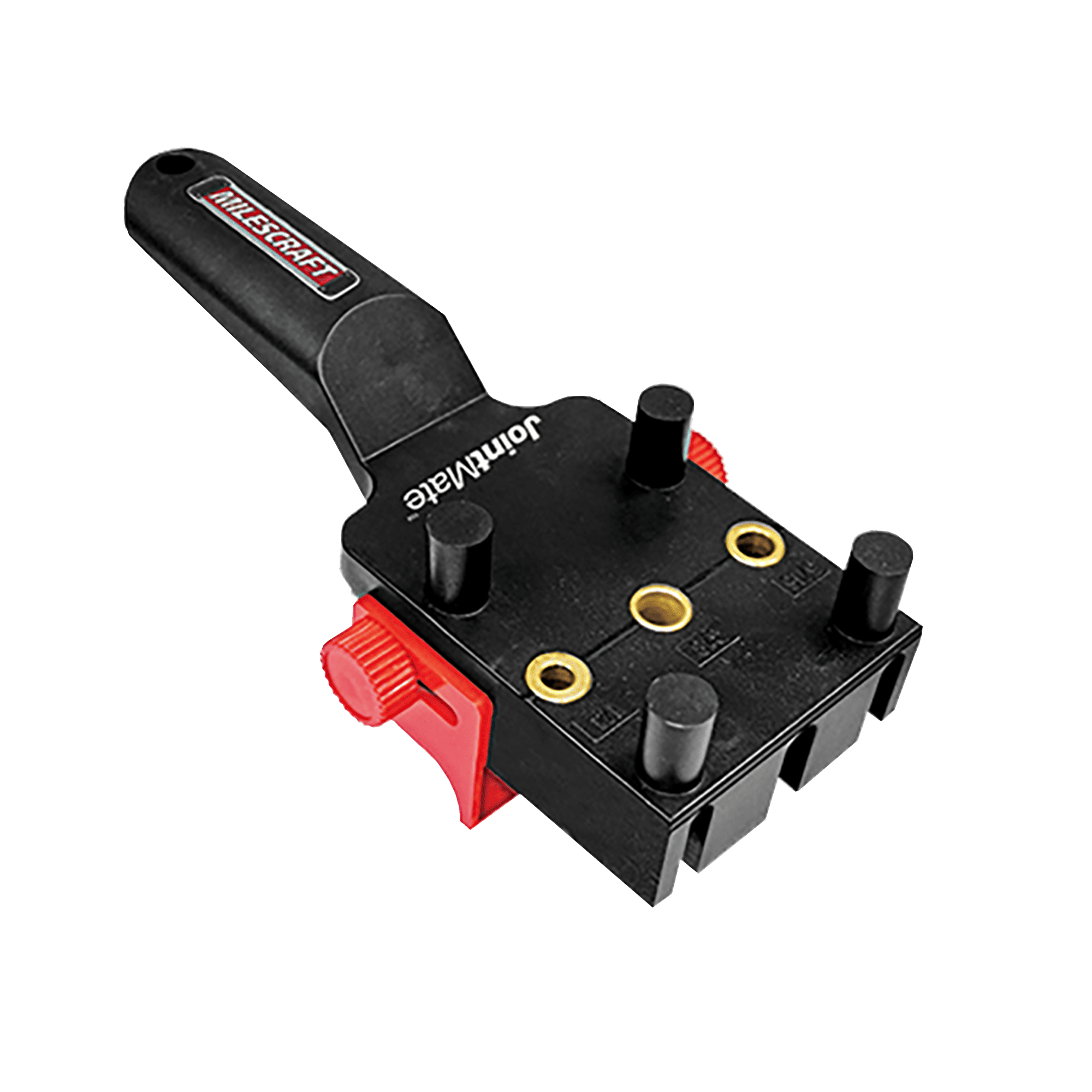

Dowel Jig Kit Metric
DowelJigKit contains everything you need to get started creating strong and accurate doweled joints. The self-centering dowel jig and adjustable fence allow for precise dowel alignment and maximum joint strength. Use with wood boards from 12.7mm to 38mm thick. Now you can perform one-handed alignment and skip the hassle of measuring and marking when drilling corner or edge joints.

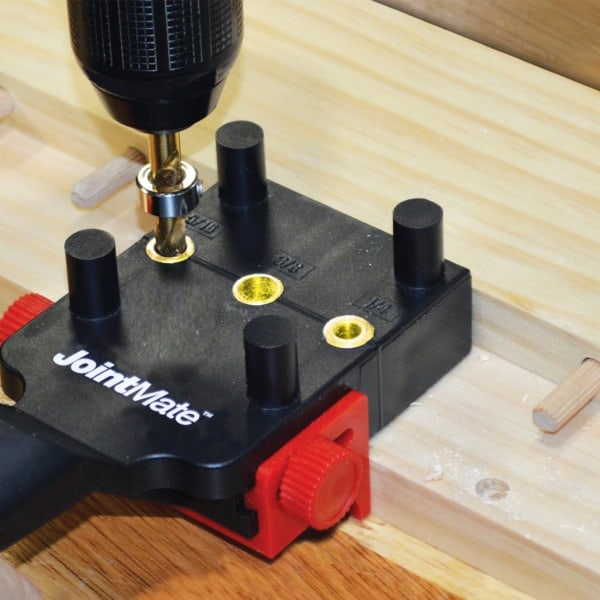

Self-Centering Guide Posts
- Allow for accurate, one-handed alignment for maximum joint strength and precise dowel alignment
Insert Molded Hardened Steel Bushings
- Ensure accurate alignment when drilling for perfectly positioned dowels
- For longer doweling life
Adjustable Guide Fence
- Easily adjust to the depth of the board so that each hole will be precise from one to the next
- Can be removed without removing the guide knobs
- Compatible with 12.7mm to 38mm thick lumber
Steel Dowel/Tenon Centers
- For durable and accurate location marking of dowel holes or in the second board being joined
Fluted Hardwood Dowel Pins
- Chamfered ends add strength and endurance to your joined surfaces
- Includes 3 sizes – 6mm, 8mm and 10mm
Brad Point Drill Bits
- Bits ensure pinpoint accuracy
- Includes 3 sizes – 6mm, 8mm and 10mm
Steel Drill Stops
- For durable performance
- Includes 3 sizes – 6mm, 8mm and 10mm
Specifications
| Drill Bushings, Stops, Bits, and Pin Sizes | 6mm, 8mm and 10mm |
| Minimum Board Width (not thickness) for 6mm & 8mm bushing | 50.8mm |
| Minimum Board Width (not thickness) for 10mm bushing | 82.5mm |
| Closest distance for dowel from board end (for6mm & 8mm bushing) | 28.5mm |
| Closest distance for dowel from board end (for 10mm bushing) | 41.2mm |
| JointMate Body Material | ABS Plastic |

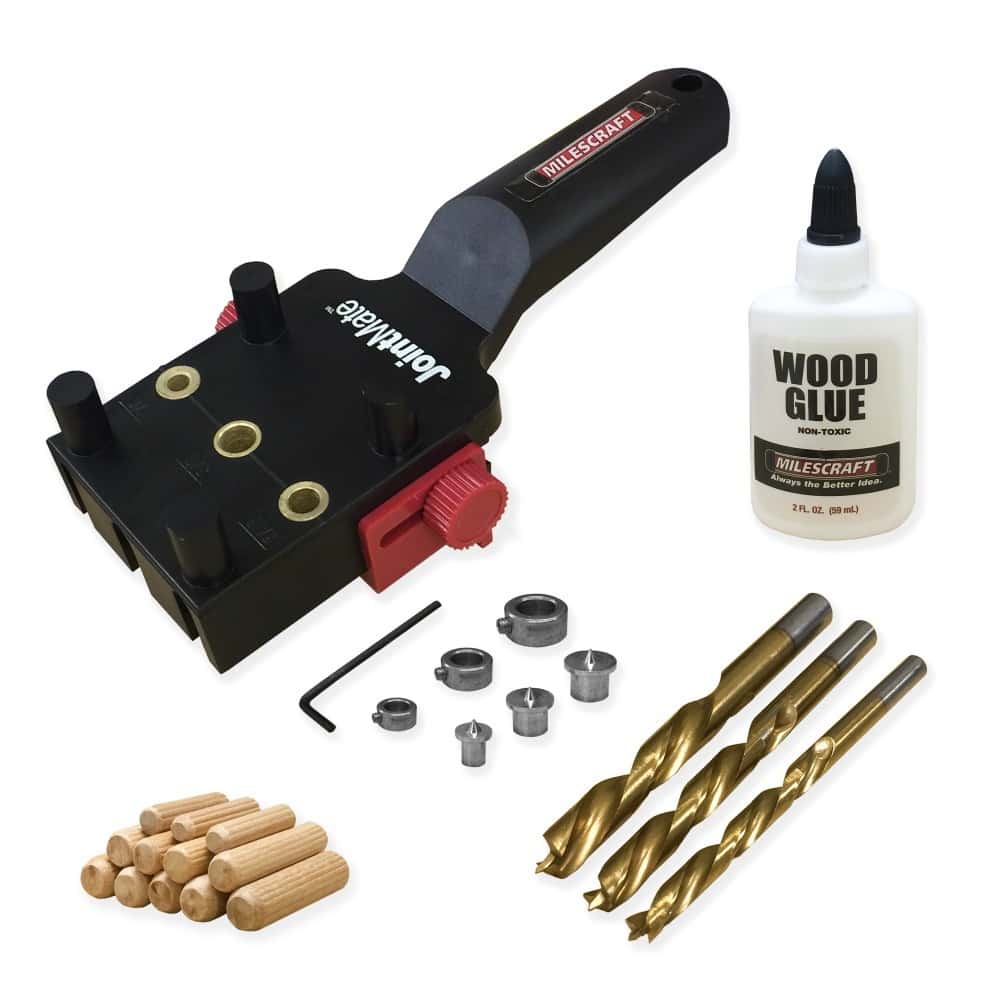

| Includes | JointMate, (62) Dowel Pins, (6) Dowel Centers, (3) Brad Point Bits, (3) Drill Stops, Allen Wrench, Wood Glue, Heavy-Duty Storage Case. (82 piece kit) |
