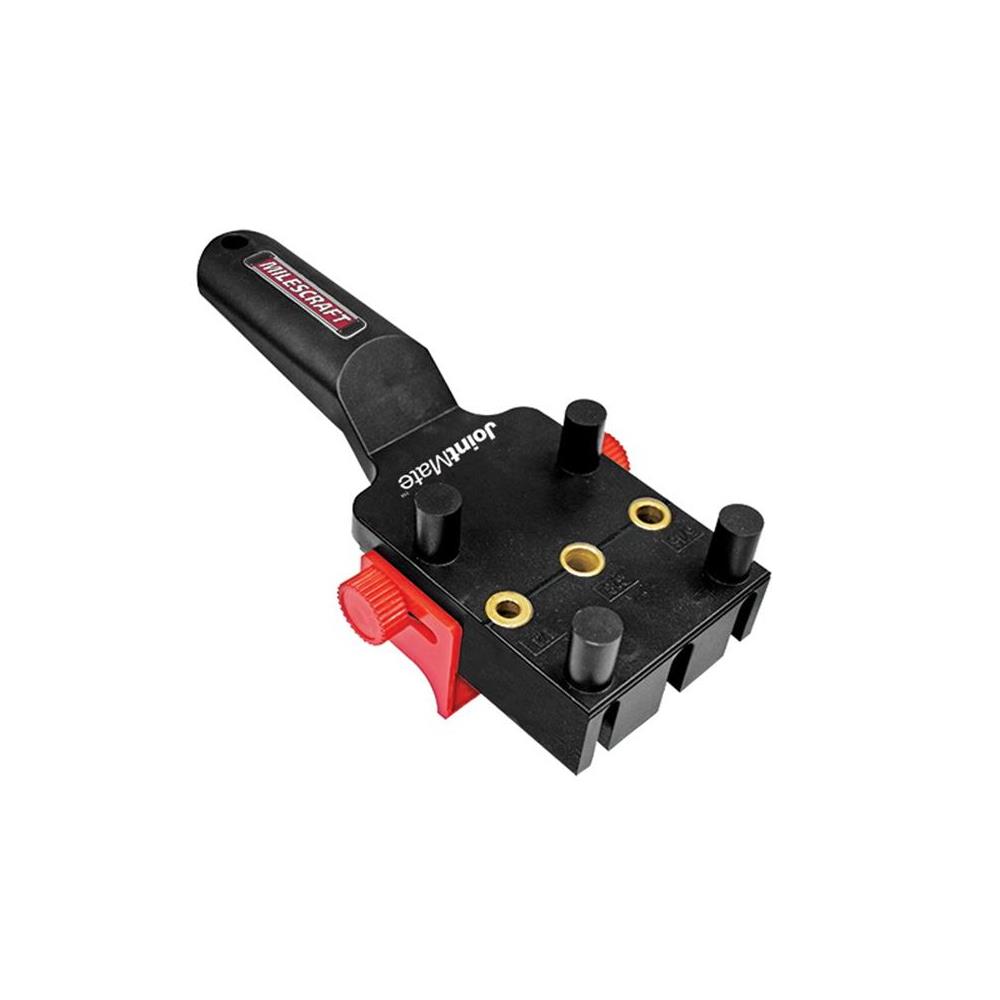

Joint Mate Metric
Perform one-handed alignment and skip the hassle of measuring and marking when drilling corner or edge joints with JointMate. JointMate allows for quick and accurately doweled corner, edge or surface joints. With minimal set-up, and no exposed or covered mechanical fasteners, JointMate makes doweling easy.
Self-Centering Guide Posts
- Allow for accurate, one-handed alignment for maximum joint strength and precise dowel alignment
Insert Molded Hardened Steel Bushings
- Ensure accurate alignment when drilling for perfectly positioned dowels
- For longer doweling life
Adjustable Guide Fence
- Easily adjust to the depth of the board so that each hole will be precise from one to the next
- Can be removed without removing the guide knobs
- Compatible with 12.7mm to 38mm thick lumber
Specifications
| Bushing Sizes | 6mm, 8mm and 10mm |
| Minimum Board Width (not thickness) for 6mm & 8mm bushing | 50.8mm |
| Minimum Board Width (not thickness) for 10mm bushing | 82.5mm |
| Closest distance for dowel from board end (for 6mm and 8mm bushing) | 28.5mm |
| Closest distance for dowel from board end (for 10mm bushing) | 41.3mm |
| Bushing Material | Metal |
| JointMate Body Material | ABS Plastic |
