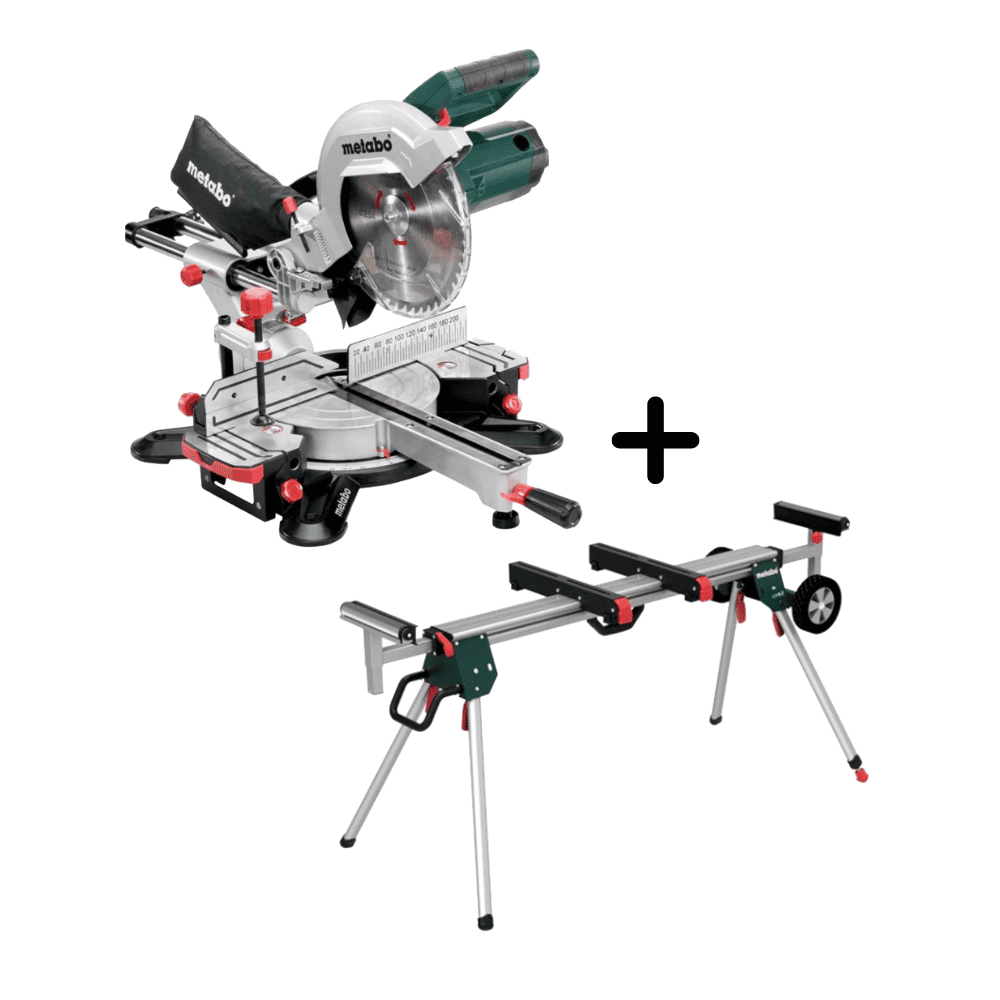

Mitre Saw KGS 254 M-KSU 401 Mitre saw stand Combo
USER BENEFITS:
- Sliding function for wide work pieces.
- Compact light weight, suitable also for one-handed transport
- Robust die-cast aluminium design for the highest demands
- Easy transport thanks to ergonomically-designed handles and saw head lock
- Effective dust extraction via integrated dust scoop
- Fast and precise setting of common angles using stop points
- Laser for exact display of the cutting line (mains powered, no batteries required)
- Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
- Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
- Sliding high rear fence profiles for safe sawing
- Material clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- Saw head can be inclined to the left, with additional angle range for undercuts
- All scales and operating elements are visible from the working position and can be operated intuitively
- Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
TECHNICAL SPECIFICATION:
| Dimensions | 790 x 515 x 515 mm |
|---|---|
| Support surface | 340 x 775 mm |
| Maximum cutting width 90°/45° | 305 / 205 mm |
| Maximum cutting depth at 90°/45° | 92 / 47 mm |
| Cutting capacity 90°/90° | 305 x 92 mm |
| Cutting capacity 45°/45° | 205 x 47 mm |
| Turntable setting left/right | 47 / 47 ° |
| Saw blade tilt left/right | 47 / 2 ° |
| Saw blade | 254 x 30 mm |
| Rated input power S1 100% | 1450 W |
| Rated input power S6 20% | 1800 W |
| No-load speed | 4500 rpm |
| Revolutions at rated load | 3150 rpm |
| Cutting speed | 60 m/s |
| Weight | 16.3 kg |
| Cable length | 2 m |
| Sound pressure level | 99 dB(A) |
| Sound power level (LwA) | 106 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
| Product Type | Corded |
SCOPE OF DELIVERY:
- Carbide saw blade (48 teeth)
- 2 Table length extensions
- Length Guide
- Material clamp
- Tool for saw blade change
- Cable winder
- Chip Collection Bag
Ksu 401 stand for mitre saw
USER BENEFITS:- Light and robust stand for mitre saw with trolley function for mobile use also with the saw mounted
- Quickly ready to use thanks to lockable folding legs and adjustment option for safe positioning
- Extendable workpiece supports with rollers and folding guide for precise cutting in series
- Machine carrier (installation without tools) makes it suitable for all the conventional mitre saws of well-known manufacturers
- Including 1 pair of machine carriers (629008000)
- Overall length: 168 cm – 400 cm
- Height of workpiece supports: 92 cm – 99 cm
- Maximum weight load in central part: 250 kg
- Weight: 25 kg
