AMD B650 Chipset | AM5 Socket | DDR5 up to 7200+(OC) MHz | 2× M.2 PCIe 4.0 | Lightning Gen 4 PCIe x16 | 2.5Gbps LAN | Wi-Fi 6E | Bluetooth 5.3 | USB 3.2 Gen 2 10Gbps | 7.1-Channel Audio Boost | Micro-ATX

Quick Specs

• Build on the latest AMD AM5 platform with support for Ryzen™ 9000, 8000, and 7000 Series desktop processors.


• Unleash DDR5 performance with four UDIMM slots supporting up to 256GB at 7200+(OC) MHz with AMD EXPO™.


• Connect at speed with 2.5Gbps LAN, Wi-Fi 6E (6GHz), Bluetooth 5.3, and extensive USB 3.2 Gen 2 ports.


• Install high-speed NVMe storage on two M.2 slots with PCIe 4.0 x4 and M.2 Shield Frozr cooling.


• Game with confidence on a 10+2+1 Duet Rail power design, 6-layer 2oz copper PCB, and Lightning Gen 4 PCIe x16 with Steel Armor.

A rock-solid AM5 foundation for South African gamers and builders who demand DDR5 performance, fast connectivity, and room to grow.

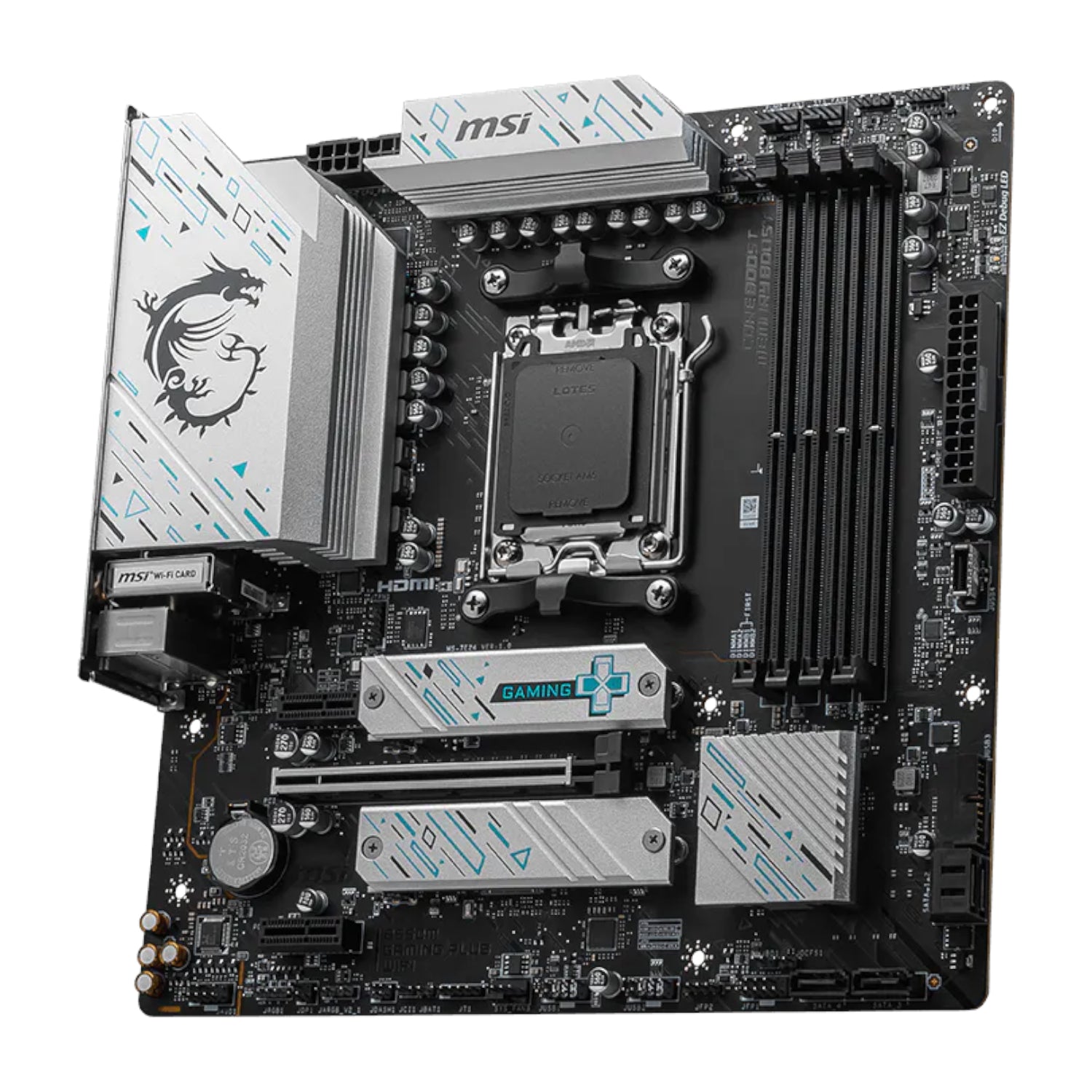

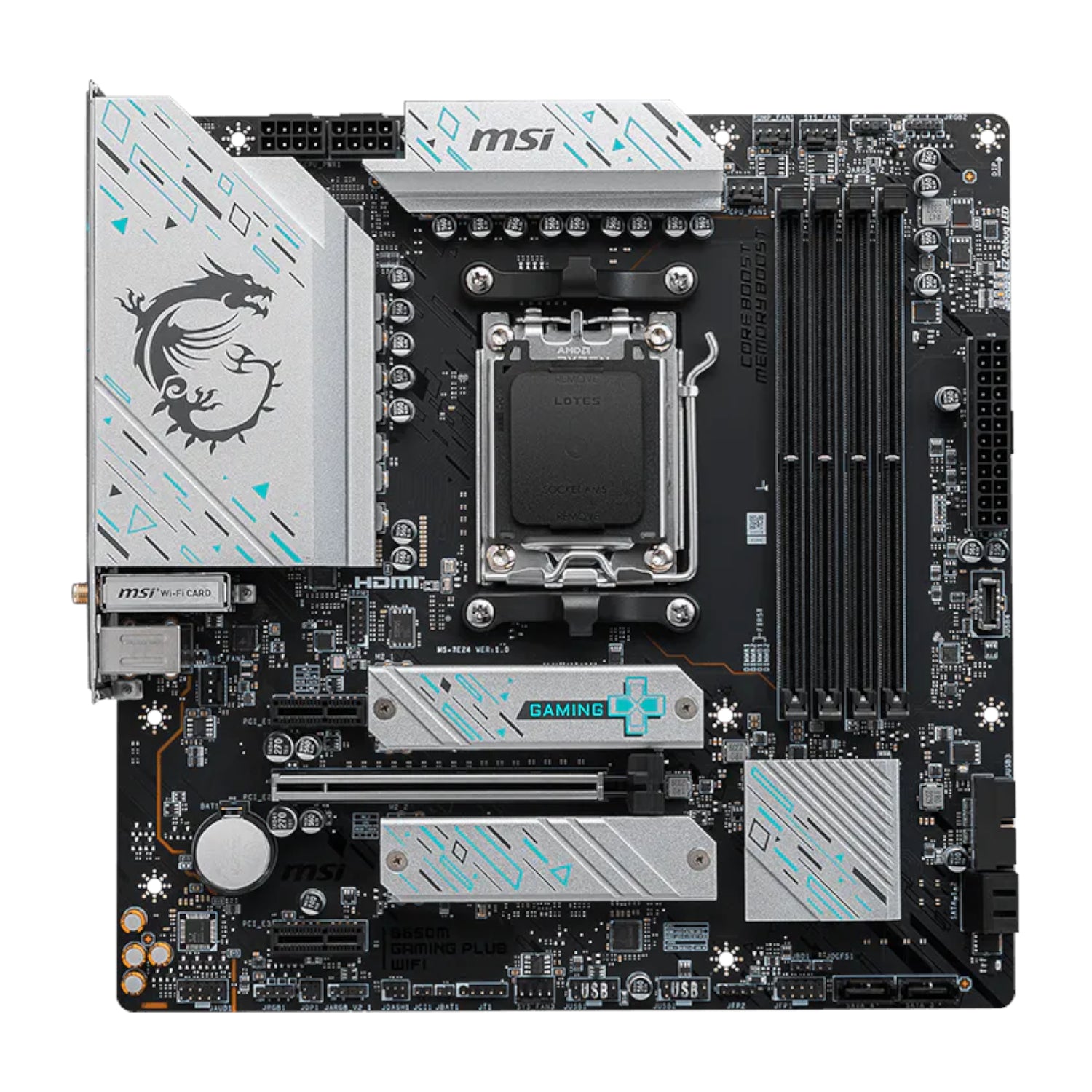

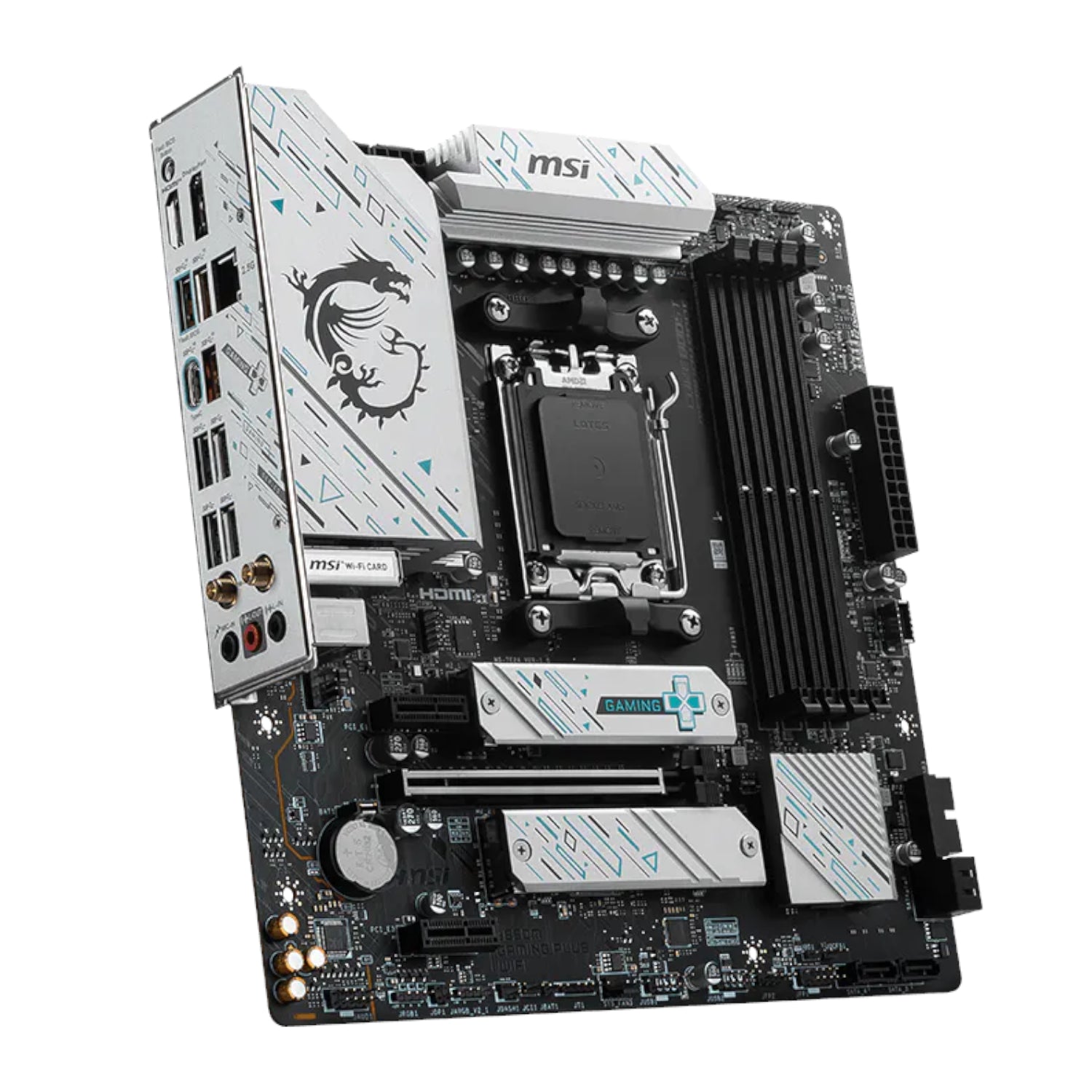

The MSI B650M Gaming Plus WiFi is the AM5 motherboard that delivers where it counts — combining AMD B650 chipset support for the latest Ryzen™ 9000, 8000, and 7000 Series processors with DDR5 memory speeds up to 7200+(OC) MHz and AMD EXPO™ compatibility. Its compact Micro-ATX form factor fits a wide range of cases without sacrificing the features serious builders need: dual M.2 NVMe slots, Lightning Gen 4 PCIe, Wi-Fi 6E, 2.5Gbps Ethernet, and a comprehensive USB layout including USB 3.2 Gen 2 10Gbps. Whether you’re assembling a gaming rig, a content creation workstation, or a high-performance everyday PC, this DDR5 motherboard provides the stable, feature-rich platform to make it happen. For the South African enthusiast who wants MSI quality without the flagship price, this gaming motherboard is the smart choice.

Robust power delivery and thermal engineering for sustained performance.

At the heart of the B650M Gaming Plus WiFi sits a 10+2+1 phase Duet Rail Power System with Core Boost and Memory Boost technology, ensuring clean, stable voltage delivery to your CPU and RAM under heavy loads. The 6-layer PCB with 2oz thickened copper improves signal integrity and heat dissipation across the board. An extended heatsink and heavy plated VRM heatsink keep the power stages cool during demanding workloads, while the M.2 Shield Frozr thermal solution protects your NVMe drives from thermal throttling. High-quality 7W/mK MOSFET thermal pads and additional choke pads ensure stability when all cores are running at full speed. This MSI motherboard is built for sustained, reliable performance.

Blazing-fast storage and expansion for your most demanding builds.

Two M.2 slots — both running PCIe 4.0 x4 from the CPU — give you the bandwidth for high-speed NVMe SSDs, while four SATA 6G ports handle additional drives with RAID 0, 1, and 10 support. The Lightning Gen 4 PCIe x16 slot with MSI Steel Armor delivers double the bandwidth of PCIe 3.0, reinforced with heavy soldered connections to support heavy graphics cards and shield against electromagnetic interference. Two additional PCIe 3.0 x1 slots provide room for capture cards, sound cards, or other expansion. With Realtek ALC897 Audio Boost delivering 7.1-channel high-definition sound through isolated audio circuitry, this B650 motherboard covers every angle of a high-performance build.

Premium connectivity that keeps you ahead of the game.

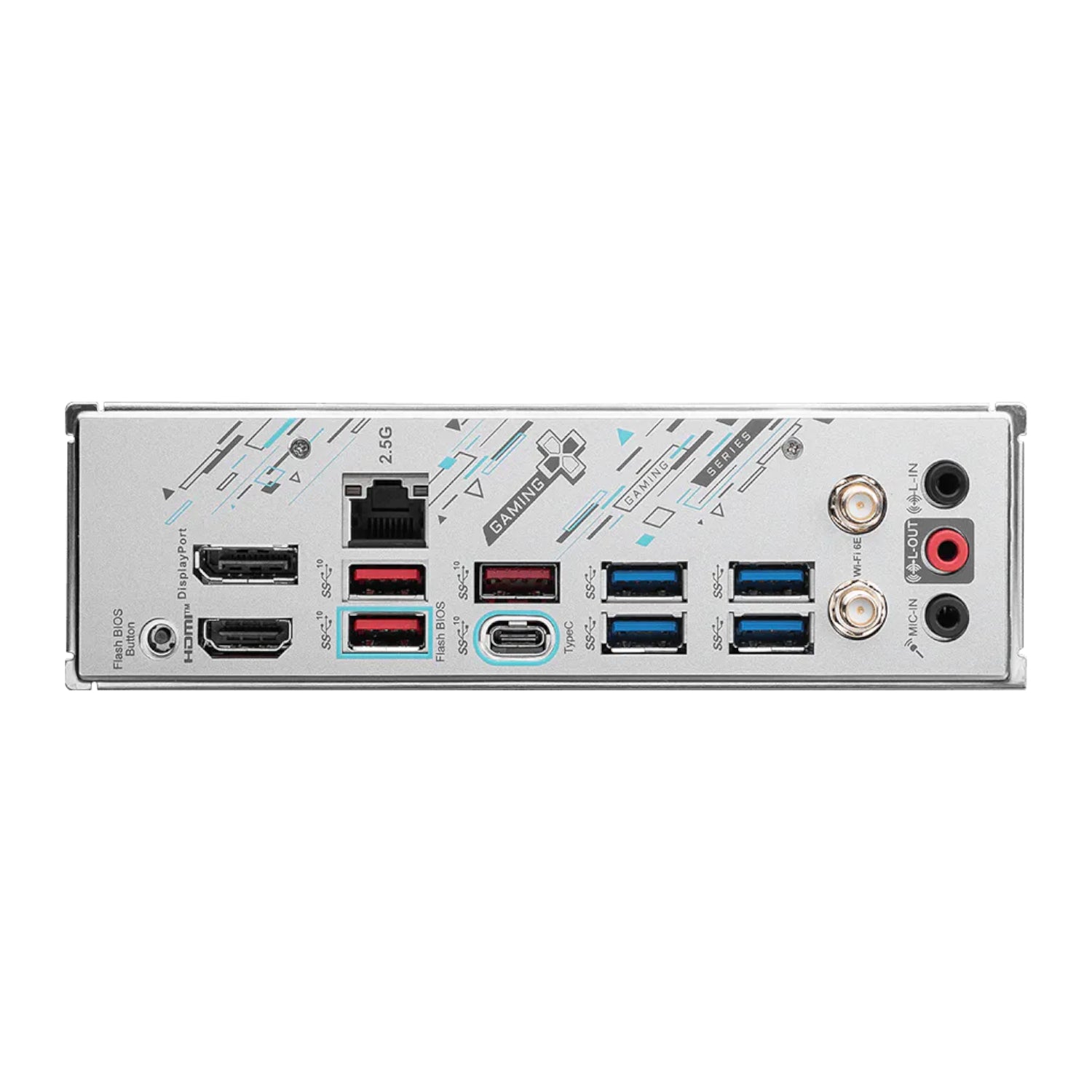

The pre-installed Wi-Fi 6E module delivers tri-band wireless across 2.4 GHz, 5 GHz, and 6 GHz bands with MU-MIMO and 160 MHz channel bandwidth, while Bluetooth 5.3 ensures fast, stable connections to peripherals and accessories. The Realtek RTL8125BG 2.5Gbps LAN port provides wired networking that outpaces standard Gigabit connections. The rear I/O panel offers a comprehensive port selection: three USB 3.2 Gen 2 10Gbps Type-A ports, one USB 3.2 Gen 2 10Gbps USB Type-C port, four USB 5Gbps Type-A ports, plus HDMI 2.1 and DisplayPort 1.4 for integrated graphics output. Front panel headers add further USB 2.0, USB 5Gbps, and USB 10Gbps USB Type-C connectivity. Four EZ Debug LEDs simplify troubleshooting, and addressable RGB headers let you customise your build’s aesthetic. This motherboard with WiFi puts everything at your fingertips.

FEATURES:

• Supports AMD Ryzen™ 9000/8000/7000 Series desktop processors on the AM5 socket with AMD B650 chipset.


• 4× DDR5 UDIMM slots supporting up to 256GB at 7200+(OC) MHz with AMD EXPO™ and dual-channel mode.


• 10+2+1 Duet Rail Power System with Core Boost and Memory Boost on a 6-layer 2oz copper PCB.


• 2× M.2 PCIe 4.0 x4 with M.2 Shield Frozr, 4× SATA 6G, and RAID support for flexible high-speed storage.


• Wi-Fi 6E (2.4/5/6 GHz), Bluetooth 5.3, and Realtek 2.5Gbps LAN for premium wired and wireless connectivity.


• Lightning Gen 4 PCIe x16 with Steel Armor, plus 7.1-channel Audio Boost with Realtek ALC897 codec.

SPECIFICATIONS:

• Chipset: AMD B650


• CPU Socket: AM5


• CPU Support: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors


• Form Factor: Micro-ATX (mATX)


• Memory:



  • 4× DDR5 UDIMM, max 256GB


  • DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz


  • Dual-channel, non-ECC, un-buffered


  • Supports AMD EXPO™






• Power Design: 10+2+1 Duet Rail Power System (Core Boost, Memory Boost)


• Onboard Graphics:



  • 1× HDMI™ 2.1 (max 4K 60Hz)


  • 1× DisplayPort 1.4 (max 4K 60Hz)


  • *Available only on processors with integrated graphics






• Expansion Slots:



  • 1× PCIe 4.0 x16 with Steel Armor (x16/x4 for Ryzen™ 9000/7000; x8/x4 for Ryzen™ 8700/8600/8400; x4/x4 for Ryzen™ 8500/8300)


  • 2× PCIe 3.0 x1






• Storage:



  • 2× M.2 (From CPU): PCIe 4.0 x4, supports 2280/2260


  • 4× SATA 6G


  • RAID 0/1/10 (SATA), RAID 0/1 (M.2 NVMe)






• Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio (Audio Boost)


• LAN: Realtek® RTL8125BG 2.5Gbps


• Wireless: Wi-Fi 6E (802.11ax, 2.4/5/6 GHz, 160 MHz, MU-MIMO)


• Bluetooth: 5.3


• USB (Rear):



  • 4× USB 5Gbps Type-A


  • 3× USB 10Gbps Type-A


  • 1× USB 10Gbps USB Type-C






• USB (Front Headers):



  • 4× USB 2.0


  • 2× USB 5Gbps Type-A


  • 1× USB 10Gbps USB Type-C






• Back Panel I/O: DisplayPort, HDMI™, 2.5G LAN, Wi-Fi/Bluetooth antenna, Flash BIOS Button, Audio connectors


• Internal Headers: ATX_PWR, 2× CPU_PWR, CPU Fan, Pump Fan, 3× System Fan, 2× JFP, JCI, JAUD, JDASH, 2× JARGB_V2, 2× JRGB, TPM 2.0


• LED Feature: 4× EZ Debug LED


• PCB: 6-layer, 2oz thickened copper


• OS Support: Windows® 11 64-bit, Windows® 10 64-bit


• Product Dimensions: 24.38 × 24.38 cm


• Product Weight: Not specified

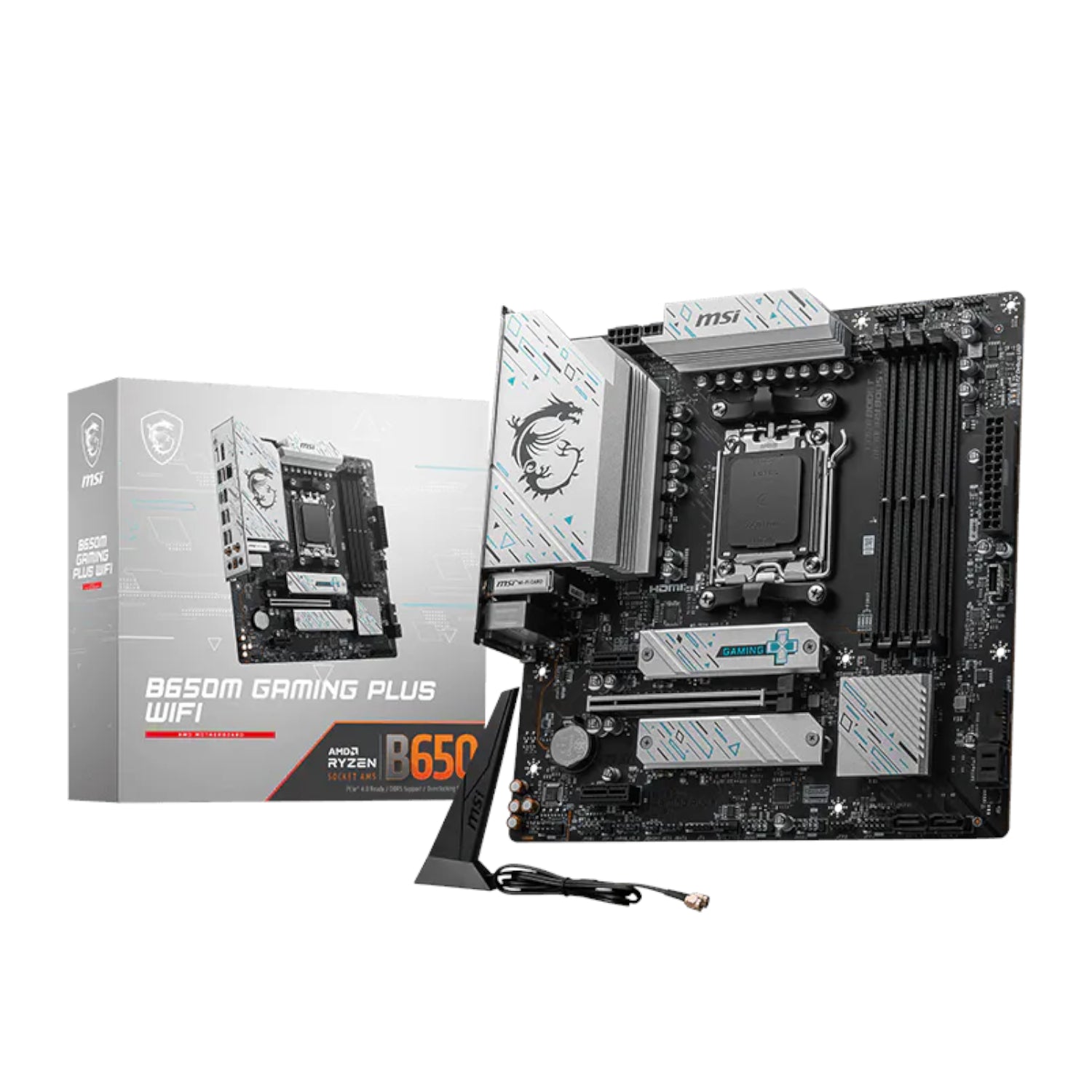

WHAT’S IN THE BOX:

• MSI B650M Gaming Plus WiFi AM5 Motherboard ×1


• Quick Installation Guide ×1


• European Union Regulatory Notice ×1


• SATA Cable ×1


• M.2 Clips ×2


• Wi-Fi Antenna ×1

Why MSI?

MSI has been at the forefront of gaming hardware for decades, delivering motherboards trusted by enthusiasts and professionals worldwide. The B650M Gaming Plus WiFi combines robust power delivery, premium thermal engineering, and comprehensive connectivity in a compact Micro-ATX form factor — backed by MSI’s proven track record of quality and reliability. For South African builders seeking a dependable AM5 motherboard, DDR5 motherboard, or a feature-rich gaming motherboard with WiFi, MSI delivers confidence in every build.
