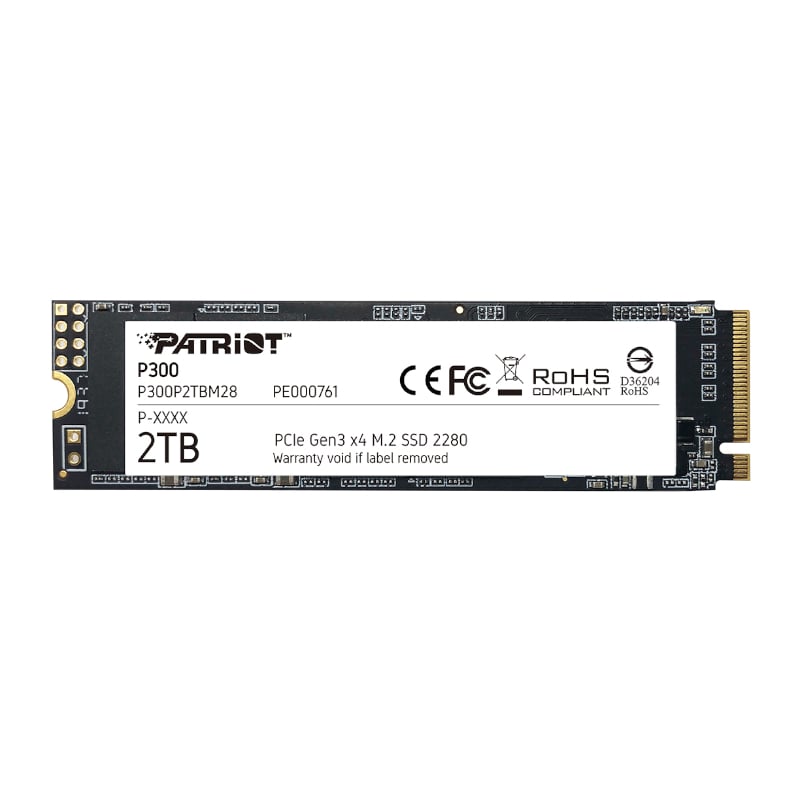

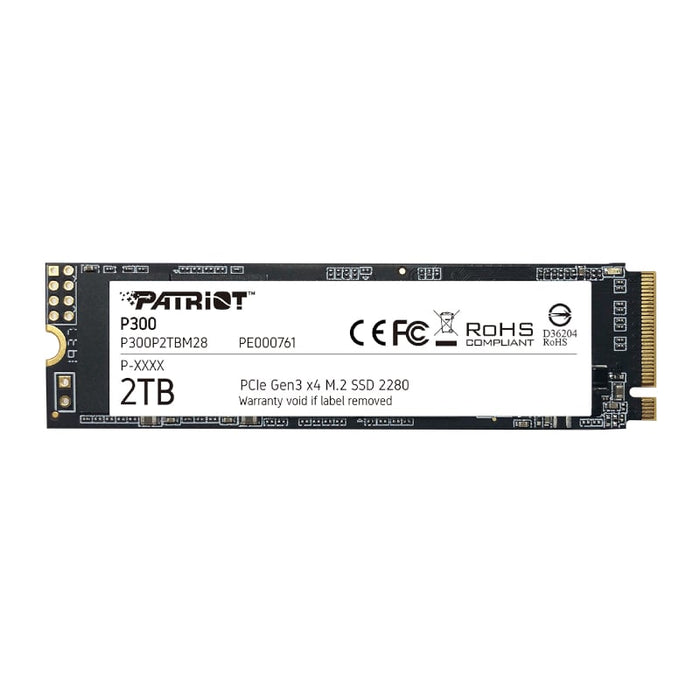

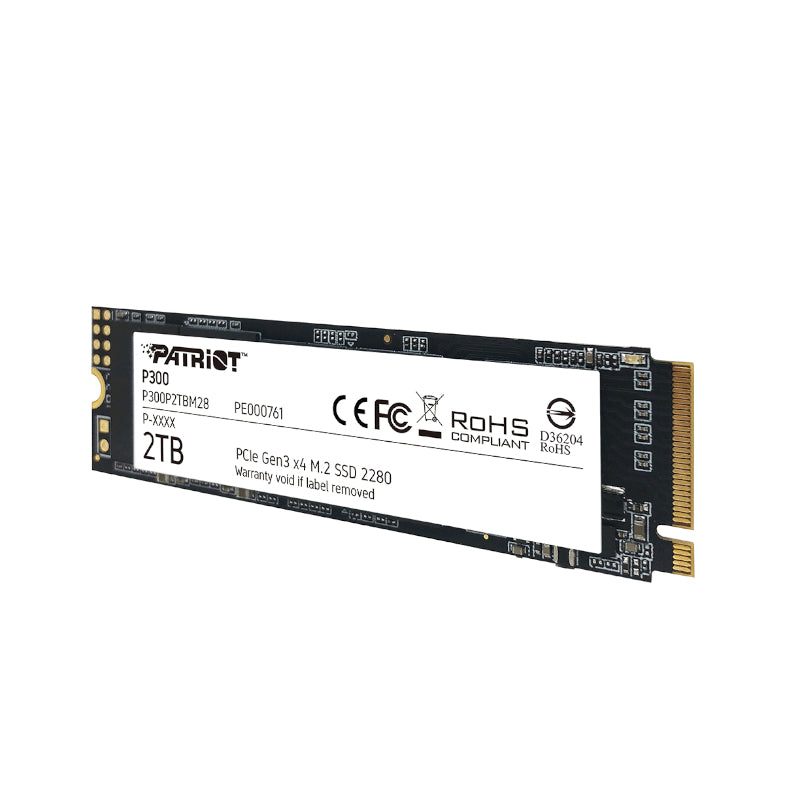

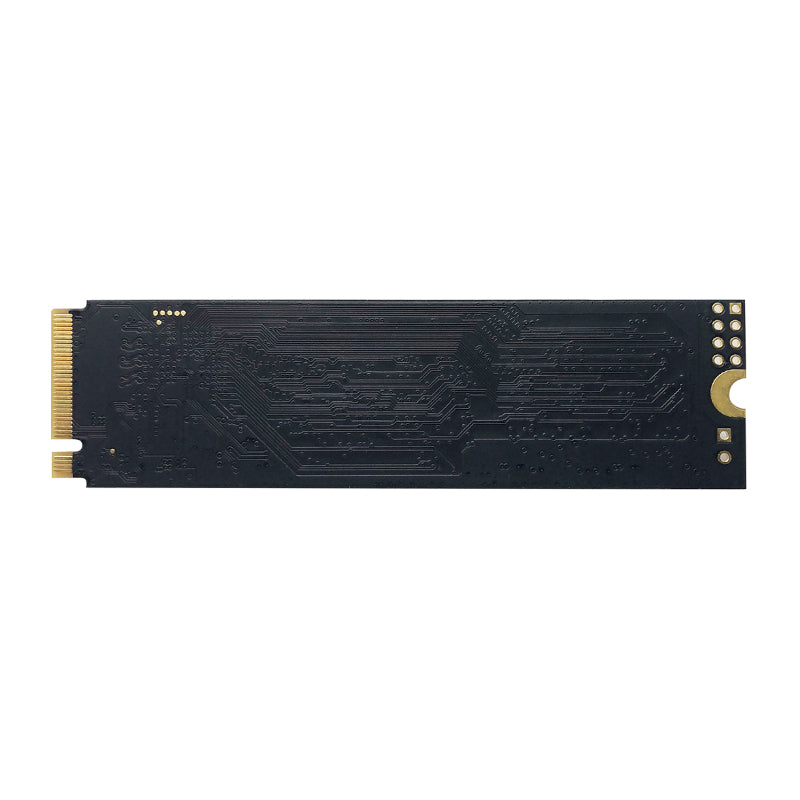

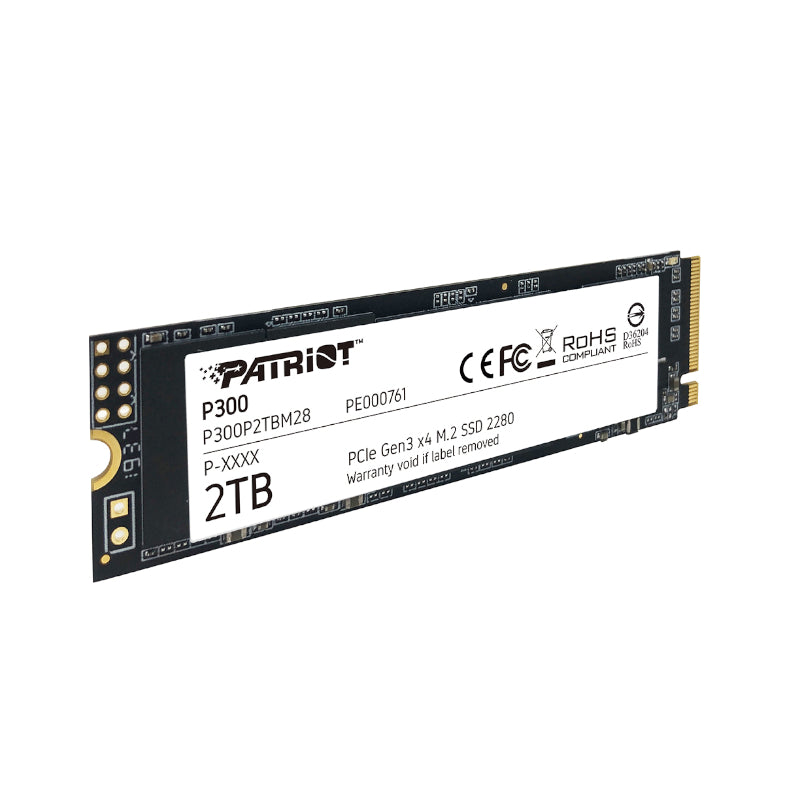

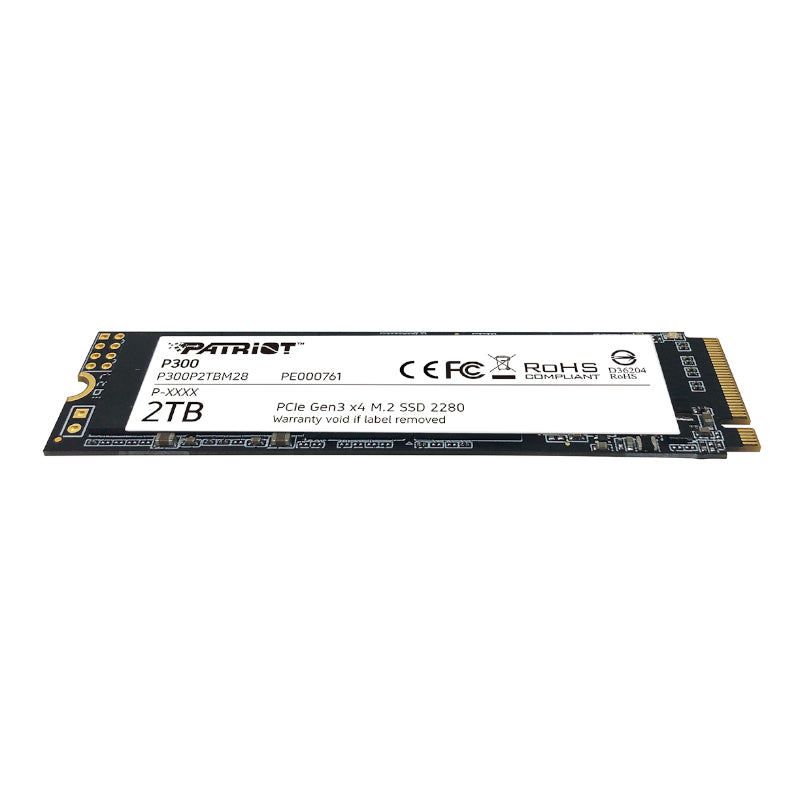

The P300 is Patriot’s next generation of mid-tier PCIe gen 3×4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3×2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives.

The P300’s advanced firmware offers ECC technology and end-to-end data path protection to ensure data integrity throughout the life of the drive. Advanced wear-levelling and thermal management features extend the life of the drive for maximum use.

FEATURES:

• High-speed PCIe NVMe SSD


• 2TB Capacity


• Built with the latest PCIe 3 x 4 controller


• 2280 M.2 PCIe Gen3 x 4, NVMe 1.3


• HMB technology


• NANDXtend ECC technology

SPECIFICATIONS:

• Type: M.2 PCIe NVMe SSD


• Capacity: 2TB


• Power Consumption: Full: 2.38W Idle: 0.38W


• TBW: 960TB


• 4K Aligned Random Read: up to 290K IOPs


• 4K Aligned Random Write: up to 260K IOPs


• Sequential Read (ATTO): up to 2,100MB/s


• Sequential Write (ATTO): up to 1,650MB/s


• Sequential Read (CDM): up to 2,100MB/s


• Sequential Write (CDM): up to 1,650MB/s


• O/S Supported: Windows® 7*/8.0*/8.1/10 (*May require drivers)


• Dimensions: 8 x 2.2 x 0.38 cm


• Weight: 20 g

WHAT’S IN THE BOX:

• Patriot P300 2TB M.2 PCIe NVMe SSD x1
