FEATURES
• Fast, accurate wire identification
• Rugged industrial design
• Sends tone to identify wires
• Three selectable tone outputs
• Two-line polarity indication
• Continuity test
• Adjustable volume control
• Visual signal strength indication
• Powerful speaker for noisy environments
• Recessed telephone test set connectors
SPECIFICATIONS
Tone Frequency: 1kHz
Max. Testing distance: 1.5km
Max. Working Current: ≦20mA
Tone Mode: One / Two-note tone
Compatible Ccnnectors: De-energized AC wire, telephone/twisted pair wire, all voice
Continuity Test: 1 LED (≦10Ω), Coaxial cable & solid/ stranded wire by alligator clips patch cord
Max. Signal Voltage: 8Vp-p
LED Indicator: 1x Power indicator, 1x Phone line poliarity indicator, 1x Phone line status indicator
Voltage Protection: DC 48V
Low Battery Indication: 7V (Flashing Power Indication)
Battery Type: DC9.0V (NEDA 1604/ 6F22 DC9V×1pc, not include)
Dimension (L x W x H): 65 x 58 x 34mm
Weight: 62g
AMPLIFIER PROBE
Frequency: 1kHz
Max. working current: ≦70mA
Function Selection: 4x Position mode switch (LED. NCV. OFF. SCAN)
Earphone Socket: 1x
Signal Status Indication: LED & Buzzer
NCV Indication: LED (AC 90~1000V)
LED Illumination: Yes
Power Indication: 1x LED
Battery Type: DC9.0V (NEDA 1604/ 6F22 DC9V×1pc, not include)
Dimension (L x W x H): 230 x 56 x 25mm
Weight: 80g
Accessory: 1x Storage bag
Brand
Proskit
Title

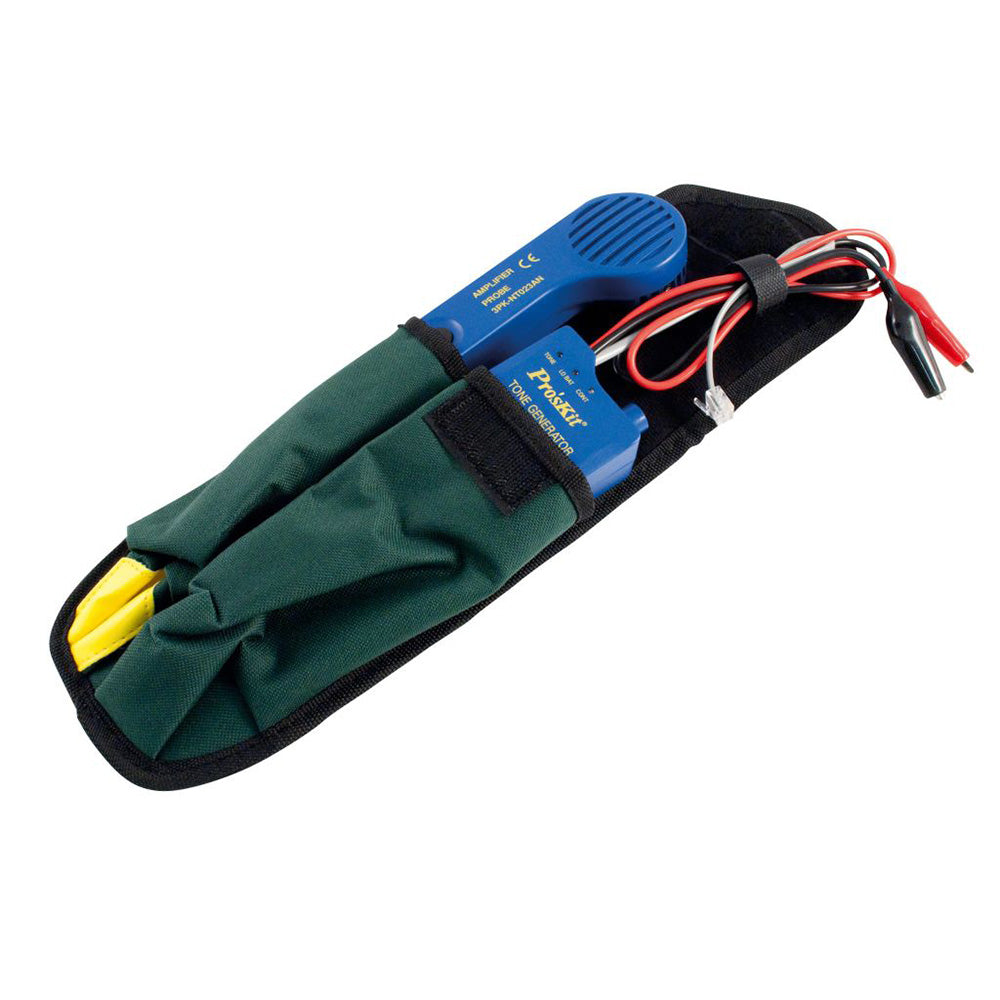

PROSKIT TONE & PROBE KIT - NET-3PK-NT023N
