FEATURES
• HDBaseT Technology - Uncompressed video transmission ensures crystal clear image and low latency
• 4K UHD with HDR10 - Supports up to 4K @30Hz (4:4:4) with enhanced visual performance
• Long Distance Extension - up to 100m at 1080p and 70m at 4K over CAT6
• Power Over Cable (PoC) - Powers TX and RX units over a single cable for simplified installation
• Multi-Signal Transmission - Supports HDMI, IR and RS232 control over one CAT6 cable
• IR Extension - Enables remote control of source devices
• RS232 Pass-Through - Allows integration with control and automation systems
• HDMI CEC Support - Enables control of connected HDMI devices
• HDCP 1.4 Compliance - Ensures smooth playback of protected content
• Plug-and-Play - No software or drivers required for setup
SPECIFICATIONS
• Input: 1× HDMI
• Output: 1× HDMI
• HDBaseT Interface: 1× RJ45
• Maximum Resolution: 3840×2160 @30Hz (4:4:4), 3840×2160 @60Hz (4:2:0)
• Extension Distance: 100m @1080p, 70m @4K
• IR Ports: 3.5mm (TX and RX)
• IR Frequency: 38~56KHz
• RS232: DB9 (DCE/DTE)
• HDCP: 1.4
• Power Supply: DC 12V (PoC Supported)
• Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Chassis Material: Metal
• Dimensions: 22 × 66 × 87mm
• Weight: 225g
Brand
Rextron
Title
REXTRON EVBMS-M110 HDBASET 4K @60HZ HDMI EXTENDER OVER CAT6 - REX-EVBM-M110
Recommended For You

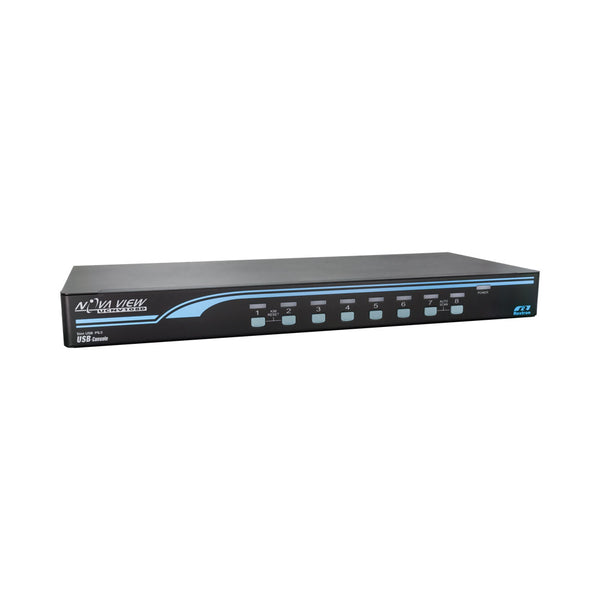

REXTRON 8PORT KVM USB/PS2 CONS,PC SIDE,BRACKET/CAB - REX-UCNV108DRBC
