FEATURES
• Extends USB KVM control up to 150m over quality CAT5e cable
• Two users can share one or two computers locally or remotely
• Sharp video support up to 1600 × 1200 @50m and 1024 × 768 @150m
• Ideal for secure, industrial and space-saving installations
• Simple, reliable, plug-and-play operation
SPECIFICATIONS
Extension and Connectivity
• Transmission Medium: Standard CAT5e Cable
• Maximum Extension Distance: up to 150m
• Local Console Connection: USB Keyboard a Mouse + VGA Video
• Remote Console Connection: USB Keyboard & Mouse + VGA Video
• Local PC Connection: USB + VGA Ports
• Remote PC Connection: CAT5e Port for Extender Link
Video Support
• Resolution @50m: up to 1600 × 1200
• Resolution @150m: up to 1024 × 768
• Video Connector Type: VGA
USB and Peripheral Support
• Keyboard / Mouse Interface: USB Human Interface Device (HID)
• USB Ports: Local unit - USB Ports for Keyboard & Mouse, Remote Unit - USB Console Ports
Power
• Power Input: External DC 9V Adapter
• Power Connector: Standard Barrel Connector
Indicators and Controls
• Status LEDs: Local / Remote / PC Activity Indicators
• Console Mode: Local / Remote Selection Buttons or Switch
Environmental and Physical
• Operating Temperature Range: Typical Commercial Grade (0~40°C)
• Storage Temperature: Model Dependent
• Housing: Metal Enclosure
• Mounting: Desktop or Rack Shelf Installation
Compatibility
• USB Standards: USB-HID Compatible Keyboards & Mice Supported
• Operating Systems: Works with Standard PC Environments that Support USB HID
• Keyboard / Mouse Protocol: No Proprietary Drivers Required
Dimensions (H × W × D): 20 × 156 × 65mm
Brand
Rextron
Title

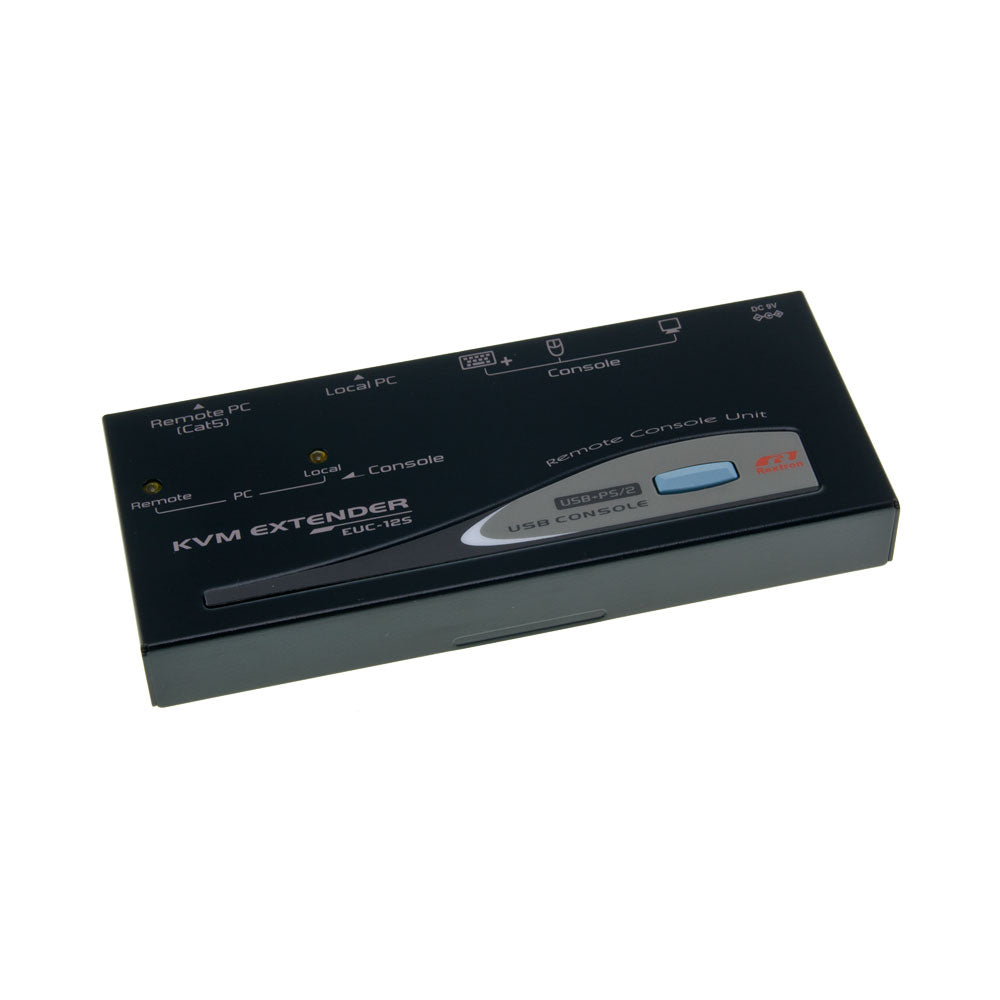

REXTRON USB KVM EXTD OVER CAT5E (UP TO 150M) - REX-EUC-222C
