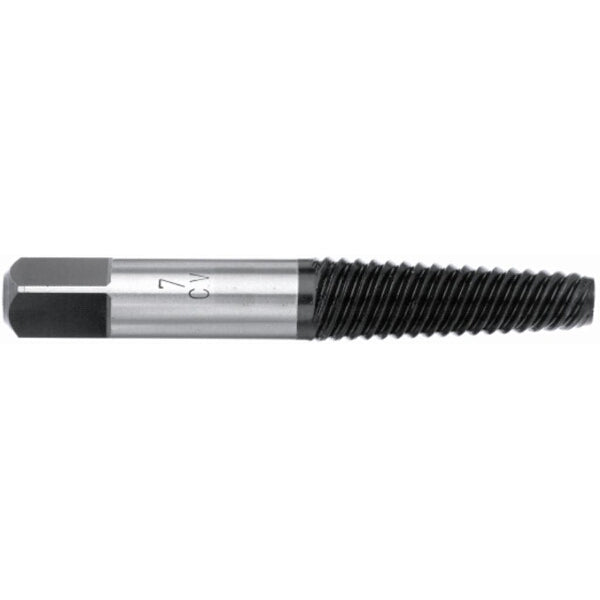

TorkCraft - Screw Extractor
Size: M3 - M6
Diameter: 2 mm
Recommended Drill Size: 3.2 mm
Shank: 3.5mm Square Shank
Application:
The Tork Craft Screw Extractor is for the removal of broken bolts and studs,
made of carbon steel. Determine the size of the bolt and the desired
extractor size, use a file and flatten the broken bolt surface, usually
bolts that broke are left with an uneven surface.
Locate the center on the flattened surface and mark with a center punch.
Drill a pilot hole, start off with a small diameter and increase to the
recommended drill size depending on the extractor size in use.
Insert the extractor into the pilot hole and using a tap wrench the bolt can
now be extracted carefully, by turning the screw extractor anti-clockwise.
- Carbon Steel
- Quick & Easy removal of broken bolts and studs
Recommended tap wrench:
- NR9001C
- NR9002C
- NR9006C
WARNING: Using any tool can be dangerous. Always select
the right tool for the job.
the right tool for the job.
Brand
TORK CRAFT
Title
Tork Craft Screw Extractor No.1 Carded Tc Se01
