The heavy-duty, high-performance miter saw with long-lasting accuracy

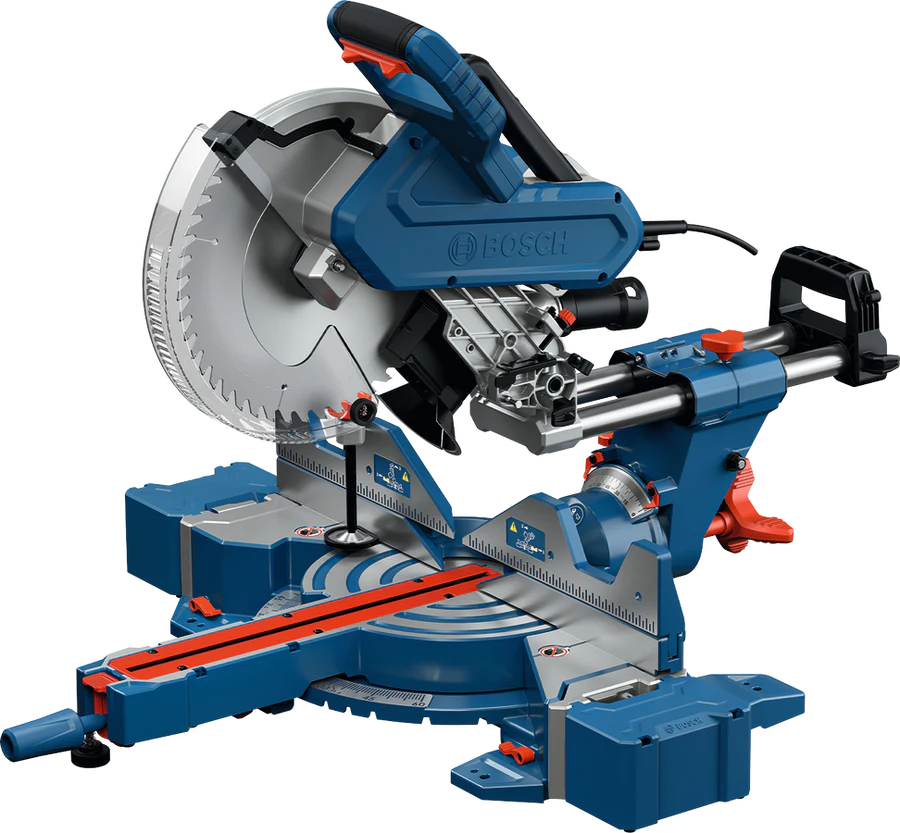

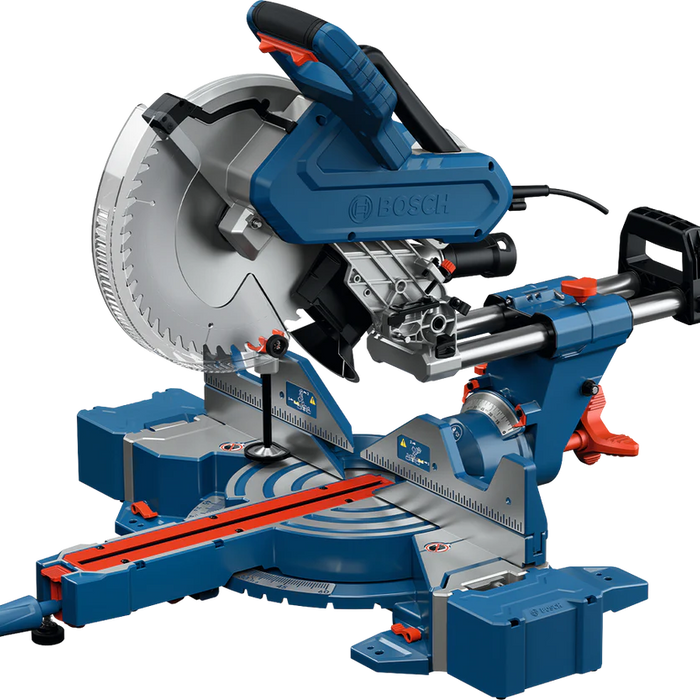

The Bosch GCM 340-305 D is a powerful, heavy-duty mitre saw designed for high-precision cutting across a wide range of materials. With a robust 305mm blade, integrated LED line indicator, and excellent cutting capacity, it's built to deliver long-lasting accuracy on the jobsite or in the workshop.

Integrated LED light projects a precise shadow line for accurate cuts
Large 305mm blade handles wide and deep cuts with ease
Detachable side extensions provide support for long workpieces
Strong 1,800W motor delivers consistent performance in all materials
Dual bevel and wide mitre range offer maximum cutting flexibility

Technical Data

Rated Input Power 1,800 W
No-Load Speed 4,050 rpm
Saw Blade Diameter 305 mm
Saw Blade Bore Diameter 25 mm
Cutting Capacity (0°) 105 x 340 mm
Cutting Capacity (45° Mitre) 105 x 245 mm
Cutting Capacity (45° Bevel) 340 mm
Mitre Range 52° Left / 60° Right
Bevel Range 47° Left / 47° Right
Dimensions (W x L x H) 617 x 885 x 709 mm
Weight 21.4 kg
Sound Pressure Level 98 dB(A)
Sound Power Level 108 dB(A)
Uncertainty K 3 dB
Includes
Dust Bag (1 619 PB6 246)

Scope of delivery
