F24 Optical Level

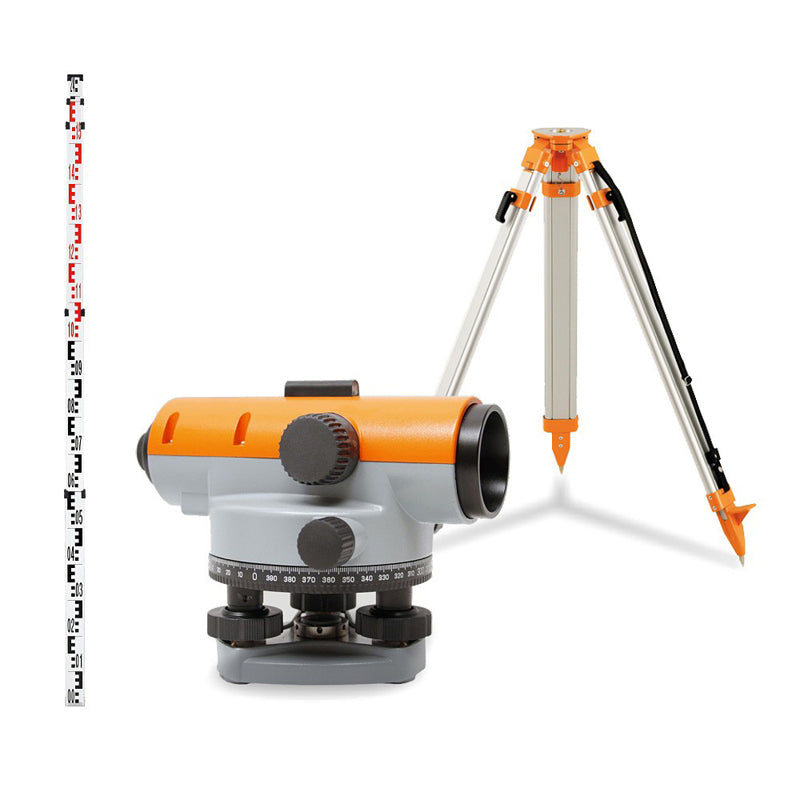

The F24 level features first-class optics 24x magnification, a top quality magnetic damped compensator and a modern a design. High durable and has been built with the construction site in mind. Supplied as a kit including a 5 m telescopic staff in a carry bag, a robust aluminium tripod, a plumb like and a tough carry case.

• 24x magnification in the optical system
• Strong carrying case
• Easy-to-grip, impact absorbing soft-grip cover
• Robust protection for the optical system also in the front of the instrument
• Easily accessible focussing and adjusting screws
• Generous overall supply package
• Easy to read and reliable transfer of heights

Applications

• Ideal for any craftsment that need precise layout i.e foundations, landscaping, decking, paving etc.

Optics Upright
Magnification 24X
Objective Diameter 30 mm
Shortest Focusing Distance 1m
Additive Constant 0
Multiplication Factor 100
Compensator Range +/- 15′
Adjusting Accuracy +/- 0.5”
Graduation 400 gon
Bubble Sensitivity +/- 8’/2 mm
Standard Deviation p/km double run +/- 2.5 mm
Connection Thread 5/8”
Protection Class IP 54
Weight 1.7kg
