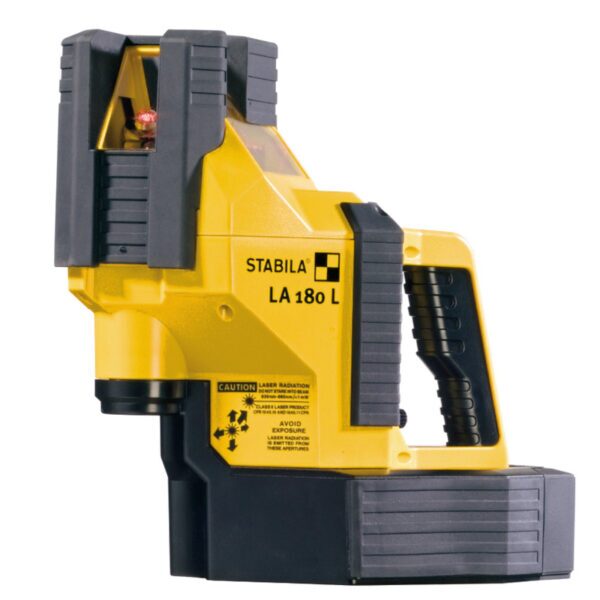

La 180 L Multi-Line Laser

Laying out right angles is a time-consuming job. Moreover, when measurement errors occur high follow-up costs can be the result. The LA 180 L self-levelling multi-line laser allows you to mark out 90° angles, transfer axes and datum lines fast and accurately. The REC 410 Line RF receiver controls the LA 180 L using the STABILA wireless AUTO ALIGNMENT technology. One press of a button and the laser adjusts automatically to the position of the receiver. This laser shows how STABILA answers the construction problems of today.

• Self-levelling multi-line laser for precision results – motorised controller and accuracy of ± 0.07 mm/m.
• AUTO ALIGNMENT function: receiver automatically controls fine alignment of the laser at distances of up to 40 m – fully automatic axis transfers and creation of right angles. Precise alignment without losing the reference point – no measurement errors.
• Pulsed laser lines for exact height measurements with the receiver (up to 100 m) indoors and outdoors.

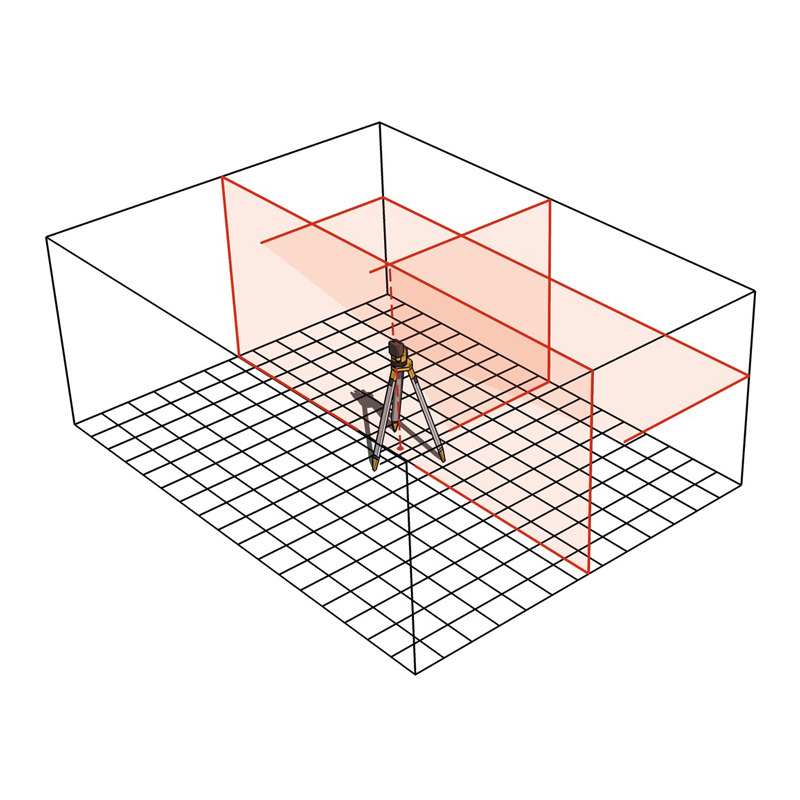

• Versatile: 3 vertical lines, 1 horizontal line and plumb-line function.
• Extra sharp, easy-to-see lines for fast and efficient work directly on the laser line – measuring range up to 20 m indoors.
• Unique housing shape for positioning in room corners and over edges (e.g. concrete slab) – rapid checking of right angles.
• Shock-absorbing soft grip casing.
• Extensive accessory set: small and large target plates, laser goggles and carrying case.
• Optional: rechargeable battery unit.

Applications

• In metal construction – erecting metal structures in industrial building construction, aligning substructures in façade construction.

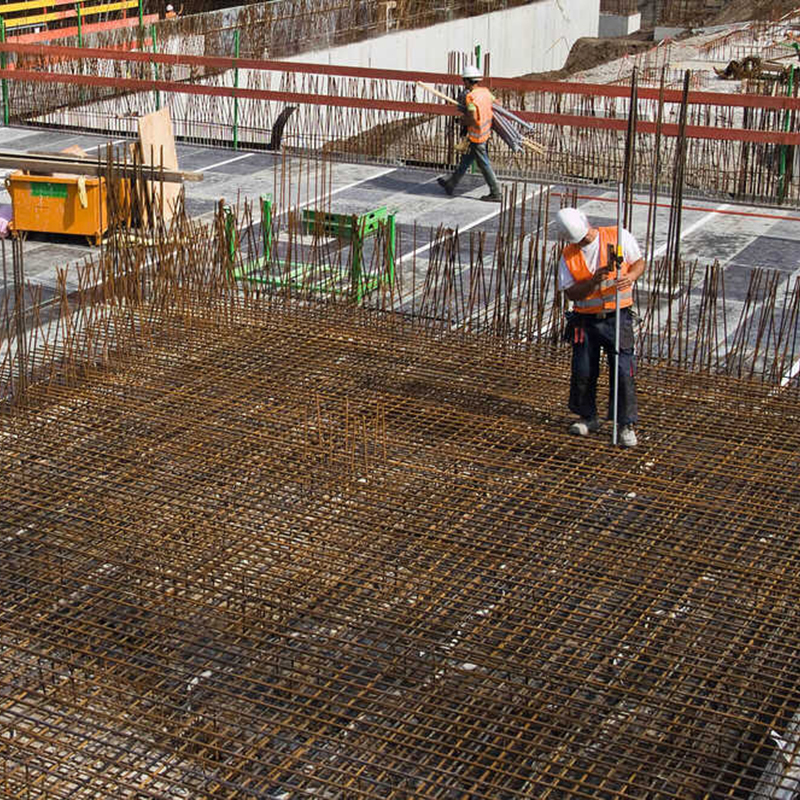

• In reinforced concrete construction – transferring axes from batter boards, marking walls on the foundation slab.
• For bricklaying – transferring axes from batter boards, marking walls on the foundation slab, marking partition walls in the basement.

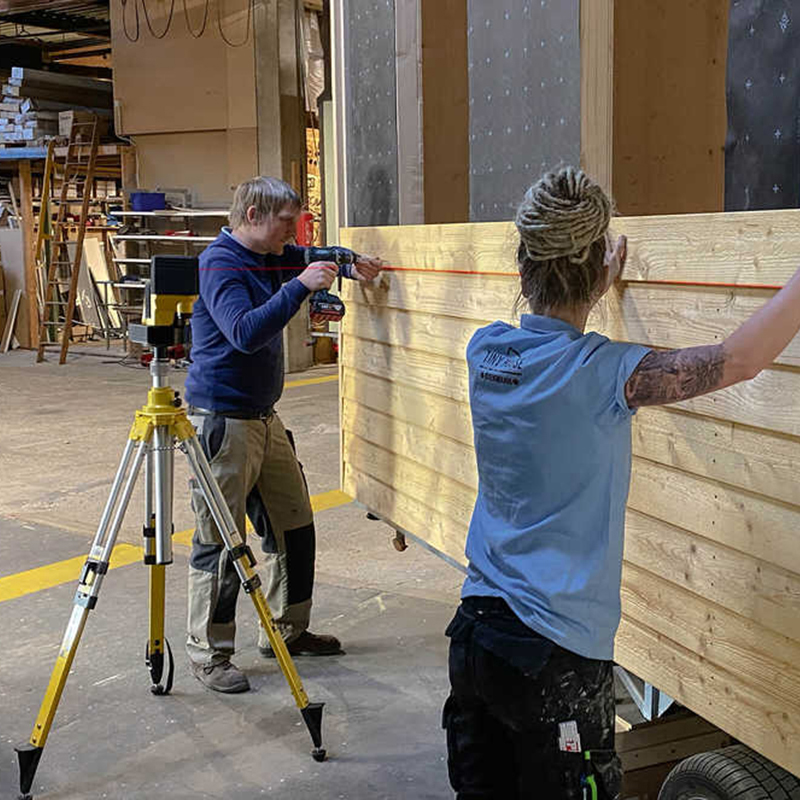

• For carpentry – marking and aligning timber frame walls.
• In drywall construction – transferring layouts from the foundation slab to walls and ceilings, setting up and fixing U-profiles, setting partition walls, hanging ceilings.
• In plumbing and installation work – aligning pipe clips, positioning wires and heating pipes.
