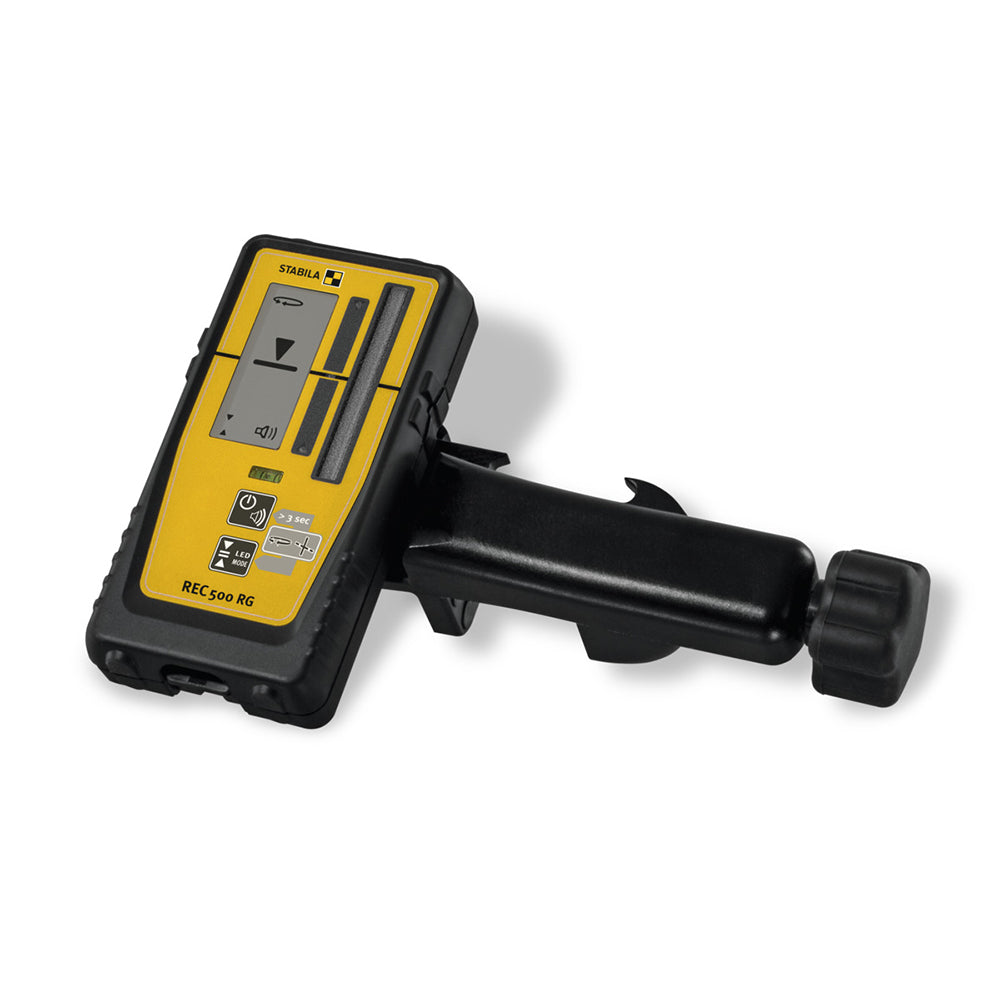

REC 500 RG Rotation & Line Receiver
Laser receiver for determining the beam position of rotation lasers or pulse-modulated line lasers with red or green laser diodes. Two-sided digital display for fast work. Visual indication with arrow symbols on the display as well as LED guidance. Acoustic guidance can be activated. Mounting via magnet system or holder. Battery life: 50 hours.
- Universal receiver for red or green rotation or line lasers
- Two-sided digital display for fast work
- Easy to read thanks to visual indication, acoustic guidance or multi-color LEDs
- IP67 - Optimum protection against rain and dust
Includes:
- (1) REC 500 RG Receiver
- (1) Universal Grade Rod Clamp
-
Weight: 1.00 LBS
-
Width: 2.00 (in)
-
Height: 8.03 (in)
-
Depth: 3.30 (in)
Units of Measure-Inches, Fractions of an Inch, Feet, mm
Length of Reception Band-4 Inches
Dust and Water Proof Rating-IP67
Drop Rating-10 Drop to Concrete
Accuracy-.
Fine =1/16"
Coarse =1/4"
Calibration =1/64"
Tone Volumes-Loud: 105DBA, Low: 85DBA
Auto Shut Off-30 min
Batteries (included)-2 X 1.5V AA(Alkaline)
Battery Life-Approx. 70 Hours
