FEATURES
• Fast Ethernet Media Conversion - Converts 10/100Mbps Ethernet to multimode fibre for extended network connectivity
• Multimode Fibre Support - SC fibre interface supports transmission distances up to 2km
• Auto MDI/MDIX Support - Eliminates the need for crossover cables for easier deployment
• Auto-Negotiation - Automatically detects and adjusts network speed and duplex mode
• Plug-and-Play - Simple installation with no configuration required
• LED Status Indicators - Provides clear monitoring of power, link and activity status
SPECIFICATIONS
STANDARDS AND PROTOCOLS
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
BASIC FUNCTION
• Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode
• Full Duplex Flow Control (IEEE 802.3x)
• Half Duplex Flow Control (Back Pressure)
• Extends Fibre Distance up to 2km
PORTS
• 1× 100M SC/PC Port
• 1× 10/100M RJ45 Port (Auto MDI/MDIX)
WAVE LENGTH
• 1310nm
NETWORK MEDIA 10BASE-T
• UTP CAT3, 4, 5 Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)
NETWORK MEDIA 100BASE-TX
• UTP CAT5, 5e Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)
NETWORK MEDIA 100BASE-FX
• Multi-Mode Fibre
LED INDICATORS
• PWR
• Link/Act
DIMENSIONS (W × D × H)
• 94.5 × 73 × 27mm
POWER SUPPLY
• External Power Supply
MAX. POWER CONSUMPTION
• 2.4W
SAFETY AND EMISSION
• FCC
• CE
• RoHS
Brand
TP-Link
Title

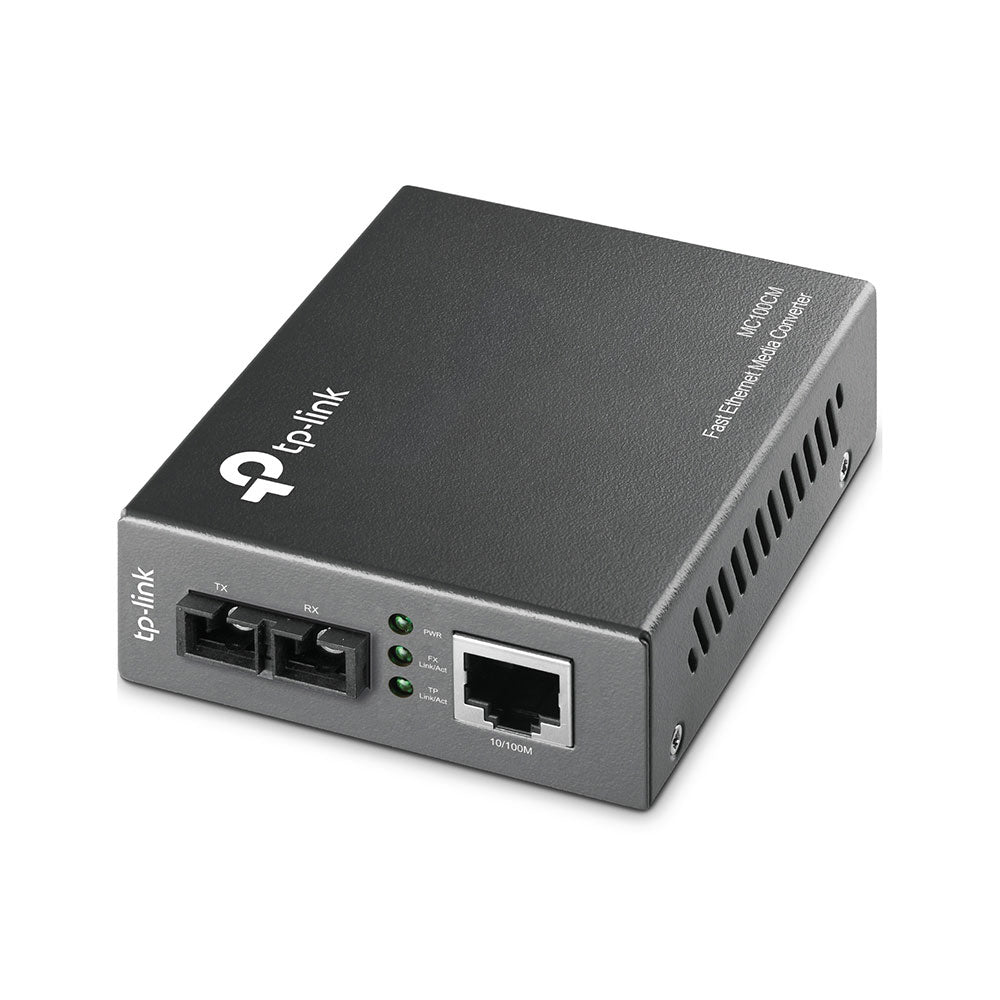

TP-LINK 100MBIT RJ45 TO MULTI-MODE SC FIBRE - NET-MC100CM
