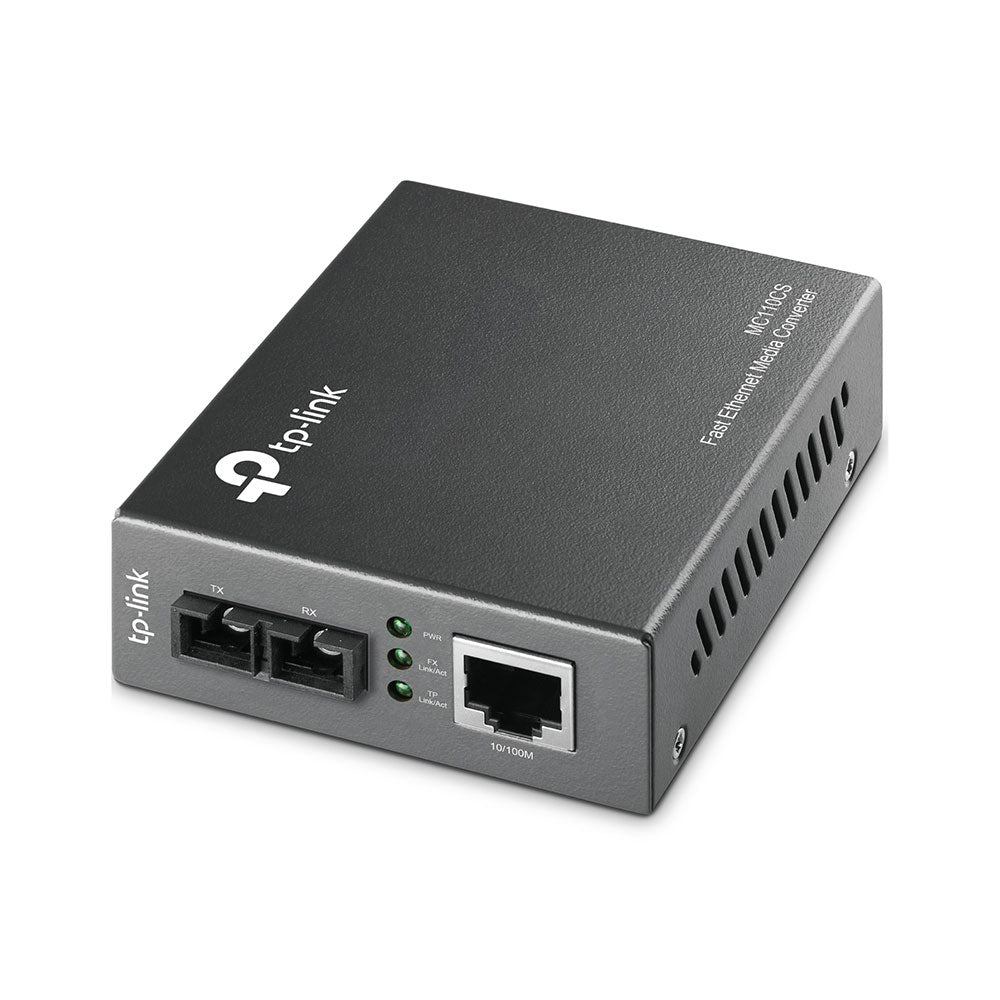

FEATURES

• Fast Ethernet Media Conversion - Converts 10/100Mbps Ethernet to single-mode fibre for long-distance connectivity
• Long-Range Fibre Transmission - Supports fibre distances up to 20km for extended network coverage
• Auto-Negotiation Support - Automatically detects and adjusts optimal speed and duplex mode
• Auto MDI/MDIX Support - Eliminates the need for crossover cables for easier deployment
• Reliable Data Transmission - IEEE 802.3x flow control ensures stable and efficient data transfer
• Plug-and-Play - Simple installation with no configuration required

SPECIFICATIONS

STANDARDS AND PROTOCOLS
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x

BASIC FUNCTION
• Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode
• Full Duplex Flow Control (IEEE 802.3x)
• Half Duplex Flow Control (Back Pressure)
• Extends Fibre Distance up to 20km

PORTS
• 1× 100M SC/PC Port
• 1× 10/100M RJ45 Port (Auto MDI/MDIX)

WAVE LENGTH
• 1310nm

NETWORK MEDIA 10BASE-T
• UTP CAT3, 4, 5 Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)

NETWORK MEDIA 100BASE-TX
• UTP CAT5, 5e Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)

NETWORK MEDIA 100BASE-FX
• Single-Mode Fibre

LED INDICATORS
• PWR
• Link/Act

DIMENSIONS (W × D × H)
• 94.5 × 73 × 27mm

POWER SUPPLY
• External Power Supply

MAX. POWER CONSUMPTION
• 2.4W

SAFETY AND EMISSION
• FCC
• CE
• RoHS
