FEATURES

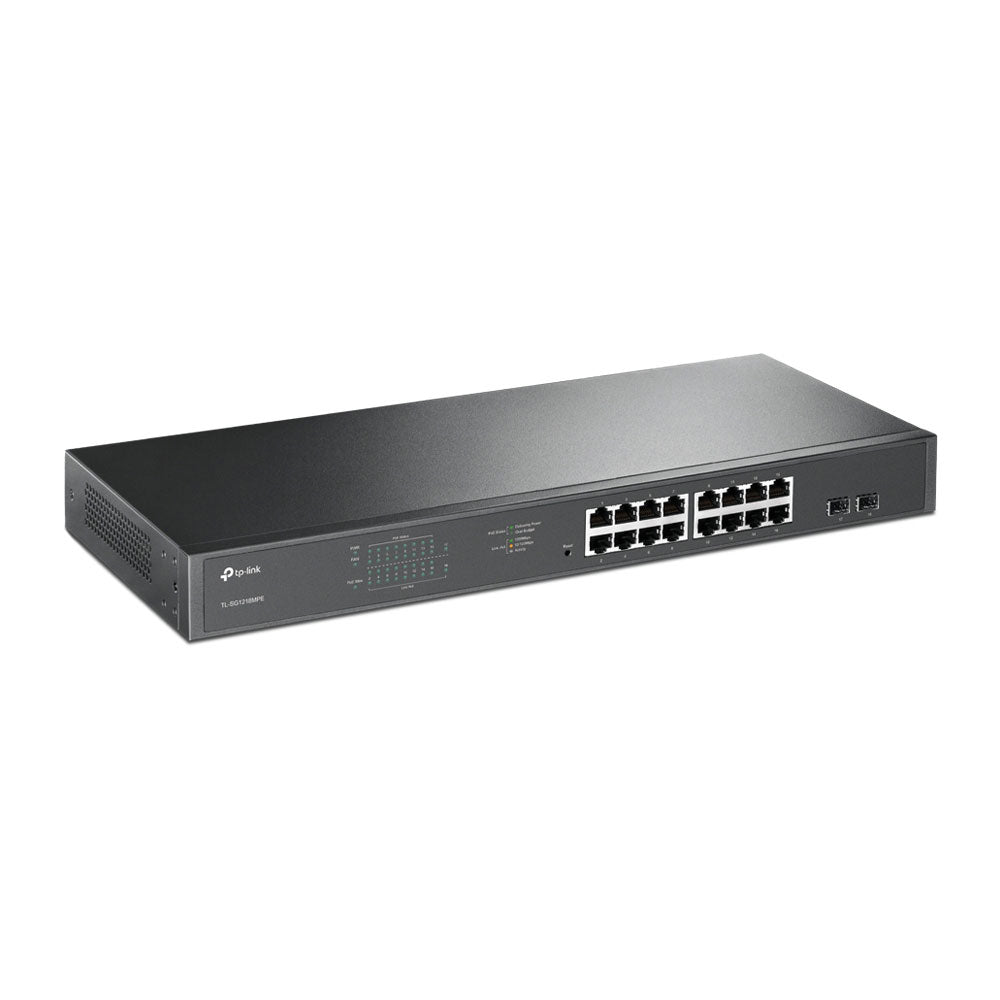

• 16 10/100/1000Mbps RJ45 POE+ Ports Switch
• PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
• Port Priority is able to  guarantee the quality of sensitive application like video monitor
• Intelligent power management can protect the switch from overload
• QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimising traffic for IPTV

SPECIFICATIONS

HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface: 16 10/100/1000 Mbps RJ45 Ports
• (Auto Negotiation/Auto MDI/MDIX)
• 2 Gigabit SFP Ports
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
• Fan Quantity: 2 Fans
• Physical Security Lock: Yes
• Power Supply: 100-240V AC, 50/60 Hz
• PoE+ Ports(RJ45): Standard: 802.3at/802.3af compliant
• PoE+ Ports: 16 Ports
• Power Supply: 192W
• Dimensions (W x D x H): 440 × 180 × 44mm
• Mounting: Rack Mountable
• Max Power Consumption: 18.73 W (220/50Hz. no PD connected)
• 217.22 W (220/50Hz. with 192W PD connected)
• Max Heat Dissipation63.89 BTU/h (no PD connected)
• 741.15 BTU/h (with 192W PD connected)

PERFORMANCE
• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 23.8 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9 KB

SOFTWARE FEATURES
• Quality of Service: Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
• L2 Features: IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN: Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
• Management: Web-based GUI
• Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward

OTHERS
• Certification: CE, FCC, RoHS
