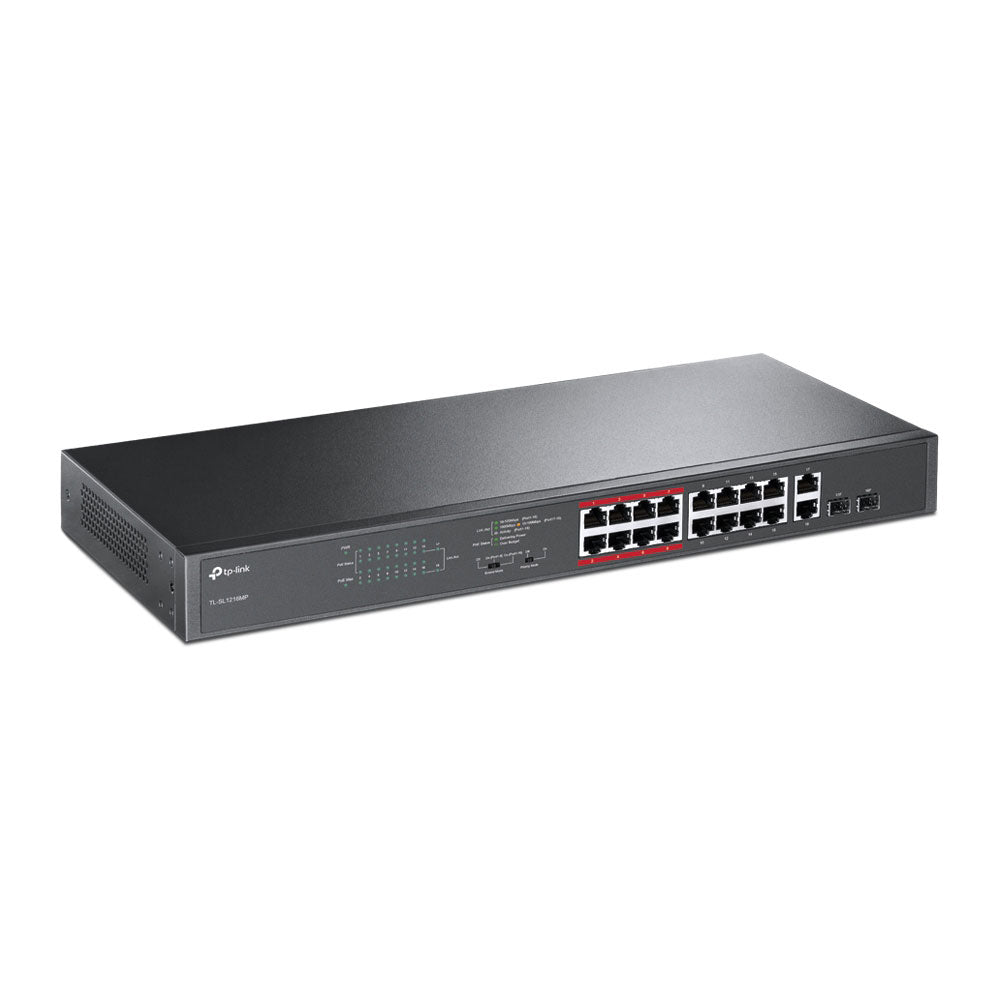

FEATURES

• 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
• Up to 250m data and power transmission under extend mode specially designed for surveillance system
• Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
• High PoE power budget with up to 30W for each PoE port and 192W for all PoE ports
• Easy to use, with no configuration and installation needed

SPECIFICATIONS

HARDWARE FEATURES
• Interface: 16 PoE+ 10/100Mbps RJ45 Ports
• 2 10/100/1000Mbps RJ45 Ports
• 2 Combo Gigabit SFP Slots
• Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
• Fan Quantity: 2 Fans
• Physical Security Lock: Yes
• Power Supply: 100-240V AC, 50/60 Hz
• Backup Bandwidth: 7.2 Gbps
• PoE+ Ports(RJ45): Standard: 802.3at/802.3af compliant
• PoE Ports: Port1- Port16
• PoE Power Budget: 192W
• Mac Address Table: 8K
• Dimensions (W x D x H) 440 × 180 × 44mm
• Max Power Consumption: 18.73W (220/50Hz. no PD connected)
• 217.22 W (220/50Hz. with 192W PD connected)
• Max Heat Dissipation: 63.89 BTU/h (no PD connected)
• 741.15 BTU/h (with 192W PD connected)

SOFTWARE FEATURES
• Advanced Features: Compatible With IEEE 802.3at/af Compliant PDs
• Port Priority Mode
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• Transmission Method: Store-And-Forward

OTHERS
• Certification: CE, FCC, RoHS
