FEATURES

• High-Speed 5.0GHz Wireless Performance - up to 300Mbps on 5.0GHz for stable long-distance connectivity

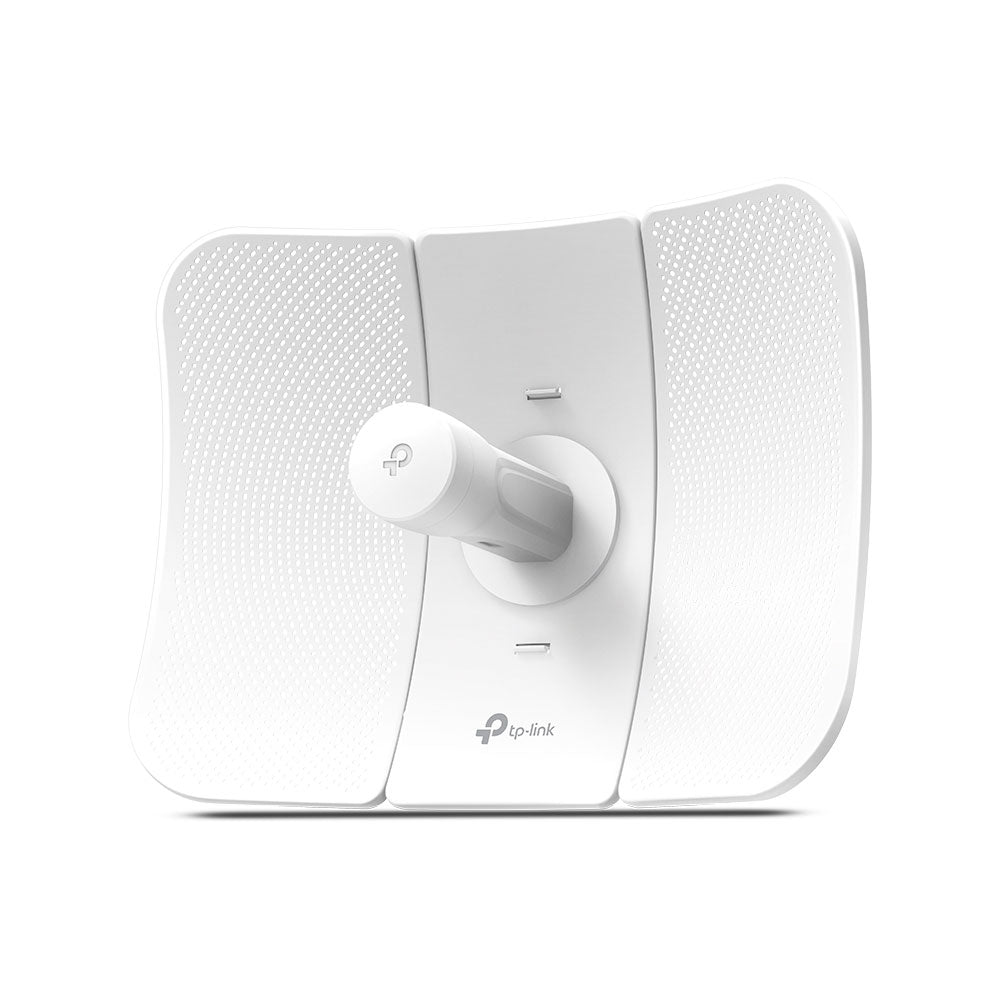

• 23dBi High-Gain Directional Antenna - Integrated 2×2 MIMO antenna with dedicated metal reflector for extended range links
• Optimised Beam Directivity - Improved latency and enhanced noise cancellation for cleaner transmission
• Industrial Outdoor Design - IP65 weatherproof enclosure for reliable all-weather deployment and 15kV ESD and 6kV lightning protection for added durability
• Sturdy Snap-Lock Assembly - Fast installation with secure structural stability in strong winds
• Pharos MAXtream TDMA Technology - Increased throughput, improved capacity and reduced latency in busy environments
• Pharos Control Management System - Free centralised platform for easy monitoring and configuration
• Passive PoE Support - Flexible deployment with simplified installation and cable management

SPECIFICATIONS

HARDWARE FEATURES
• Processor: Qualcomm 560MHz CPU, MIPS 74KC
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interface: 1× 10/100Mbps Shielded Ethernet Port (LAN/PoE), 1 × Reset Button
• Power Supply: 24V Passive PoE via LAN (+4,5pins; -7,8pins)
• Voltage Range: 16~27VDC
• Transmit Power: up to 25dBm (Adjustable by 1dBm)

ANTENNA
• Gain: 23dBi
• Type: Integrated 2×2 MIMO Directional Antenna with Reflector
• Beamwidth: 9° (Azimuth), 7° (Elevation)

WIRELESS
• Wireless Standards: IEEE 802.11a/n
• Frequency: 5.15~5.85GHz
• Max Wireless Speeds:
- up to 300Mbps (40MHz, Dynamic)
- up to 144.4Mbps (20MHz, Dynamic)
- up to 72.2Mbps (10MHz, Dynamic)
- up to 36.1Mbps (5MHz, Dynamic)
• Proprietary Protocol: TDMA Mode with Pharos MAXtream

PROTECTION AND ENCLOSURE
• ESD Protection: 15kV
• Lightning Protection: 6kV
• Enclosure: Outdoor PC Stabilised Plastic
• Weatherproof Rating: IP65

DIMENSIONS
• Unit Dimensions: 366 × 280 × 207mm

MANAGEMENT
• Management Platform: Pharos Control Centralised Management
• Web Management: HTTP/HTTPS
• SNMP: v2c
• System Tools: Throughput Monitor, Spectrum Analyser, Speed Test, Ping, Traceroute

SECURITY
• Wireless Security: WPA/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP
• Access Control: MAC Filtering, VLAN Tagging (AP Mode)

POE ADAPTER
• Input: 100~240VAC, 50/60Hz
• Output: 24VDC, 0.6A Max
• Ports: 1× 10/100Mbps PoE (Power and Data), 1× 10/100Mbps LAN (Data)
• Certifications: CE, FCC, IC, RoHS, IP65

SYSTEM REQUIREMENTS
• Windows 98SE/NT/2000/XP/Vista/7/8/10, macOS, Linux
• Recommended Browsers: Chrome, Safari, Firefox
