FEATURES

• Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
• Dual band speeds up to 750Mbps
• Miniature size and wall-mounted design make it easy to deploy and move flexibly

SPECIFICATIONS

HARDWARE FEATURES

• Button: WPS Button, RESET Button
• Power Consumption: 7.0W
• Dimensions: 110.0×65.8×38.8mm
• Antenna: 3 Omni-directional Antennas

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4GHz and 5GHz
• Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz
• Reception Sensitivity
5GHz:
- 11a 6Mbps: -94dBm, 11a 54Mbps: -78dBm
- 11ac HT20 MCS0: -94dBm, MCS8: -73dBm
- 11ac HT40 MCS0: -91dBm, MCS9: -65dBm
- 11ac HT80 MCS0: -88dBm, MCS9: -62dBm
2.4GHz:
- 11g 54Mbps: -78dBm, 11n HT20: -75dBm
- 11n HT40: -73dBm
• Transmit PowerCE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz); <30dBm(5.47GHz~5.725GHz)
• Wireless Functions: WMM, Short GI, High Speed, WPS
• Wireless Security: WEP, WPA/WPA2-PSK encryptions

OTHERS
• CertificationCE, RoHS

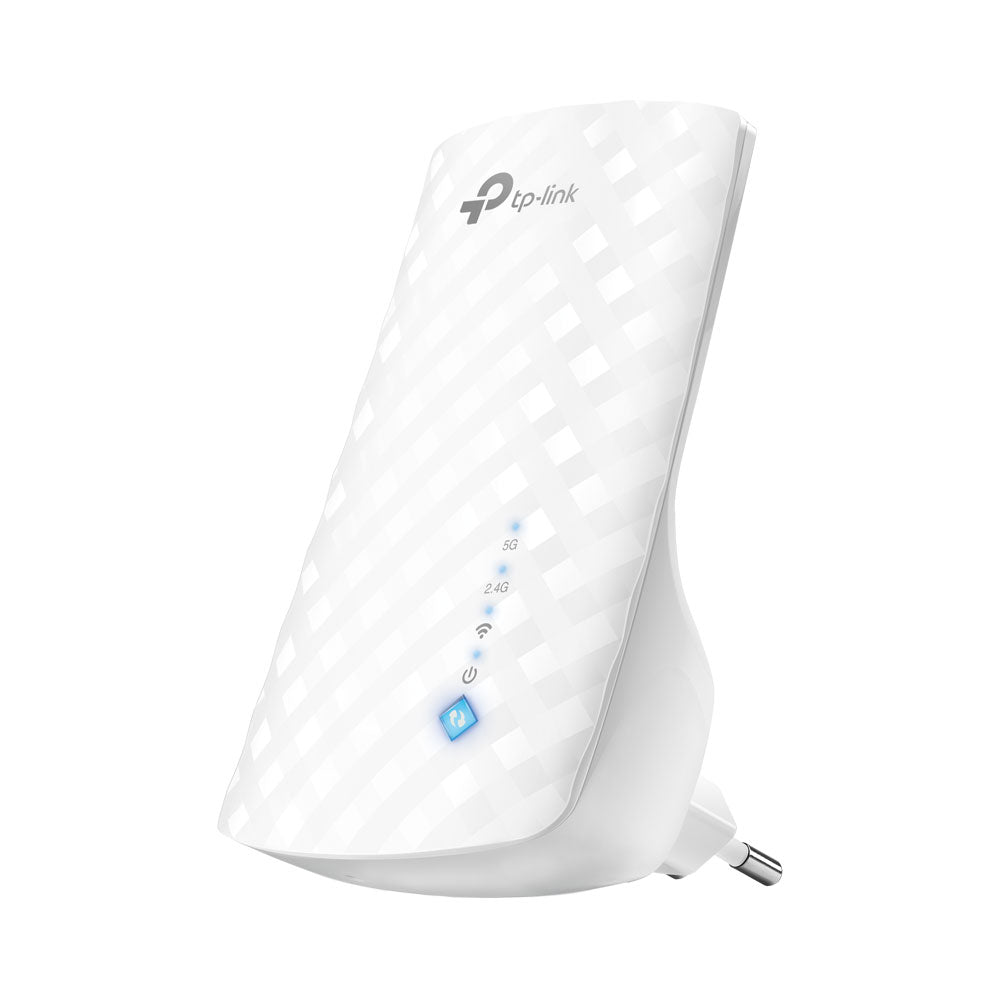

• Package ContentsRange Extender RE190
• Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
• Environment: Operating Temperature: 0°C ~ +40°C
• Storage Temperature: -40°C ~ +70°C
• Operating Humidity: 10% ~ 90%RH
• Storage Humidity: 5% ~ 90%RH
