FEATURES

• Creates a Mesh Network - By connecting to a TP-Link OneMesh router for seamless whole-home coverage
• Gigabit Ethernet Port - Provides faster-wired connections to smart TVs, computers and gaming consoles
• Intelligent Signal Light - Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength • in the current placement
• AP Mode - Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
• Ultimate Compatibility - Extends the range of any Wi-Fi router or wireless access point

SPECIFICATIONS

WORKING MODES
• Range Extender
• Access Point

PORTS
• 1× Gigabit Ethernet Port

BUTTON
• WPS Button
• Reset Button

INPUT POWER
• 100~240V 50/60Hz

POWER CONSUMPTION
• 23W

DIMENSIONS (W × D × H)
• 106.6 × 39.7 × 348.2mm

ANTENNA
• 4× External Antennas

WIRELESS STANDARDS
• IEEE 802.11ax (6.0GHz)
• IEEE 802.11a/n/ac/ax (5.0GHz)
• IEEE 802.11b/g/n/ax (2.4GHz)

FREQUENCY
• 2.4GHz
• 5.0GHz
• 6.0GHz

SIGNAL RATE
• up to 574Mbps (2.4GHz)
• up to 2,402Mbps (5.0GHz)
• up to 2,402Mbps (6.0GHz)

RECEPTION SENSITIVITY
6.0GHz
• 11ax HE20 MCS0: -92dBm
• 11ax HE20 MCS11: -61dBm
• 11ax HE40 MCS0: -89dBm
• 11ax HE40 MCS11: -58dBm
• 11ax HE80 MCS0: -86dBm
• 11ax HE80 MCS11: -55dBm
• 11ax HE160 MCS0: -83dBm
• 11ax HE160 MCS11: -52dBm
5.0GHz
• 11ax HE20 MCS0: -93dBm
• 11ax HE20 MCS11: -62dBm
• 11ax HE40 MCS0: -90dBm
• 11ax HE40 MCS11: -59dBm
• 11ax HE80 MCS0: -87dBm
• 11ax HE80 MCS11: -56dBm
• 11ax HE160 MCS0: -84dBm
• 11ax HE160 MCS11: -53dBm
2.4GHz
• 11ax HE20 MCS0: -95dBm
• 11ax HE20 MCS11: -64dBm
• 11ax HE40 MCS0: -92dBm
• 11ax HE40 MCS11: -62dBm

WIRELESS FUNCTIONS
• LED Control
• Access Control
• Power Schedule
• Wi-Fi Coverage

WIRELESS SECURITY
• 64/128-bit WEP
• WPA/WPA-PSK/WPA2-PSK
• WPA3

TRANSMISSION POWER
• FCC: <30dBm (2.4GHz)
• FCC: <30dBm (5.0GHz)
• FCC: <30dBm (6.0GHz)

MESH TECHNOLOGY
• EasyMesh Compatible

CERTIFICATIONS
• FCC
• RoHS

PACKAGE CONTENTS

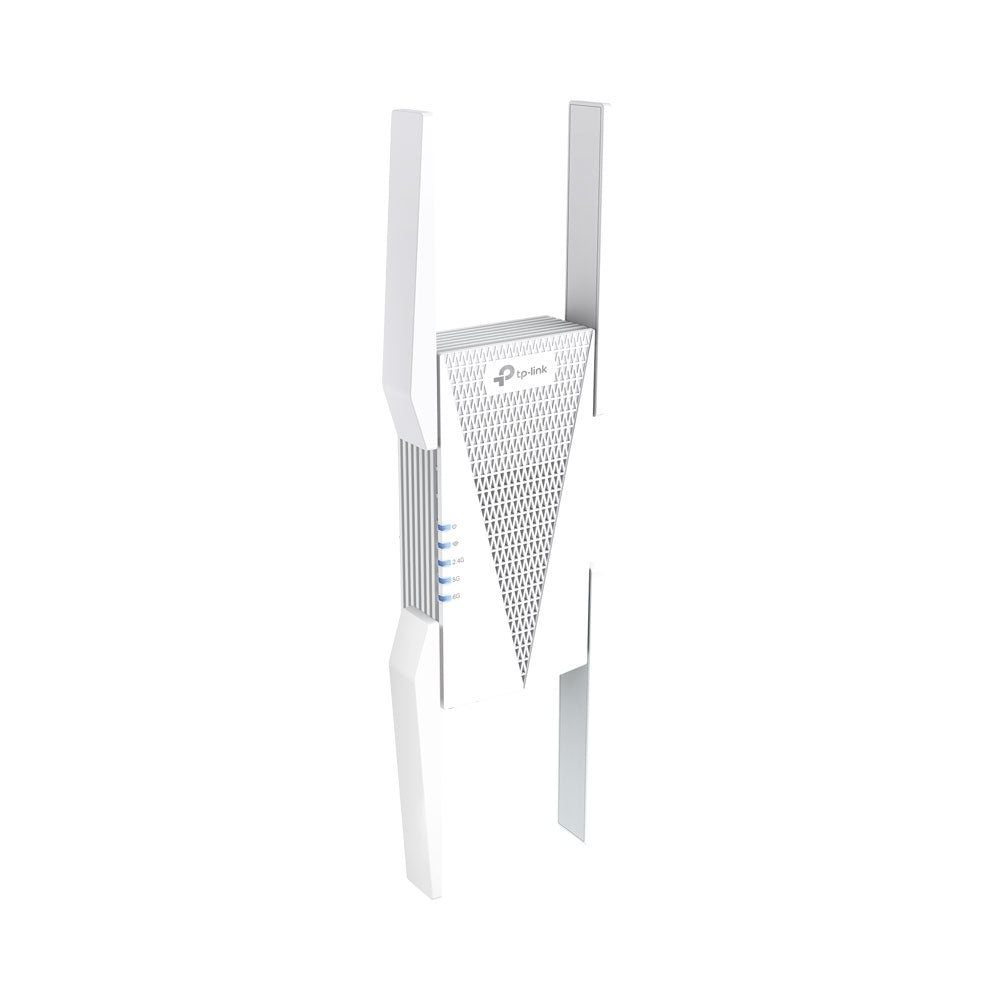

• Wi-Fi Range Extender RE815XE
• Quick Installation Guide

SYSTEM REQUIREMENTS
• Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10
• macOS
• NetWare
• UNIX
• Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser

ENVIRONMENT
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing
