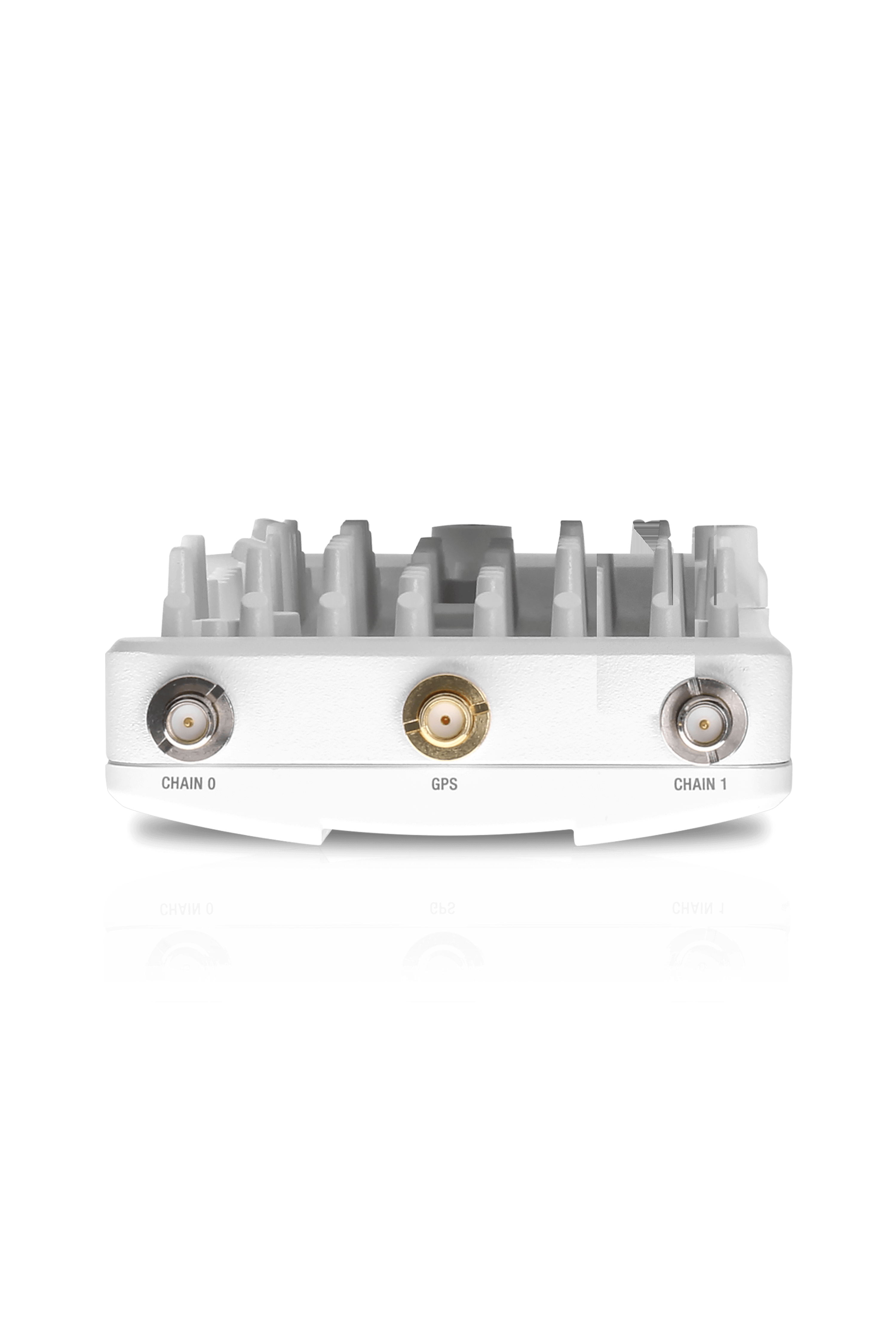

The Ubiquiti airFiber AF-5XHD-U is a high-performance 5 GHz point-to-point (PtP) radio built for outdoor wireless backhaul applications. Operating in the 4.8–6.2 GHz band, it delivers real-world throughput exceeding 1 Gbps and supports link distances over 100 km. Powered by Ubiquiti’s LTU technology, it features adaptive modulation up to 1024QAM, programmable channel bandwidths from 10 to 100 MHz, and GPS synchronisation for improved spectral efficiency and reduced interference. It includes dual Gigabit Ethernet ports, Bluetooth v4.0 for wireless configuration, and an external GPS antenna with a magnetic base. The IP67-rated enclosure ensures reliable performance in harsh outdoor conditions, with an operating temperature range of -40°C to 55°C. Its compact design is compatible with airFiber X and Rocket mounts, offering flexible installation options for WISPs and enterprise networks needing long-range, high-capacity links.
Key features:
Operates in the 4.8–6.2 GHz band with throughput over 1 Gbps
Supports PtP links exceeding 100 km
LTU technology with adaptive modulation up to 1024QAM
Channel bandwidths from 10 to 100 MHz
GPS synchronisation for interference mitigation and spectral efficiency

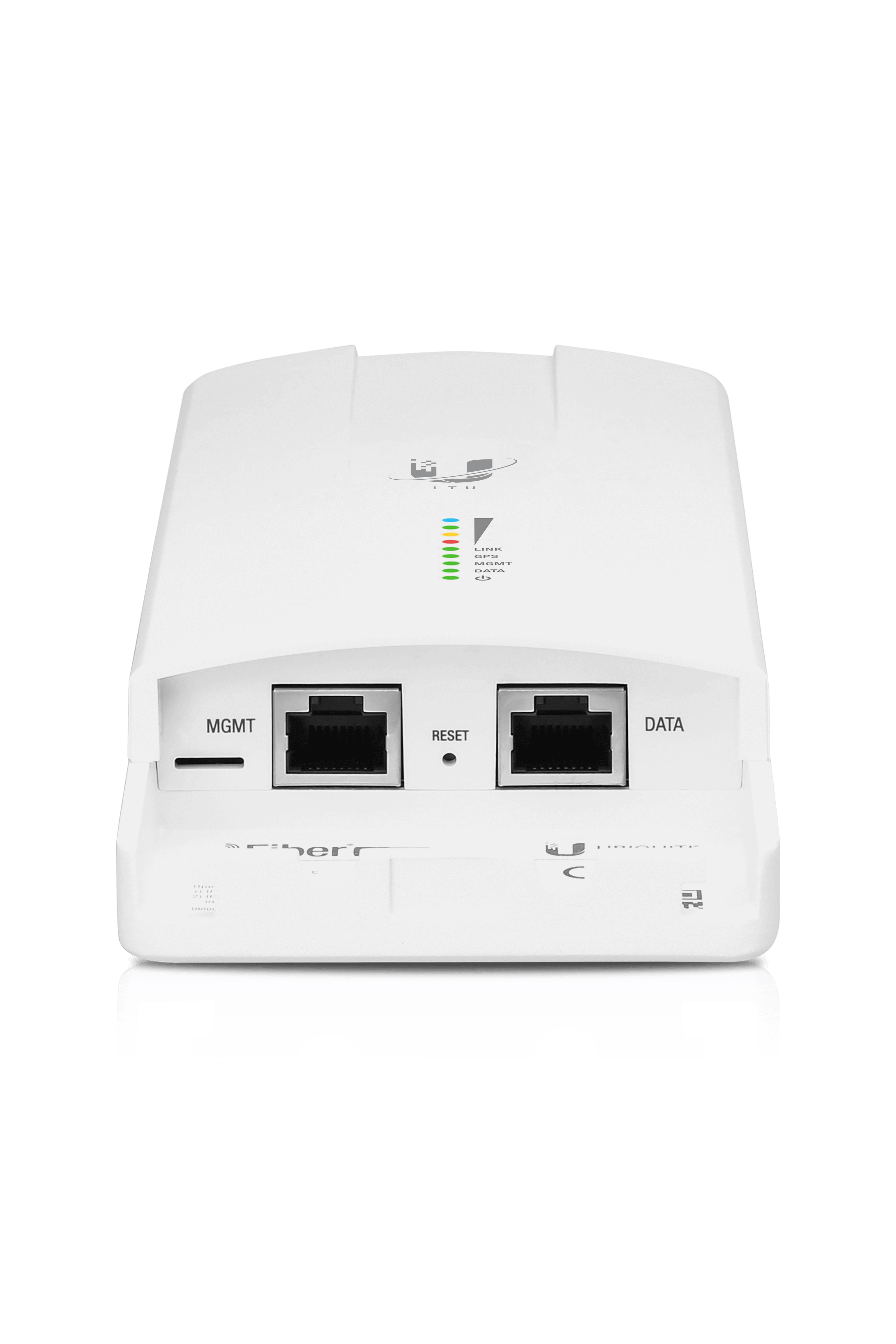

Dual Gigabit Ethernet ports and Bluetooth v4.0 for wireless configuration
Includes external GPS antenna with magnetic base

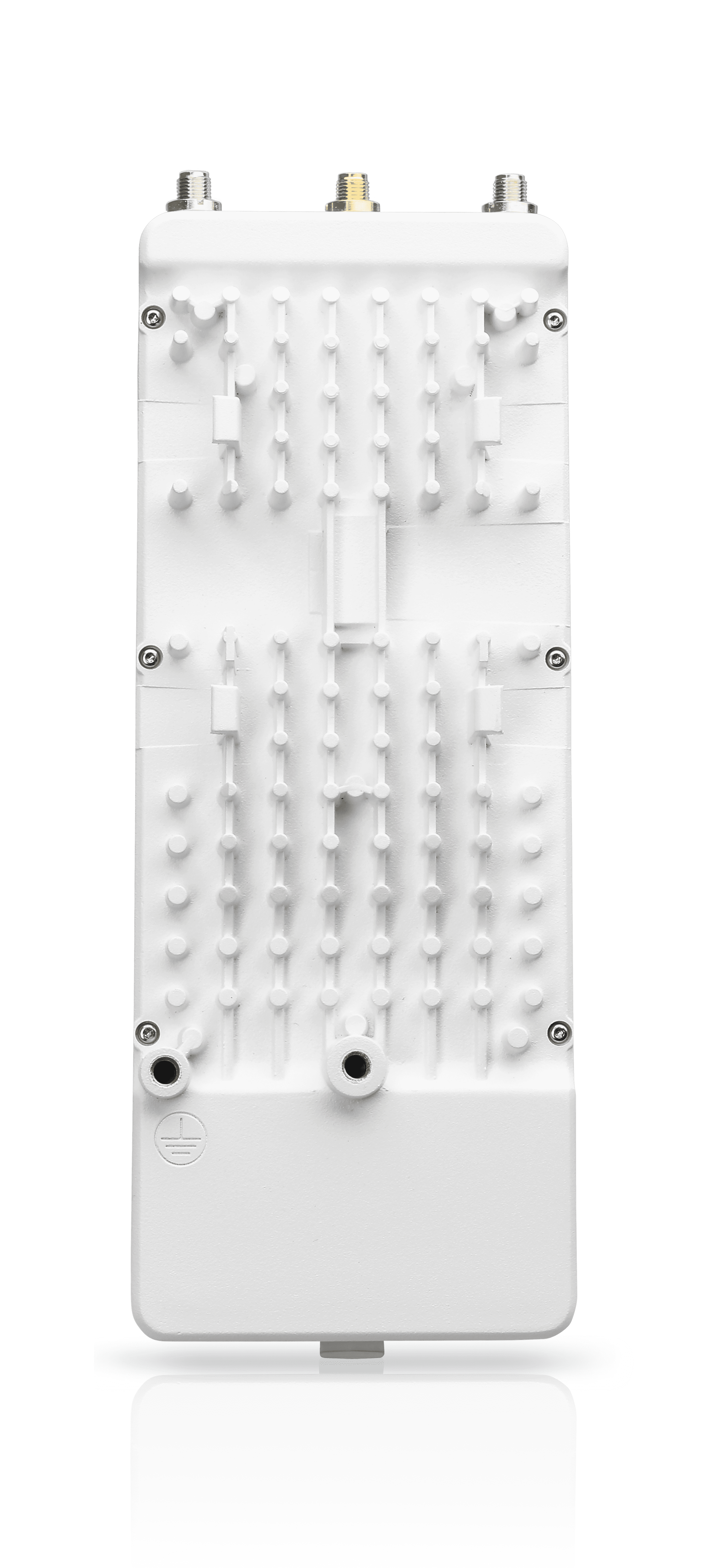

IP67-rated enclosure for harsh environments (-40°C to 55°C)
Compatible with airFiber X and Rocket mounts for flexible deployment
Brand
Ubiquiti
Title
Ubiquiti UISP airFiber 5XHD PtP 5GHz Radio Includes POE Injector | AF-5XHD-UBAF-AF-5XHD
