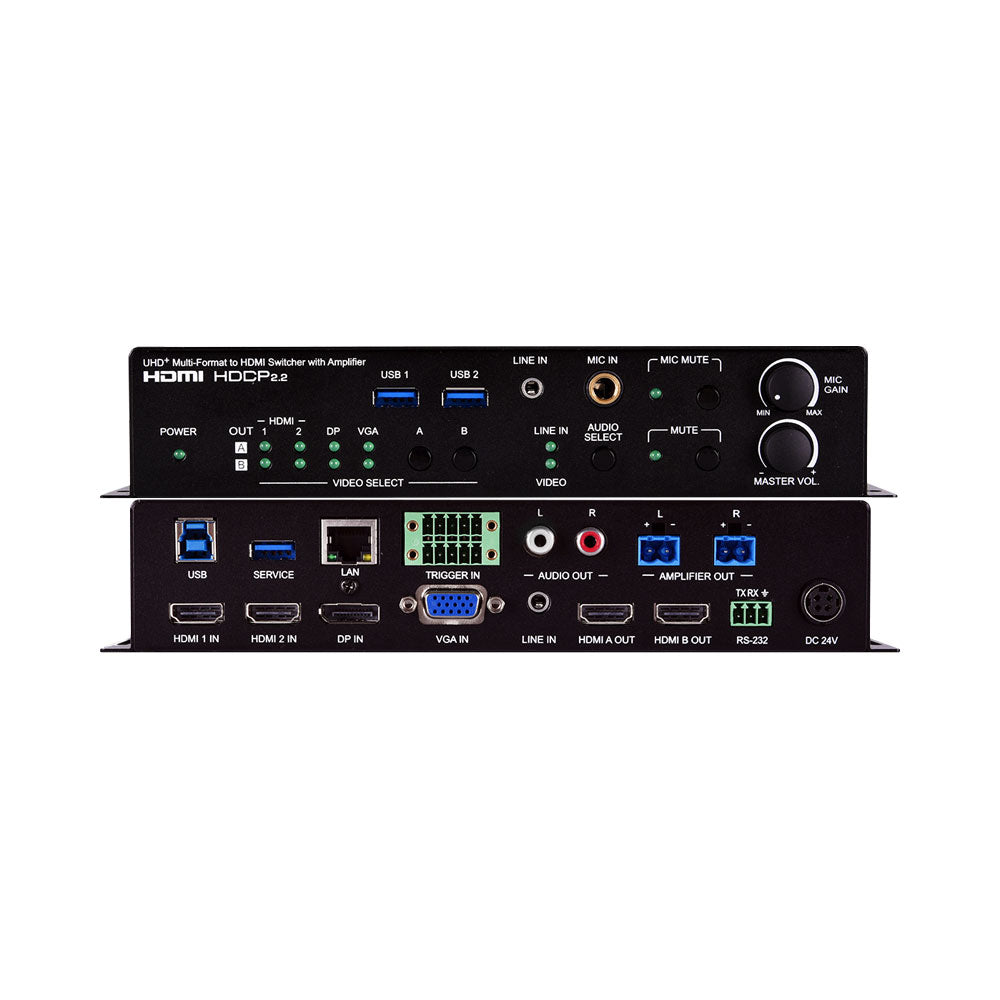

CYP CPLUS-V2030 4K MULTI-FORMAT TO HDMI SWITCH WITH AMPLIFIER - CNV-CPLUS-V2030
CYP CPLUS-V2030 4K MULTI-FORMAT TO HDMI SWITCH WITH AMPLIFIER - CNV-CPLUS-V2030

CYP CPLUS-V2030 4K MULTI-FORMAT TO HDMI SWITCH WITH AMPLIFIER - CNV-CPLUS-V2030

R 7,857.64

R 8,389.36

⭐ YOU SAVE R 531.72 ⭐
NOTE:
Walk-in customers are advised to check stock availability before visiting our showroom.
011 262 0135
Brand: Cypress
SKU: CNV-CPLUS-V2030
Free delivery is subject to exclusions and does not apply to heavy, bulky, or oversized items.
FREE DELIVERY : Orders Above R2000
WHEN WILL I GET MY ITEMS DELIVERED?
Delivery : 2 – 7 Working Days
Subject to Stock Availability
Kindly send your proof of payment to sales@chavda.com to complete your order.
Images are for illustration purposes only. International fee estimates are indicative and may differ.

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay
CYP CPLUS-V2030 4K MULTI-FORMAT TO HDMI SWITCH WITH AMPLIFIER - CNV-CPLUS-V2030

FEATURES

• Multi-Format Input Support - HDMI, VGA and DisplayPort inputs for maximum compatibility
• Dual HDMI Outputs - Simultaneous output to two displays with flexible routing
• 4K Video Support - Supports up to 4K @60Hz (4:4:4, 8-bit) on HDMI and DisplayPort
• Integrated Audio Amplifier - 2-channel Class-D amplifier with 20W per channel output
• Advanced Audio Processing - DSP mixing, microphone input, ducking and volume control
• Microphone Integration - 6.35mm input with optional 48V phantom power support
• Audio Matrix Mixing - Flexible audio routing between inputs and outputs
• HDMI Audio Pass-Through - Supports LPCM, Bitstream and HD Bitstream formats
• Event-Based Control - Trigger input and RS-232 for automation and system integration
• Side-by-Side Display Mode - Dual HDMI outputs can drive two displays simultaneously
• Multiple Control Options - RS232, LAN, Web GUI and front panel operation

SPECIFICATIONS

• Input Ports:
2× HDMI
1× VGA
1× DisplayPort
2× Unbalanced Stereo (3.5mm)
1× Microphone (6.35mm)

• Output Ports:
2× HDMI
1× Stereo (2× RCA)
1× Stereo (2-Pin Terminal Block)

• Control Ports:
1× RS232 (3-Pin Terminal Block)
1× Trigger (10-Pin Terminal Block)
1× LAN (RJ45)

• USB Ports:
1× USB3.0 (Type-A)
1× USB3.0 (Type-B)
1× USB3.0 (Type-A, Service)

• HDMI Compliance: HDMI 2.0
• HDCP Compliance: 2.x
• Input Signal Type: 4096 × 2160 @60Hz 8-bit YUV 4:4:4
• Output Signal Type: 4096 × 2160 @60Hz 8-bit YUV 4:4:4

• Maximum Input Resolution:
HDMI: 4096 × 2160 @60Hz
DisplayPort: 4096 × 2160 @60Hz
VGA: 1920 × 1200 @60Hz

• Maximum Output Resolution:
HDMI: 4096 × 2160 @60Hz

• Audio Output: LPCM 8-Channel, HD Bitstream
• Line-In: Max. 2Vrms, 10kΩ, Unbalanced
• Power Supply: 24V 3.75A DC
• Power Consumption: 43W (Without Amplifier)
• Chassis Material: Steel
• Colour: Black
• Dimensions (W x H x D): 231.5 × 44 × 171mm
• Weight: 1.2kg

Brand
Cypress
Title
CYP CPLUS-V2030 4K MULTI-FORMAT TO HDMI SWITCH WITH AMPLIFIER - CNV-CPLUS-V2030

















Recommended For You

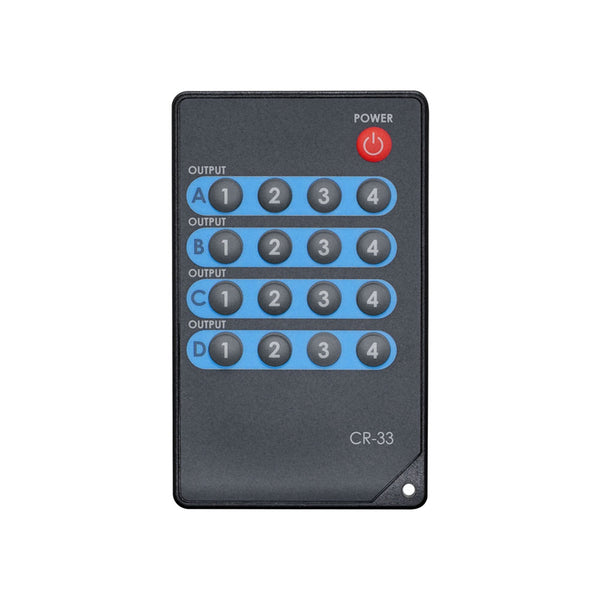

CYP REMOTE CONTROL FOR MATRIX SWITCH (CR-33) - CYP-CR-33

SKU: CYP-CR-33
CYP REMOTE CONTROL FOR MATRIX SWITCH (CR-33) - CYP-CR-33

R 332.50

R 355.00

CYP REMOTE CONRTOLLER CR-102 - CYP-CR-102

SKU: CYP-CR-102
CYP REMOTE CONRTOLLER CR-102 - CYP-CR-102

R 277.97

R 296.78

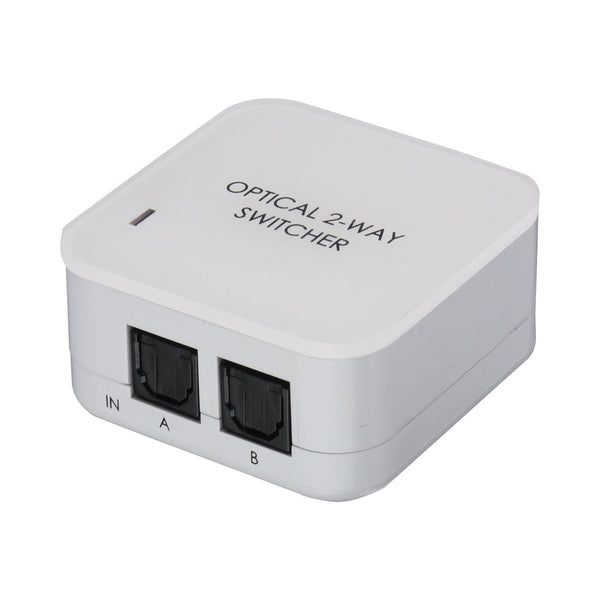

CYP 2IN1OUT DIGI TOSLINK AUDIO SWITCH - CNV-DT-21

SKU: CNV-DT-21
CYP 2IN1OUT DIGI TOSLINK AUDIO SWITCH - CNV-DT-21

R 1,376.55

R 1,469.70

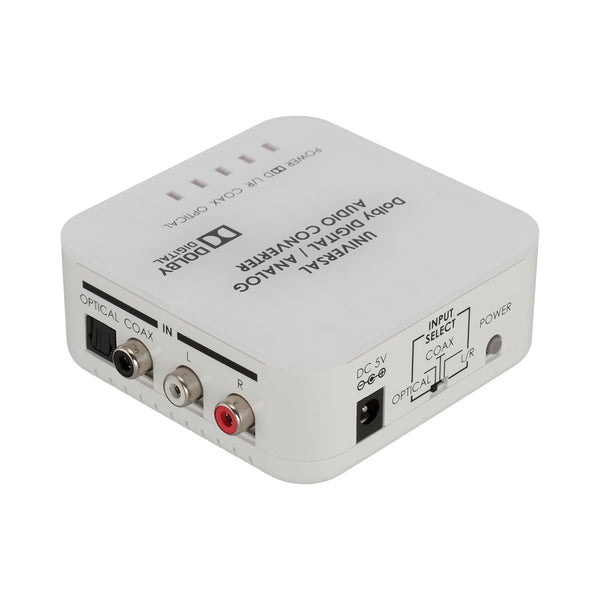

TOSLINK, COAX, RCA AUDIO CONVERTER, DIGITAL DECODE - CNV-DCT-9D

SKU: CNV-DCT-9D
TOSLINK, COAX, RCA AUDIO CONVERTER, DIGITAL DECODE - CNV-DCT-9D

R 3,033.73

R 3,239.02

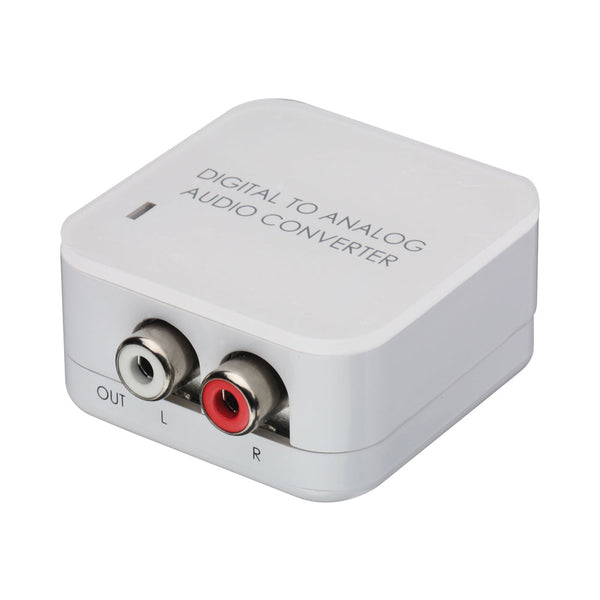

TOSLINK/OPTICAL (IN) TO RCA ANALOGUE AUD(OUT) - CNV-DCT-3

SKU: CNV-DCT-3
TOSLINK/OPTICAL (IN) TO RCA ANALOGUE AUD(OUT) - CNV-DCT-3

R 1,505.56

R 1,607.44

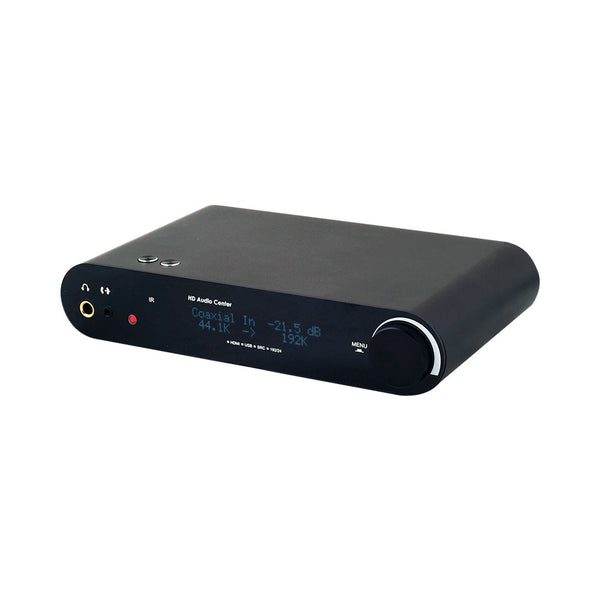

CYP AUDIO CENTER,HDMI,TOS,COAX,RCA,XLR,USB,3.5 AUD - CNV-DCT-21
