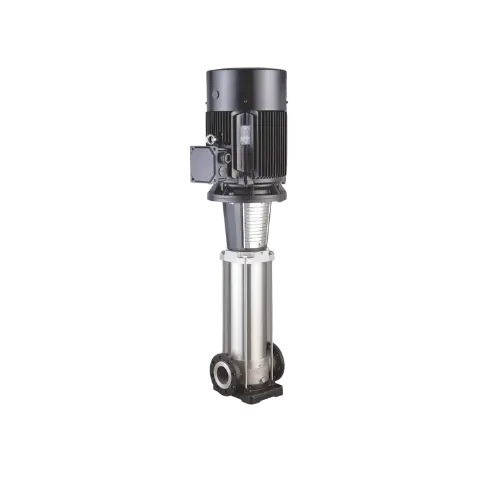

Multistage Vertical inline pumps are single or multistage type supplied with radial or mixed flow impeller for higher head and flow requirement. These pumps are available in different material of construction and all wetted parts are made of corrosion resistant stainless steel material. A preassembled cartridge mechanical seal is used for easy maintenance without disassembling the pump. The inline design simplifies pipework and offers great savings in floor space compared to Horizontal pumps. These pumps are ideally suitable for high pressure and constant pressure applications. Inline pumps are offered as pump end or pump set with TEFC/IEC single phase motors up to 2.2kW and three phase premium efficiency motors for range of pumps.
General Specifications
| Flange Standard | DN 2501 |
| Head | upto 320m |
| Maximum Flow | upto 280m³/h |
| Speed | 2900RPM |
| Impeller Type | Enclosed Radial or Mixed |
| Inlet x Outlet Size | 25 to 150mm |
| Power | 0.37 kW to 110kW |
| Liquid Temperature | Standard :-10°C to 90°C, Optional : –10°C to 120°C |
| Shaft Seal | Mechanical seal |
| Material of Construction (MOC) | Cast Iron & Stainless steel |
| Maximum working Pressure | upto 32 bar |
Features
- High Efficiency
- Wide Hydraulic ranges
- Stainless steel wetted parts
- Space Saving compact deisgn
- Thermal protection in single phase motor
- Pump with DIN Flanges
Application
- RO system
- High pressure application in industries
- Boiler feed water
- Pressure Boosting system
- Utility water supply in buildings and industries
- Agriculture
- Jockey application in fire fighting systems
- Industrial washing and cleaning system
- Agriculture
- Hot water transfer and circulation
